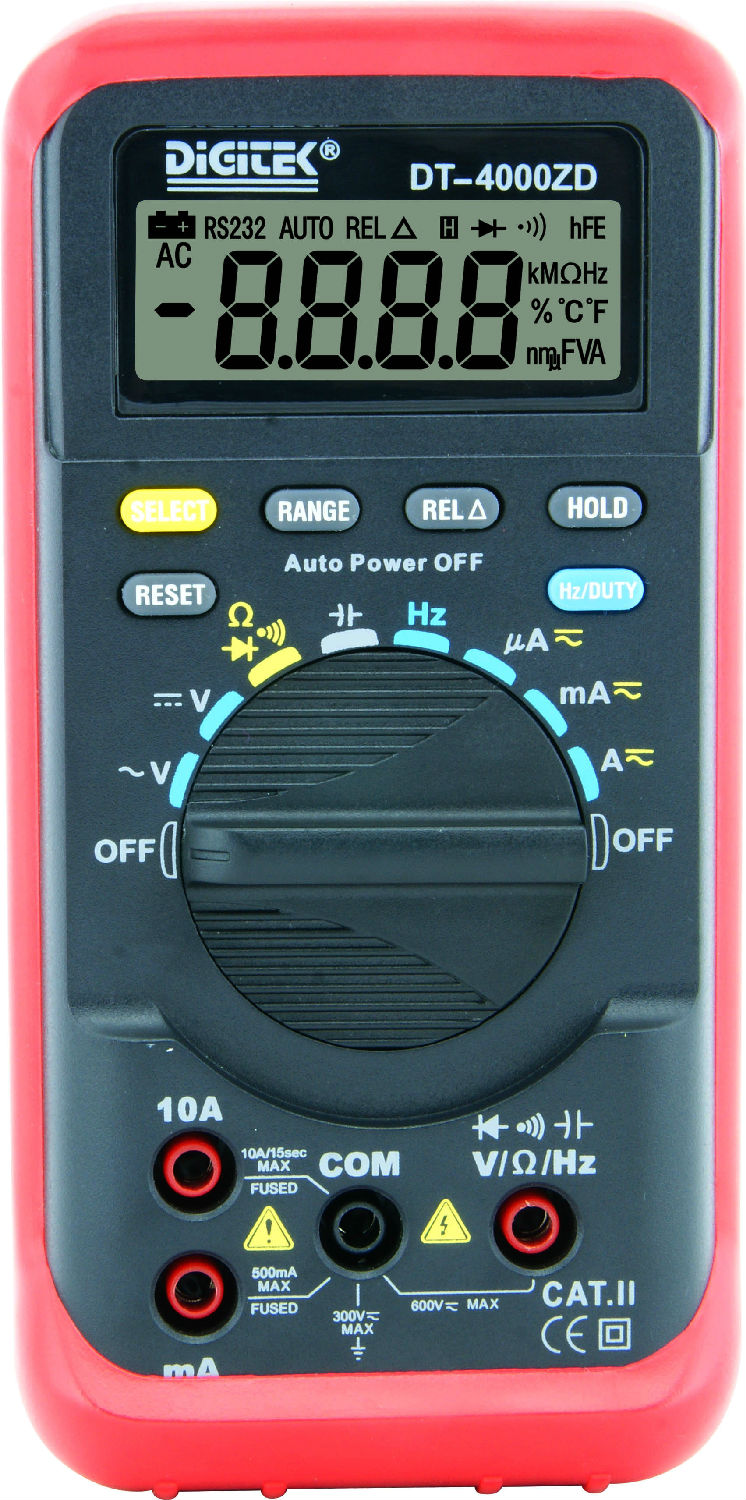

Digital Multimeter
Production Lead Time:
30 day(s)
Model No.:
DT-4000ZD
Brand:
Digitek
Colour:
Black+Red
Measuring Range:
0-600V
Operating Temperature:
0-40C
Description
Contact Supplier
Description
- Feature:
- Display: Max. 4000 Counts Auto/Manual Range Diode Check Continuity Buzzer Relative Measurement Data Hold Auto Power Off , Can Disable
- DC Voltage: 400mV/4/40/400V ±0.5%, 600V ±0.8%
- AC Voltage: 4/40/400V /650V ±1.0%
- DC Current: 400/4000µA ±1.5%, 40/400mA ±1.5%, 4A/10A ±2.0%
- AC Current: 400/4000µA ±2.0%, 40/400mA ±2.0%, 4A/10A ±2.5%
- Resistance:400Ω/4/40/400kΩ ±1.0%,4MΩ/40MΩ ±2.0%
- Capacitance: 40nF ±5.0%, 400nF/4µF/40µF ±3.0%, 400/4000µF ±20.0%
- Frequency: 1Hz-10MHz ±0.1% * Duty Cycle: 0.1%--99.9% ±2.0%
- Dimension:165(H)x83(W)x37(D) mm
