3-3/4 - 6000 data points

• Large digital LCD display, enhance the readability

In the 61 period of rapid bar graph display similar to the analog pointer for rapid change or unstable signal display
Not measuring up to 15A AC and DC current

• 0.01nF ~ 3999 F super wide range capacitance measurement
• Test with AC and DC voltage, DC current, resistance, capacitance, frequency, on-off, diode detection and percentage of the duty ratio
• Data locking is used for observing and recording data
• Through the flexible current clamp head and digital meter combination can measure up to 3000A AC current
• Can be equipped with a variety of clamp probe is used to measure the DC current and micro current (optional)

The HV probe can measure - matching 30KV DC high voltage

• On-off buzzer and LED indicator light double tips
• Standard gold pen, anti-corrosion, anti poor contact, improve the measurement accuracy
• For misplug proof safety helmet 6-15A current test terminal, improve safety

Automatic power saving mode (16 minutes) can be canceled, extended battery life
Leather and board - use of flame retardant materials

• Leather wall hanging lead frame
• Sampling rate: 3 times per second, 30 times / sec (bar)
• Safety specifications: EN61010-1.CAT.III/CAT.II DC1000V AC750V

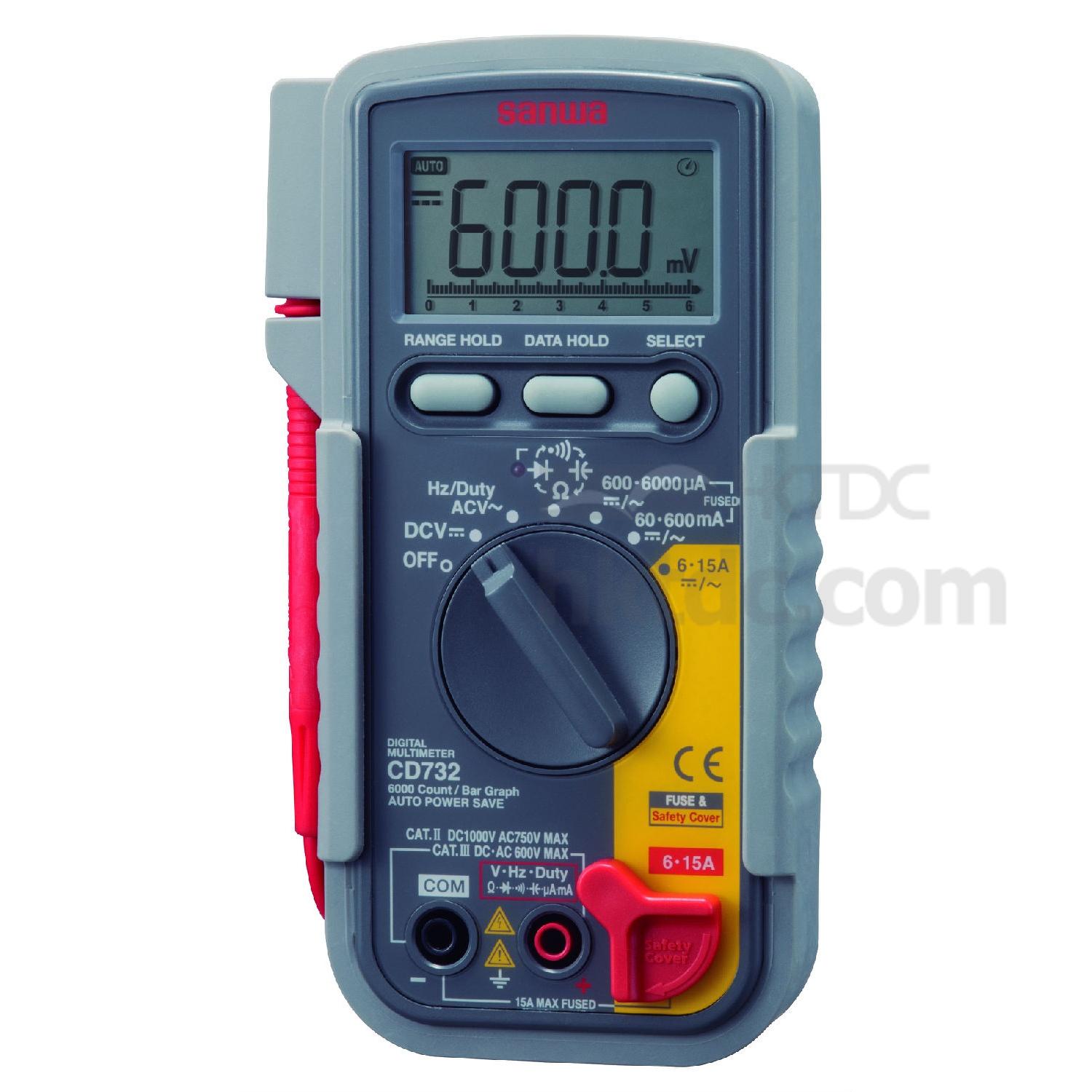

CD732
