Digital Parking Assistant
Production Lead Time:
7 day(s)
Model No.:
DF-7270311
Brand:
VEISE
Type of Payment:
T/T
Minimum Order Quantity:
50 piece(s)
Description
Contact Supplier
Description

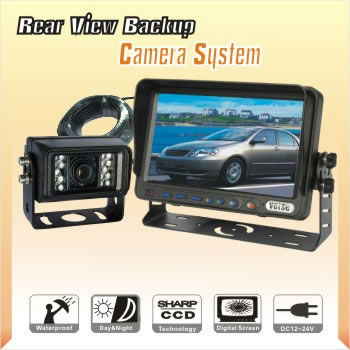

- Reversing camera system free operating voltage: DC11-32V.
- Suitable for trailer, car, truck, bus, SUV, motor home, boat and farm CCTV camera system.
- 7 inches TFT LCD monitor with sun visor, built-in day/night sensor for illumination of the control knobs.
- It features an on-screen menu for all settings: normal/mirror view, reversing image delay, priority of reverse camera, automatic switch on (by reverse gear and or by direction lights).
- Reversing camera built in IR LED's water resistance: IP66.
- Image type: 1/3 color Sharp CCD.
- Horizontal resolution: 420 TV lines.
- Effective pixel: NTSC: 510 (H) x 492 (V), PAL: 500 (H) x 582 (V).
- Usable illumination: 0 lux (built in 18pcs IR LED's for picture support in the dark).
- Free viewing angle: 130°.
- Waterproof: IP66.
- Shockproof: 10G.
- Video Output: 1.0Vp-p 75Ω.
- Automatic heating below +10°C.
- Power supply: DC12V from reversing monitor.
- Dimensions: 69 (W) x 43 (H) x 38 (D) mm (without mounting).
- 7" digital TFT LCD color monitor with removable sun visor.
- OSD menu separately set each camera trigger priority.
- OSD menu separately set each camera reversing image delay time: 0-30.
- OSD menu separately set each camera mirror/normal image.
- Manual and automatic switch display mode.
- Color system: PAL/NTSC (auto).
- Display resolution: 1440 (H) x 234 (V) dot.
- Support tow camera inputs: 1.0Vp-p 75Ω.
- Wide view angle (CR>10): (up/down): 45/65 (left/right): 65/65.
- Brightness (cd/m²): 300.
- Contrast ratio: 500:1.
- Back-light: single LED.
- Operating temperature: -20℃ to +70℃.
- Storage temperature: -30℃ to +80℃.
- Free operating voltage DC11-32V.
- External dimensions: L x W x T (180 x 118 x 38) mm (without mounting).
- Weight approx: 379g.
- Product accessories: monitor bracket, 15m cable, electrical connecting cable solution, auto cigarette lighter.
