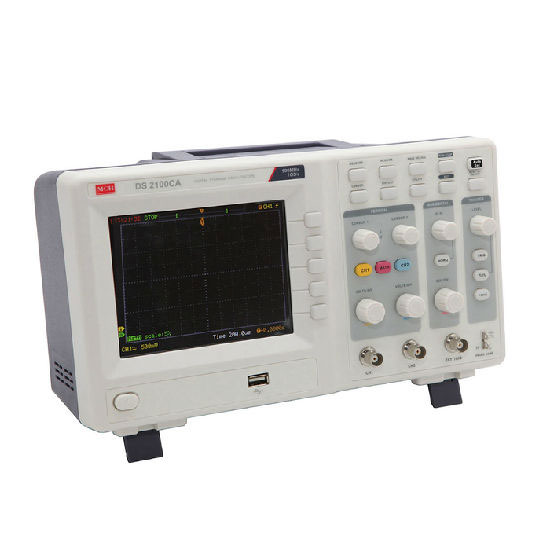

This digital storage oscilloscope stores and analyses the signal digitally rather than using analogue techniques. It boasts advanced trigger, storage, display and measurement features. The oscilloscope is designed with a user-friendly interface for easy operation.

• Two channels.
• Bandwidth: 100MHz.
• Rising time: 3.5n.
• Time base: 1n to 50s.
• Real time sample rate: 1GSa/an equivalent sample rate: 50GSa/s.
• Input impedance 1MΩ/13pF.
• Input coupling: DC, AC and GND.
• Trigger edge: video, pulse and delay.
• Acquisition modes: auto/normal/single.
• Trigger sources: CH1, CH2, EXT, EXT/5 and EXT (50Ω).
• Horizontal accuracy: ± 0.01%.
• Vertical sensitivity: 2mV to 5V.
• Vertical resolution: 8-bit.
• Max. input voltage: 400V (DC + AC peak), 5Vrms @50Ω.
• Interface: USB port.
• Accessories: probe × 2, power cord x 1, user's manual x 1.
• Weight: 5kg.
