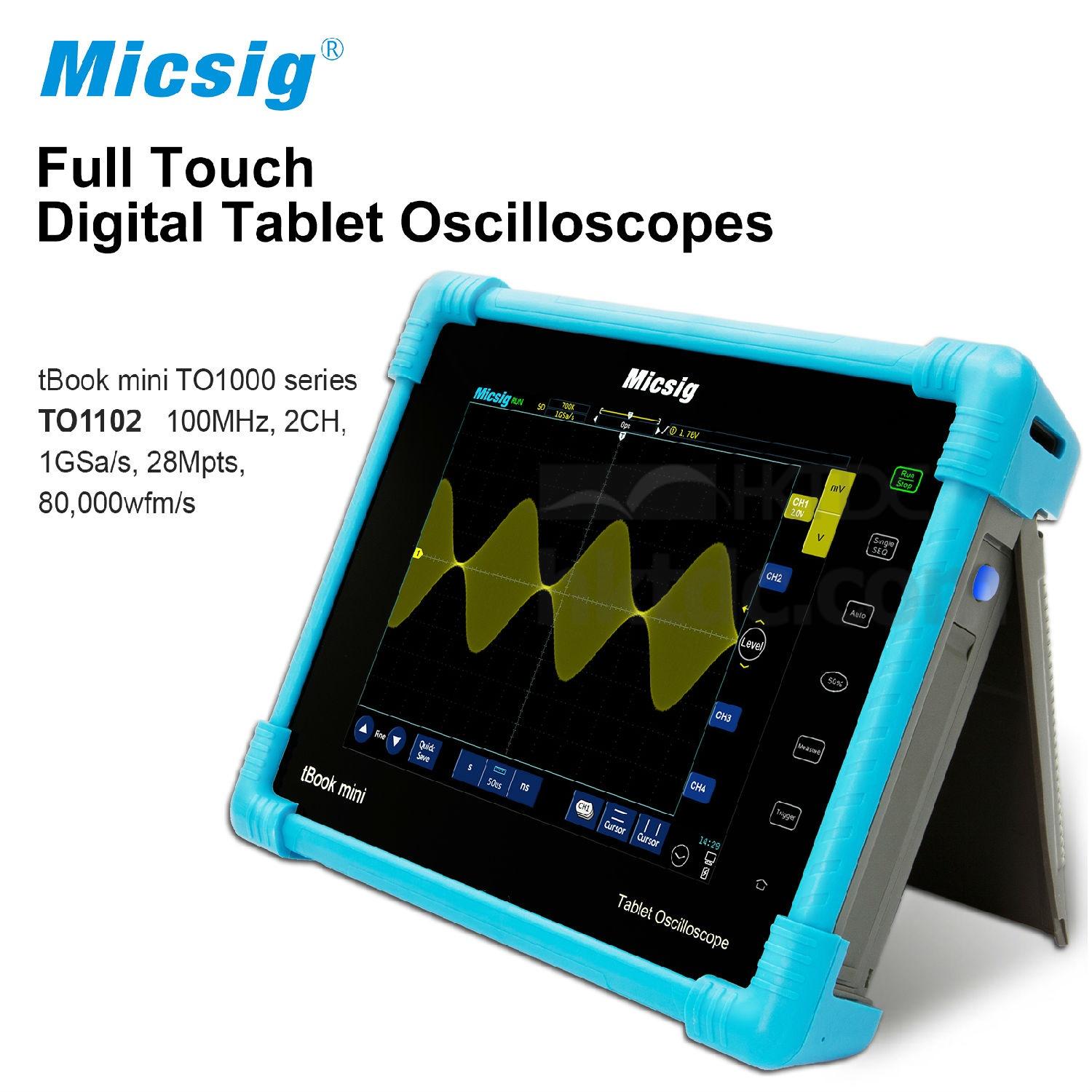

Model:
•TO1102
•TO1104
Analog channels:
•2
•4
Bandwidth:
•100MHz
Real time sample rate:
•1GSa/S(single channel)
Memory depth:
•28Mpts(single channel)
Rise time:
•≤3.5ns
Max waveform capture rate:
•80,000wfm/s
Input impedance:
•1MΩ±1%||14.5pF±0.5pF
Input coupling:
•DC,AC,GND
Bandwidth limitation:
•20MHz、High pass、low pass
Vertical resolution:
•8 bits
DC gain accuracy:
•≤2%
Vertical scale:
•1mV/div~5V/div
Channel to channel:
•≥40dB
Maximum input voltage:
•CAT I 300Vrms
Time base range:
•2ns/div~1000s/div
Time base delay range:
•-14div~14kS
Clock skew:
•≤±2ppm/Year
Time based accuracy:
•±20ppm
Sampling mode:
•Normal,Average,Peak,Envelop
Trigger type:
•Edge,Pulse Width,Logic,Video,Dwart PW,Time Out N,N Edge,Slope
Cursor types:
•Horizontal cursor,Vertical cursor,Crossing cursor
Math function:
•FFT(+, -, *, /, FFT)
Automatic Measurements:
•Period, Frequency, Rise Time, Fall Time, Delay, Positive duty Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Burst Width, Positive Overshoot, Negative Overshoot, Phase, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS.
I/O Port:
•Wifi,LAN,HDMI,USB Host,USBDevice,GND,DCPower,Pass/Fail out ,Trigger out
Display:
•8’’ Industry TFT LCD screen, resolution: 800*600 pixels, 14*10 grids
Operation:
•Touchable capacitive screen
Power:
•12V DC
Dimensions:
•250*200*55mm
