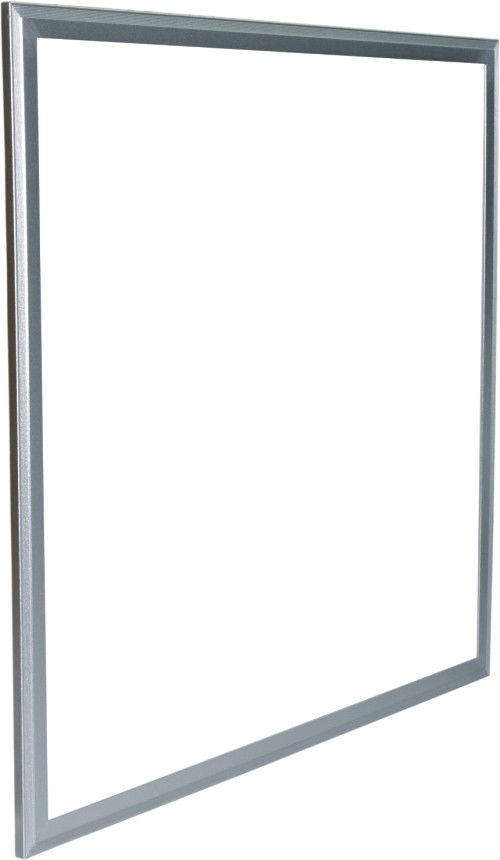

Dimmable LED Panel Lights
Share this page
Production Lead Time:
7 day(s)
Model No.:
JNL-PD66-48W
Brand:
JNL
Colour:
White, Silver
Size:
600 x 600 x 9mm
Voltage (V):
110-240V AC
Certification:
CE, FCC, RoHS, SAA
Wattage (W):
48W
Warranty:
3 year
Light Source:
LED Bulb
Body Material:
Aluminum
Is Dimmable:
Yes
Dimension (Length x Width x Height):
600 x 600 x 9 millimeter
Waterproof:
No
Style:
Modern
Power Source:
AC
Including Bulbs:
Yes
Use:
Commercial lights
Customized:
Yes
Description
Contact Supplier
Description
  • 型号Model:JNL-PD66-48W
  • 光源Lighting source:SMD2835 LED

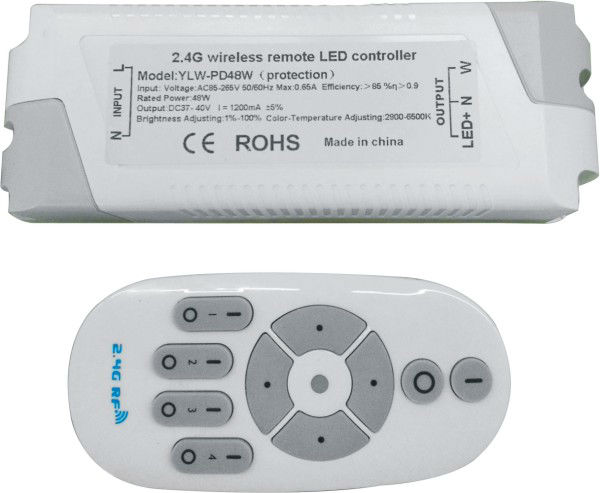

  • 调光Control:2.4GRF遥控2.4G RF communication mode
  • 亮度调节Dimming:1%-100%
  • 灯珠数量LED QTY:360 pcs
  • 总功率Power consumption:48W
  • 电源输入电压Input voltage (Driver):110-240VAC /50-60HZ
  • 灯具输入电压Input voltage (Lighting) :30~40VDC
  • 输出电流Constant current:1200mA
  • 电源效率Efficiency:≥85%
  • 电源功率因数PF:≥0.95
  • 光源平均寿命LED Lifespan:≥ 50000H
  • 色温调节CCT change:from2700K to 6500K
  • 光通量Luminous:4080lm(±5%)
  • 发光效率 Luminescence efficiency:85 lm/w
  • 照射角度Bean-angle :120 °
  • 显色指数Ra :Ra ≥80
  • 灯壳温升Temperature rising:< 20 ℃
  • 工作温度Operation temperature :-40~+50℃
  • 相对湿度Relative humidity:10%-80%RH
  • 灯体材料Fixture Material:6030 Oxidized Aluminum + High Quality PMMA (Acrylic)+PS diffuser
  • 6030氧化铝+亚克力导光板+PS扩散板
  • 尺寸Dimension:595 x 595 x 9mm
  • 净重Net Weight (includes driver):3.4KG
  • 防护等级Protection grade:IP44
  • 电气绝缘等级Insulation class:CLASS II
  • 环保Environmental:
  • All materials meet with RoHS compliance / 所有材料符合RoHS环保标准
  • 通过认证Certificate:CE,  RoHS, FCC,  SAA
