Dip Switch - SMT / DM, DMR
Production Lead Time:
20 day(s)
Shipping Method:
Based on customers
Brand:
SALECOM
Customised:
Yes
Model No.:
DM, DMR
Description
Contact Supplier
Description

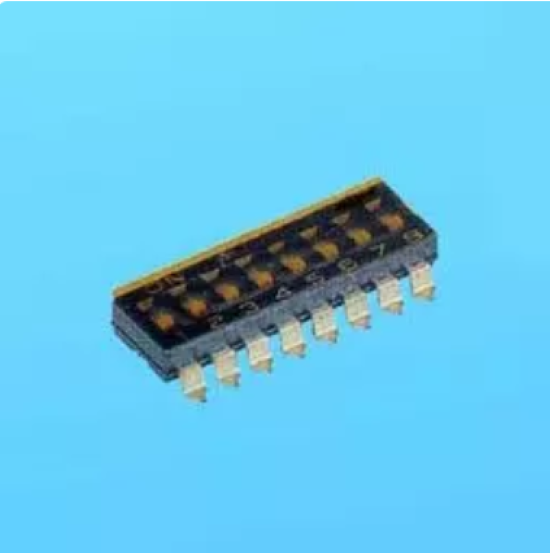

Dip Switch - SMT
IC type Dip Switches
SMT type with low profile and No. of position 1 ~ 12. Gold contact for high reliability. Top tape type for washing process. This switch is perfect for Industrial control, Instrumentation, Security equipment, Amplifier audio.
Specification
- Contact Rating:
25mA @24 VDC (switching Rating)
100mA @50VDC (non-switching Rating) - Electrical Life: 2000 operations min. @ 24VDC, 25mA
- Contact Resistance: 50 mΩ min. initial
- Insulation Resistance: 100 MΩ min.
- Dielectric Strength: 500 V AC /1 min. at 500VDC
- Operation Force: 1000 gf max
- Storage Temperature: -40°C to 85°C
- Circuit: SPST
Materials
- COVER: UL94V-0 PPS, Thermoplastic (Black)
- CASE: UL94V-0 PPS, Thermoplastic (Black)
- ACTUATOR: UL94V-0 Nylon, Thermoplastic (white)
- CONTACT PLATING: Gold plating over nickel
- TERMINAL PLATING: Gold plated
Application
- Industrial control
- Instrumentation
- Security equipment
- Amplifier audio
- Telecommunication
- Garage door opener
- Controller application
