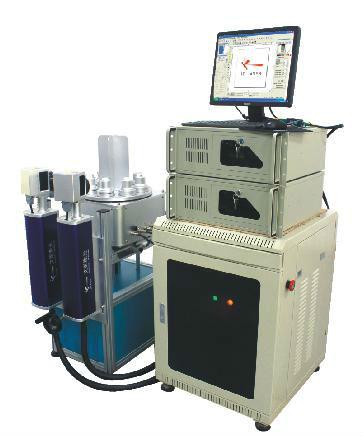

Double Heads Roating 3D Laser Marking Machine
Production Lead Time:
21 day(s)
Model No.:
IT-FB-EJ-B
Brand:
IT Laser
Port:
ShenZhen
Type of Payment:
T/T
Minimum Order Quantity:
1set
Customised:
Yes
Type:
Laser Engraving
Laser Type:
fiber laser
Description
Contact Supplier
Description
Applicable materials:All kinds of metals special for aluminum alloy, metal-coated materials,

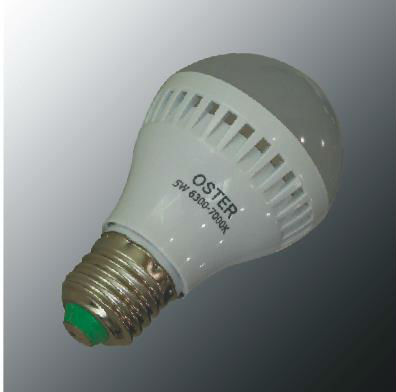

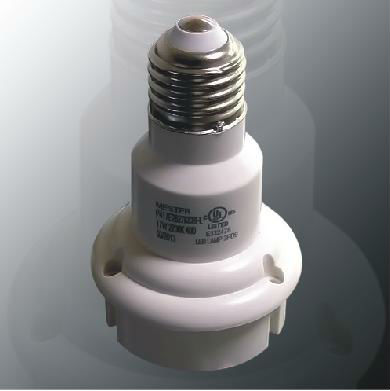

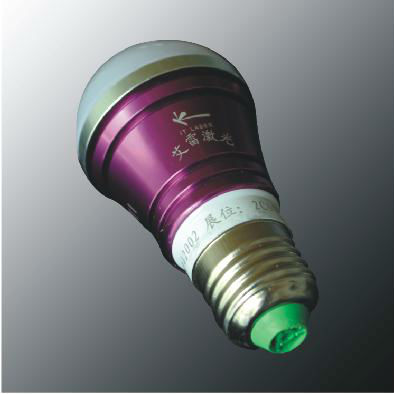

electroplates, industrial plastic (PVC/PC/PU),rubbers etc. Especially suit for LED bulb, CFL,
Lamp holder, Lamp Base, Flash Light, Spot Light etc.
Technical Data
Wavelength 1064nm
Average Laser Power 20W
Max. Laser Power ≥50KW
Graphic format supported PLT/AL/CDR/DXF/DWT/BMP/JPG/PS/ETC
Laser Repetition Frequency 20~100KHz
Marking Size 110mmX110mm
Marking Depth ≤1.2mm
Max. Marking Speed 7000mm/s
Min. Marking Width 0.025mm
Min. Character 0.2mm
Power Consumption ≤0.7KW
Power Supply AC220V±10% 50Hz
Size 1000X650X1400mm
Production Capacity 1500~2500 PCS/Hour
electroplates, industrial plastic (PVC/PC/PU),rubbers etc. Especially suit for LED bulb, CFL,
Lamp holder, Lamp Base, Flash Light, Spot Light etc.
Technical Data
Wavelength 1064nm
Average Laser Power 20W
Max. Laser Power ≥50KW
Graphic format supported PLT/AL/CDR/DXF/DWT/BMP/JPG/PS/ETC
Laser Repetition Frequency 20~100KHz
Marking Size 110mmX110mm
Marking Depth ≤1.2mm
Max. Marking Speed 7000mm/s
Min. Marking Width 0.025mm
Min. Character 0.2mm
Power Consumption ≤0.7KW
Power Supply AC220V±10% 50Hz
Size 1000X650X1400mm
Production Capacity 1500~2500 PCS/Hour
