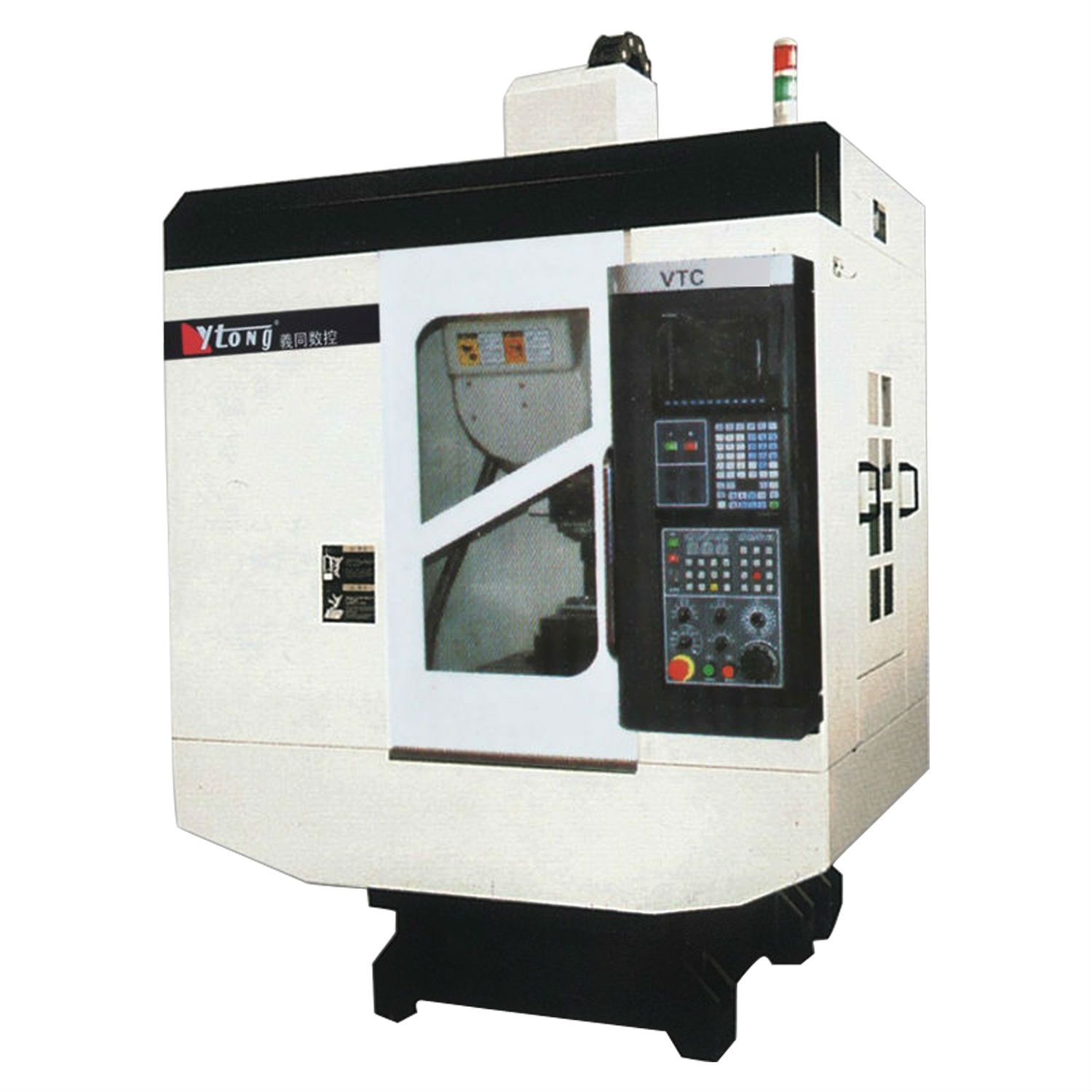

Drilling & Tapping Machine Center
Model No.:
VTC-500
Brand:
Yitong
Size:
1650x2050x2200
Customised:
Yes
Description
Contact Supplier
Description
- Model VTC-500
- Table size (mm) 620x420
- Travel Longitude(X) (mm) 500
- Travel Crossward(Y) (mm) 400
- Travel Vertical (Z) (mm) 300
- Distance between Spindle and table (mm) 200-500
- Distance between Spindle and column (mm) 420
- Spindle Rotation speed (rpm) 10000
- Spindle Taper BT30
- Spindle Motor (KW) 5.5
- ATC Type Clamp arm ATC with 14 tools
- Tool max.length/max.weight (mm/KG) 200mm/3KG
- RAPID Longitude (X) (m/min) 48
- RAPID Crossward (Y) (m/min) 48
- RAPID Vertical (Z) (m/min) 48
- Cutting Feed (m/min) 12
- Positioning accuracy (m/min) 0.005
- Min.set moving unit(mm) 0.001
- Dimension (L*W*H) (mm) 1650x2050x2200
- Net Weight (KG) 2700
- Max.load of table (KG) 200
- Remark:Different control system with different spindle power.
- * means optional.
- VTC-500 Drilling and tapping machine center
- The fist choice for precise parts mass processing for Die-casting, communication and mobile phone Industry ETC.
- Be essential for mass parts processing of communication,electronic and auto industry.
- Elaborately manufacturing,best cost performance.
- Excellent comprehensive cutting feature with high reliability.
- Global top brand key parts
- Industrial highlights
- Engine cylinder head
- Mobile phone moulding
- Equipments parts
