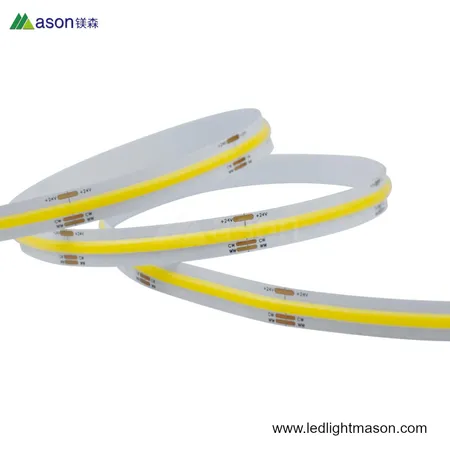

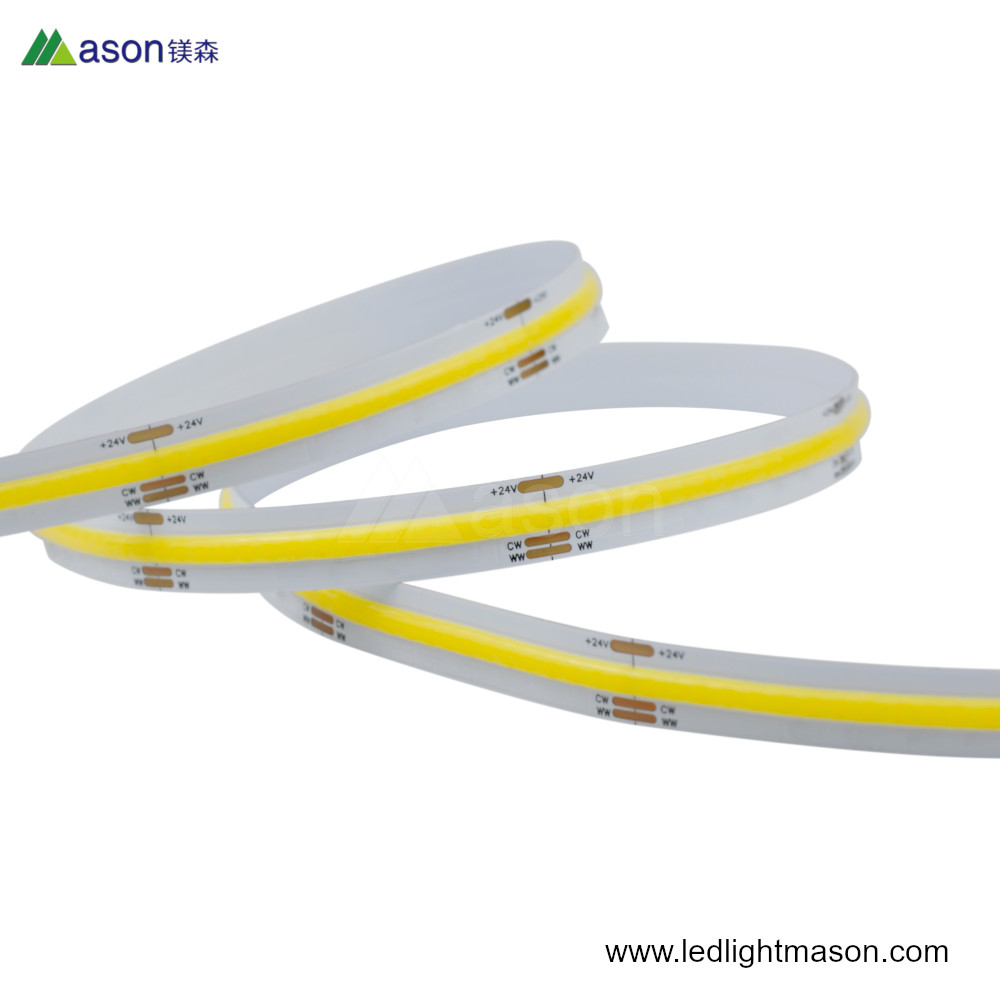

Dual CCT COB Strip Light
US $2.05 - US $2.81
Customised:
Yes
Is Dimmable:
Yes
Light Source:
LED
Material:
FPC board, LED chips, resistance
Feature:
CCT tunable from warm white to daylight
Size:
length: 5meter, PCB width 5/8/10mm
Description
Certification & Document
Contact Supplier
Description
Product Features:
- 320/512/640 LEDs per meter bonded on the FPC board.
- Linear lighting, without light spot, soft and uniform luminance
- Ra>90 with excellent color rendition effect
- ERP energy efficiency
- CCT tunable from warm white to daylight
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
Product Specification:
All data are based on 1 meter IP20 strip
Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous Efficacy | Luminance Flux | Width | Beam Angle | PCB Layer |
MS-LCOBDW-320-8W-QV-05F0-90 | 320 | 12/24V | 8W | ≤5 | 90 | 2700~6500K | 80-95lm/W | 320-700lm | 5mm | 140° | Double Copper |
MS-LCOBDW-320-10W-QV-05F0-90 | 10W | 400-870lm | |||||||||
MS-LCOBDW-512-8W-QV-05F0-90 | 512 | 12/24V | 8W | ≤5 | 90 | 2700~6500K | 80-95lm/W | 320-700lm | 5mm | 140° | Double Copper |
MS-LCOBDW-512-12W-QV-08F0-90 | 12W | 480-1050lm | 8mm | ||||||||
MS-LCOBDW-512-10W-12V-10F0-90 | 12V | 10W | 80-100lm/W | 400-950lm | 10mm | ||||||
MS-LCOBDW-640-12W-24V-10F0-90 | 640 | 24V | 12W | ≤5 | 90 | 2700~6500K | 80-100lm/W | 400-1200lm | 10mm | 140° | Double Copper |
Product Dimension:
24V:
Certification & Document
Certificate Name
Issued By
Certificate Type
Valid Date
CE Certification
Issued By
Shenzhen BCTC Testing Co., Ltd.
Certificate Type
CE
Valid Date
11 Aug 2022
-
(N/A)
UKCA Certification
Issued By
Shenzhen BCTC Testing Co., Ltd.
Certificate Type
UKCA
Valid Date
11 Aug 2022
-
(N/A)
RoHS Certification
Issued By
Shenzhen BCTC Testing Co., Ltd.
Certificate Type
RoHS
Valid Date
12 Aug 2022
-
(N/A)
