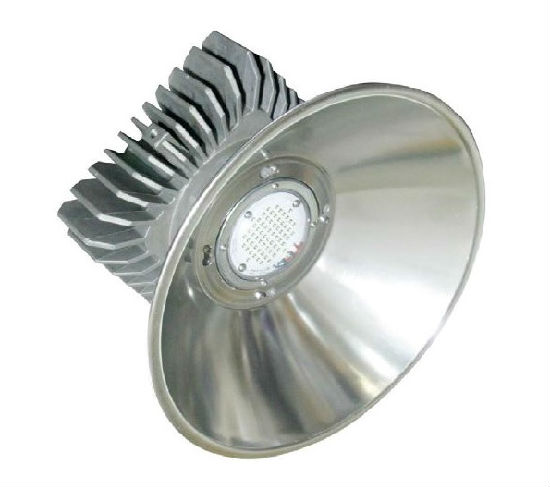

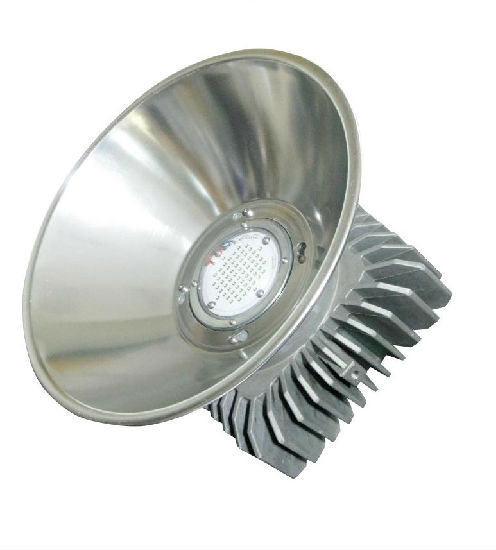

Durable Industrial Lighting LED High Bay Light

Production Lead Time:

10 day(s)

Model No.:

ZHHB-60A/ZHHB-90A/ZHHB-120A/ZHHB-150A/ZHHB-180A

Brand:

Zhihai

Colour:

Gray

Size:

Lamp Body: 263 x 263 x 155mm / Lamp Shade: Ø400mm

Port:

Tianjin, Beijing

Type of Payment:

T/T

Minimum Order Quantity:

5 piece(s)

Voltage(V):

80-315Vac

Certification:

CE, LVD, RoHS, SAA, UL, VDE, C-tick

Wattage(W):

60W/90W/120W/150W/180W

Warranty:

3/5 year

Base Type:

Hook or Flood

Light Source:

LED Bulb

Body Material:

Aluminum, Polycarbonate (PC), Stainless Steel

Is Dimmable:

Yes

Power Source:

AC, DC, Solar Powered

Description

Contact Supplier

This high bay light is made with a durable housing for a long lifespan. Adopting high-power LEDs as the light source, it delivers superior lighting effects. This reliable LED high bay light is widely used for assorted commercial lighting applications.

Features & Characteristic:

Patent design, ideal for different applications
5-5-10 year warranty
Osram/Cree LED chips, 120 lm/w system efficiency*
80% lumen maintenance over 50,000hours
0-10Vdc dimming driver available
Built-in surge protection
Built-in thermal protection
Maintenance free
Mercury free, No UV or IR
Universal input without additional adapter,80-315Vac, 80-400Vdc
Instant start and flicker free
High uniformity and color rendering
Universal input without additional adapter

Parameters:

Dimension: Lamp Body: 263x263x155mm / Lamp Shade: Ø400mm
Net Weight: 8kg (17.6lbs)
Color Temperature: 4000K (warm white) / 6000K (cool white)
Color Rendering: ≥Ra75
Working Life: ≥50000Hrs
Housing: Aluminum
IP Class: IP 65 (Upgradeable to IP 67)
Insulation Class: Class I (Upgradeable to Class II)
Working Temperature: -40C ~ 60C / -40F ~ 140F
Working Humidity: 10% ~ 95%
AC Input: 80 ~ 315Vac
DC Input: 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available
on request)
THD: <10%
Power Factor: ≥0.98
