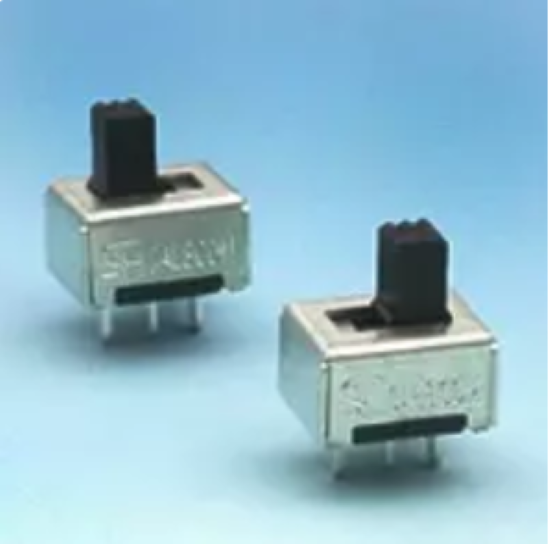

Dust-proof Slide Switch

SL-A Sub-miniature Slide Switches (SL-A)

Dust-proof slide switch with solder lug and PC thru-hole terminations. Actuator height 3.0 and 5.0mm for choice. This switch is perfect for Test & measurement equipment, Computer peripherals, Consumer products.

Features

• Gold or silver plating available

Specification

• Contact Rating: 2A, 125VAC; 1A, 250VAC
• Electrical Life:10,000 cycles
• Contact Resistance: 20mΩ max.(initial)
• Insulation Resistance: 100MΩ min. 500VDC
• Dielectric Strength: 500VAC/1 min.
• Operating Temperature: -10°C to 70°C

Application

• Computers and peripherals
• Telecommunication
• Test & Measurement equipment
