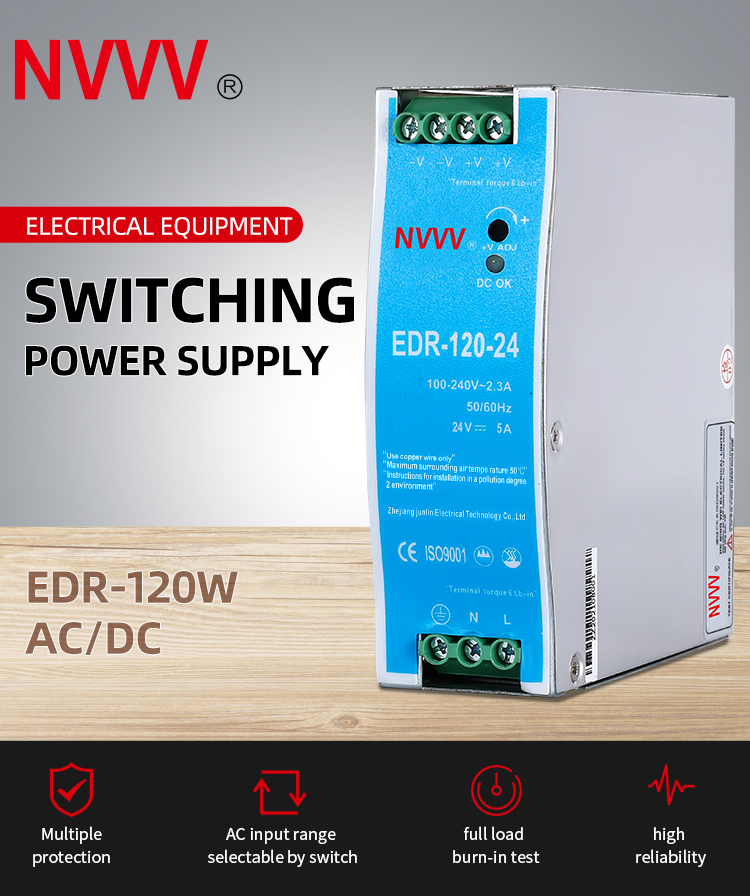

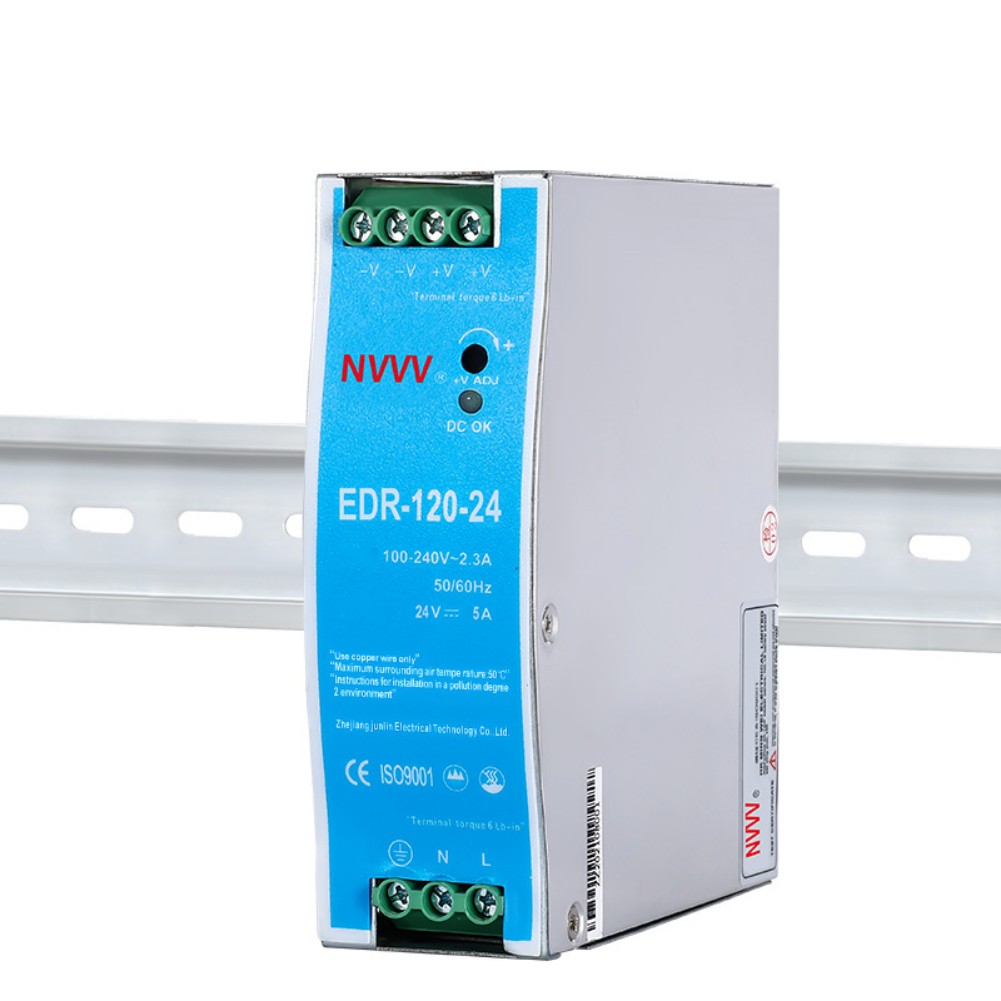

EDR-120-24 120W 24VDC 5Amp Industrial DIN Rail Power Supplies (24V 120W), Silver

Production Lead Time:

1 day(s)

Shipping Method:

Express Delivery

Application:

AC to DC

Brand:

NVVV

Model No.:

EDR-120-24

Size:

41*108*126

Weight:

0.5

Description

Contact Supplier

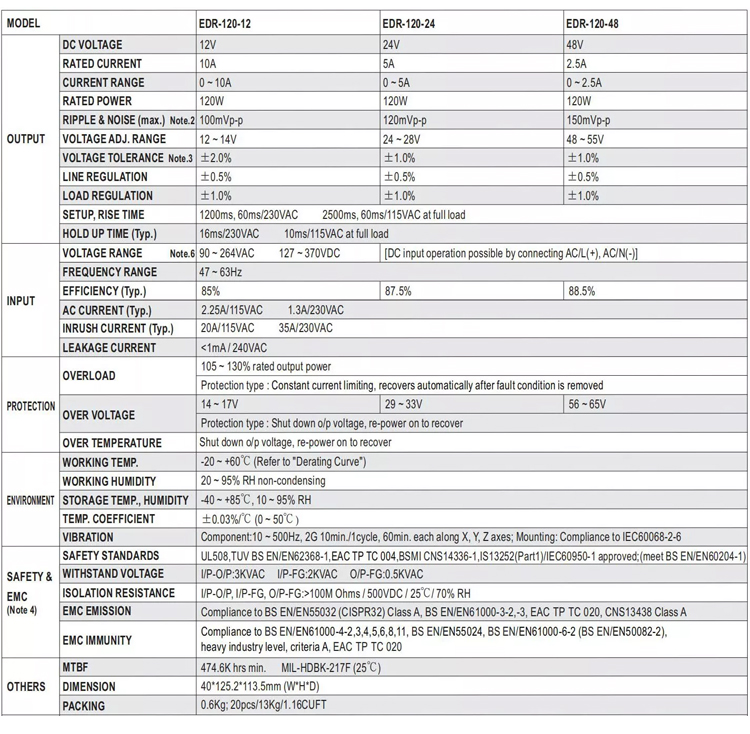

EDR-120 120W Rail Type Switching Power Supply
Project		Technical index
Output	DC voltage	12V	24V	48V
	Rated current	10A	5A	2.5A
	Rated power	120W	120W	120W
	Ripple and noise ①	＜120mV	＜120mV	＜150mV
	Voltage accuracy	±2%	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	±1%
	Linear adjustment rate	±0.5%
Input	Voltage range	85-264VAC 47hz-63hz (120vdc-370vdc: DC input can be realized by connecting AC / L +, AC / N (-))
	Efficiency (typical) ②	＞86%	＞88%	＞89%
	Working current	＜2.25A 110VAC ＜1.3A 220VAC
	Impulse current	110VAC 20A， 220VAC 35A
	Start, rise, hold time	500ms、70ms、32ms ：110VAC/500ms、70ms、36ms ：220VAC

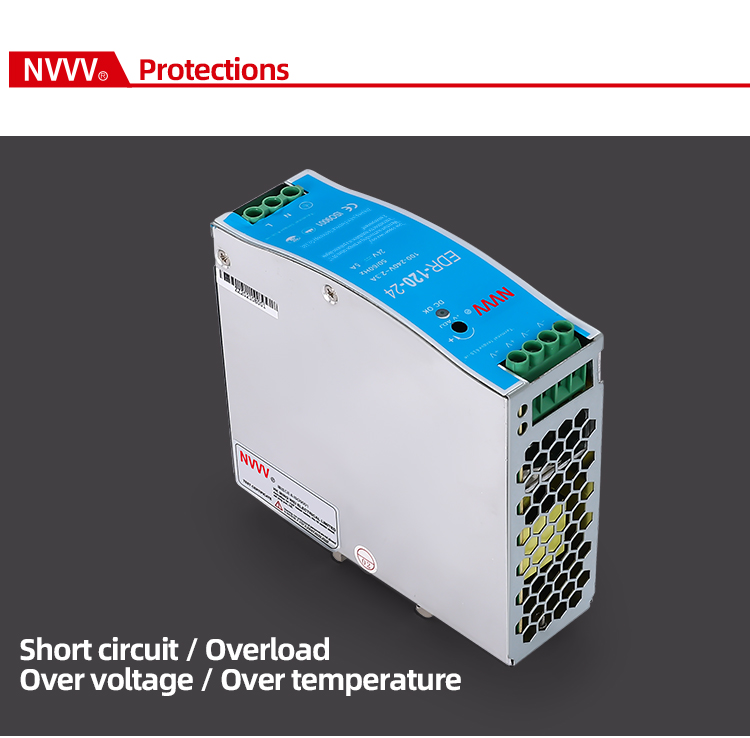

Protect	overload protection	105% - 150% type: protection mode: automatic recovery after removing the abnormal condition of constant current mode
	Overvoltage protection	When the output voltage is more than 135%, the output will be turned off. It will recover automatically after the abnormal conditions are removed
	Short circuit protection	+VOWhen the abnormal condition of output is released, it will recover automatically
Environmental	Working temperature and humidity	-10℃～+60℃；20%～90RH
	Storage temperature and humidity	-20℃～+85℃；10%～95RH
Safety/EMC	Withstand voltage	Input output: 3kVac input ground: 1.5kVac output ground: 0.5kvac for 1 minute
	Leakage current	＜1mA/240VAC
	Isolation resistance	Input output, input shell, output shell: 500VDC / 100M Ω

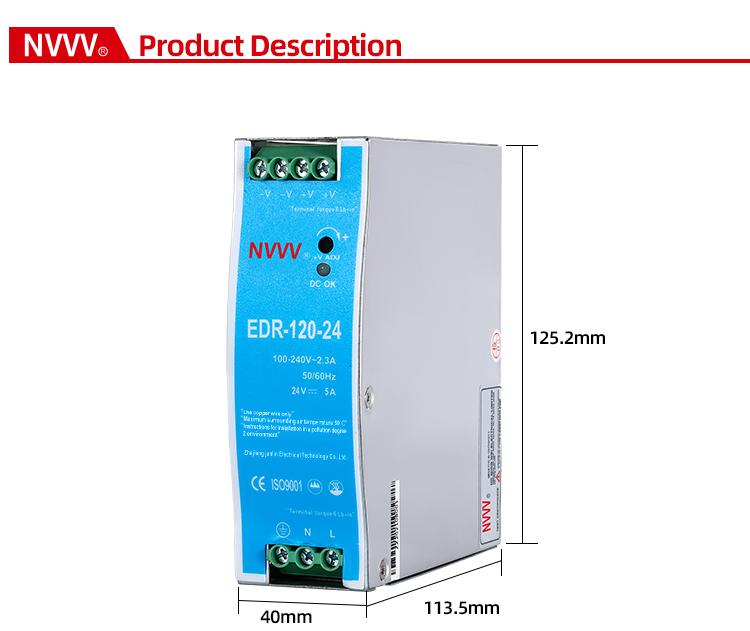

Other	size	40125113mm
	Net weight / gross weight	707/750g
