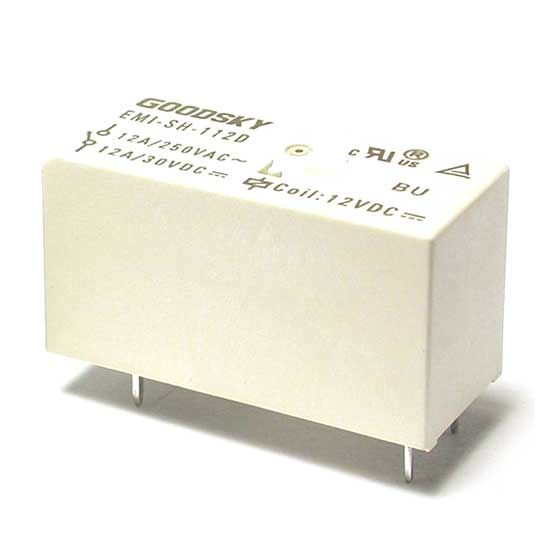

EMI Relay
Model No.:
EMI-1P Series
Brand:
Goodsky Relay
Size:
29.0(L) x 12.6(W) x 15.8(H)mm
Port:
Hong Kong
Description
Contact Supplier
Description
This EMI relay is designed for switching capacity by 12A to comply with industrial control system use. A slim construction is developed to provide end users with more flexibility in PC Board design. Users can also benefit from its low power consumption.
- Weight: 12.5g.
- Both AC and DC coil available.
- Proper insulation distance is equipped to ensure EMI will has a 5,000-VAC dielectric strength between contact and coil.
- Plastic epoxy resin sealed type is available for washing procedure.
- Halogen-free relay available.
- In accordance with IIEC 60335-1 and IEC 60730-1.
- Contact form: SPST/SPDT.
- Contact rating: 12A/250VAC,12A/30VDC.
- Coil voltage: DC 6, 9, 12, 15, 18, 24, 48, 60, 110/AC 24, 115, 230.
- Power consumption: (DC coil) 1.4W, (AC coil) 0.61-0.88VA.
- Safety standard: UL, C-UL, ÜV, VDE.
