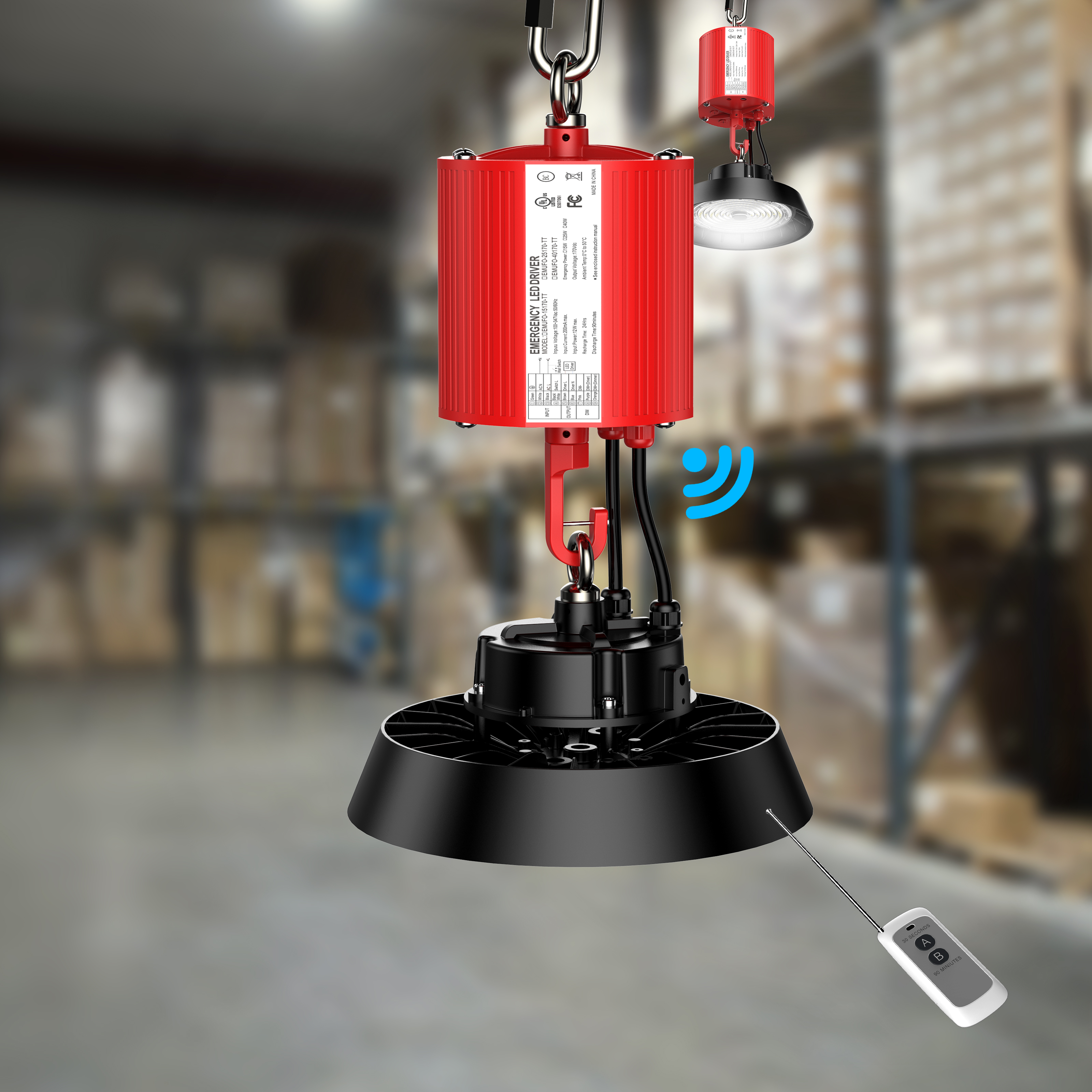

170VDC Emergency Driver for UFO High Bay

Meets Title-20 Efficiency Standards
170V or 240V led emergency driver
With or without conduit
Field-installable

The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements.

Press the test button to cut the power to the AC driver and switch the system to emergency mode. Release the test button to return to
normal mode. Switch off the circuit breaker to simulate a full power outage.

NFPA 101, Life Safety Code outlines the following schedule:

Monthly - Insure that the test button light is illuminated. Conduct a 30 second discharge test by depressing the test button.
The LED load should operate at reduced output.

Annually - Insure that the test button is illuminated. Conduct a full 90 minute discharge test. The unit should operate as intended
for the duration of the test.

“Written records of the testing shall be kept by the owner for inspection by the authority having jurisdiction.”
