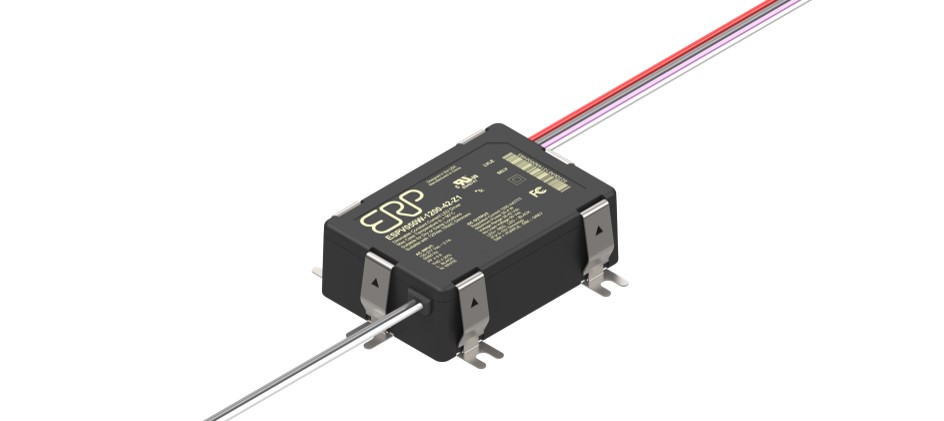

ERP Power ESPV Series LED Driver

Model No.:

ESPV Series

Brand:

ERP Power

Colour:

Anodized Aluminum

Size:

L 87 x W 60 x H 30 mm

Port:

Hong Kong

Minimum Order Quantity:

500

Certification:

CCC, CE, FCC, RoHS

Warranty:

5 Years

Description

Contact Supplier

Same features as the ESP/ESPT series but with a thermally-enhanced plastic case, 5VA flammability and UL Class P
Compatible with TRIAC (forward-phase or leading-edge), ELV (reverse-phase or trailing-edge) and 0-10 V dimmers
TRIAC and ELV dimming only at 120 Vac
UL Class P
90°C maximum case hot spot temperature
Class 2 power supply
Lifetime: 50,000 hours at 70°C case hot spot temperature
IP66-rated case with silicone-based potting
Non-linear 0-10V dimming with dim-to-off: 10V to 8.1V=100%, 1V to 0.8V=1%, <0.8V dim-to-off.
Protections: output open load, over-current and short-circuit (hiccup), and over-temperature with auto recovery
Conducted and radiated EMI: Compliant with FCC CFR Title 47 Part 15 Class B (120 Vac) and Class A (277 Vac)
Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
Worldwide safety approvals
