ETL/UL Lunar Series: 120-277V Input & Dimmable @120V LED Track Heads

US $0.99 - US $98.01

US $1.00 - US $99.00

Production Lead Time:

28 day(s)

Shipping Method:

FOB Shenzhen

Brand:

Lunar

Customised:

Yes

Is Dimmable:

Yes

Power:

10W 15W 23W 32W 38W

Lumen Output:

780 lm 1300 lm 2150 lm 3050 lm 3500 lm

Ra Option:

Ra82, Ra 90+ on request

Adjustable:

350° rotation, 180° pivot

CCT Option:

2700K, 3000K,4000K

Beam Angle:

15°, 24°, 38°, 60°

Power factor:

0.95

Dimmable @120V:

Triac ELV

Certification:

cETLus

Installations:

Track System: H, J, L, Tek, 2C2N

Finish:

Texture Black, Texture White

Description

Contact Supplier

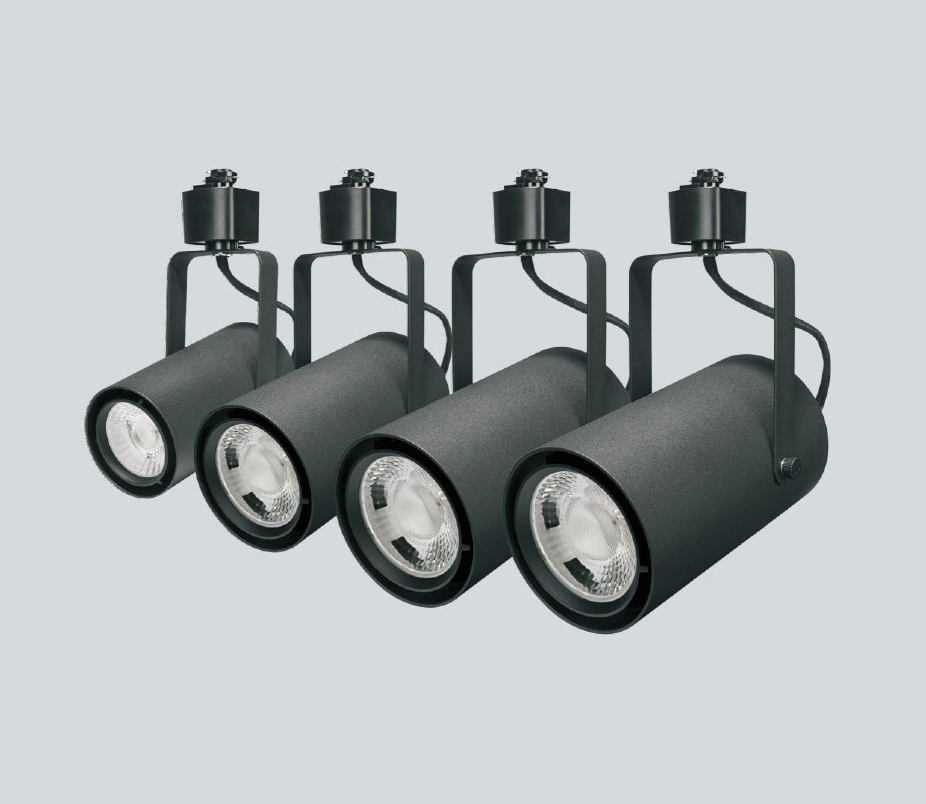

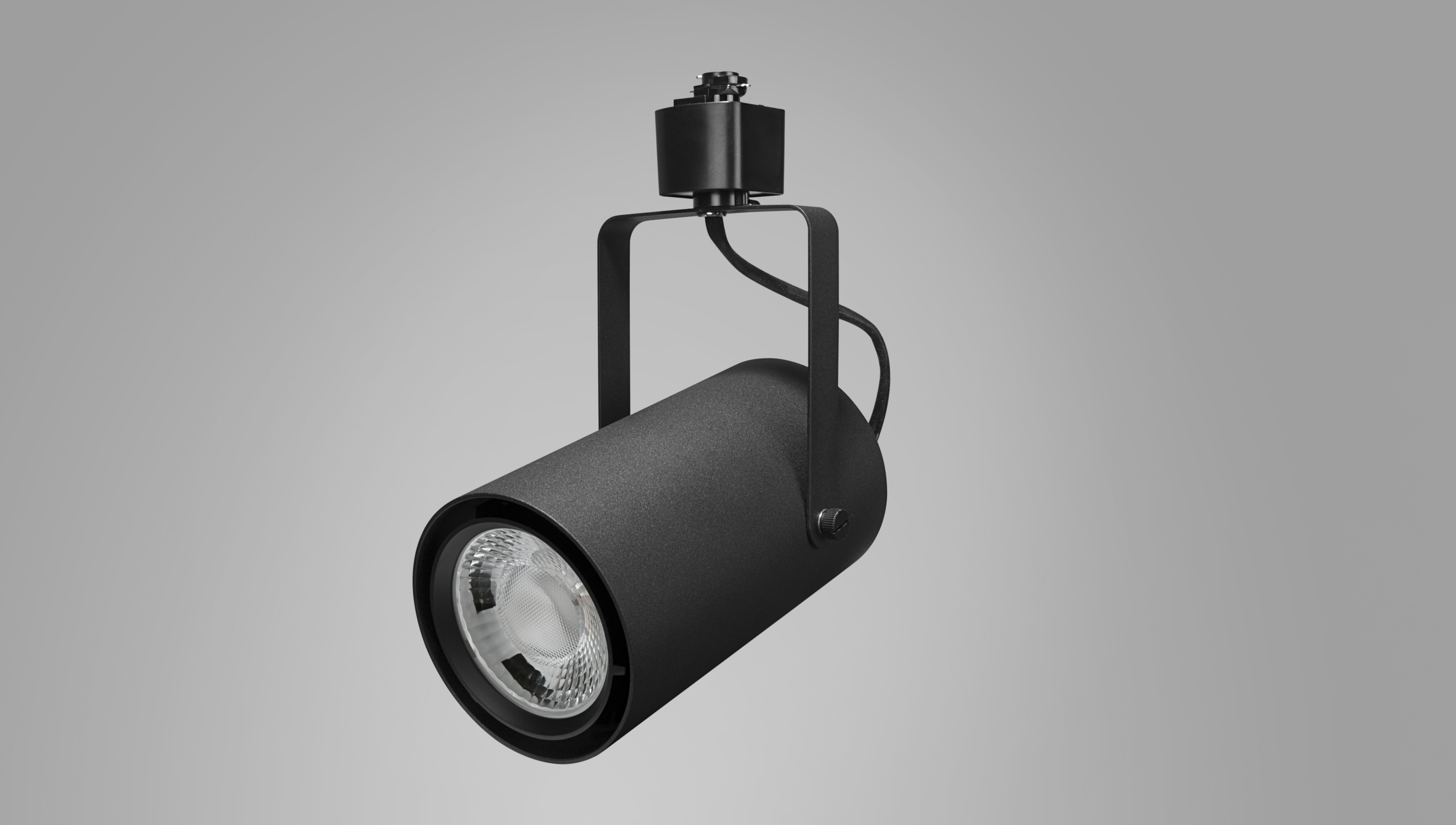

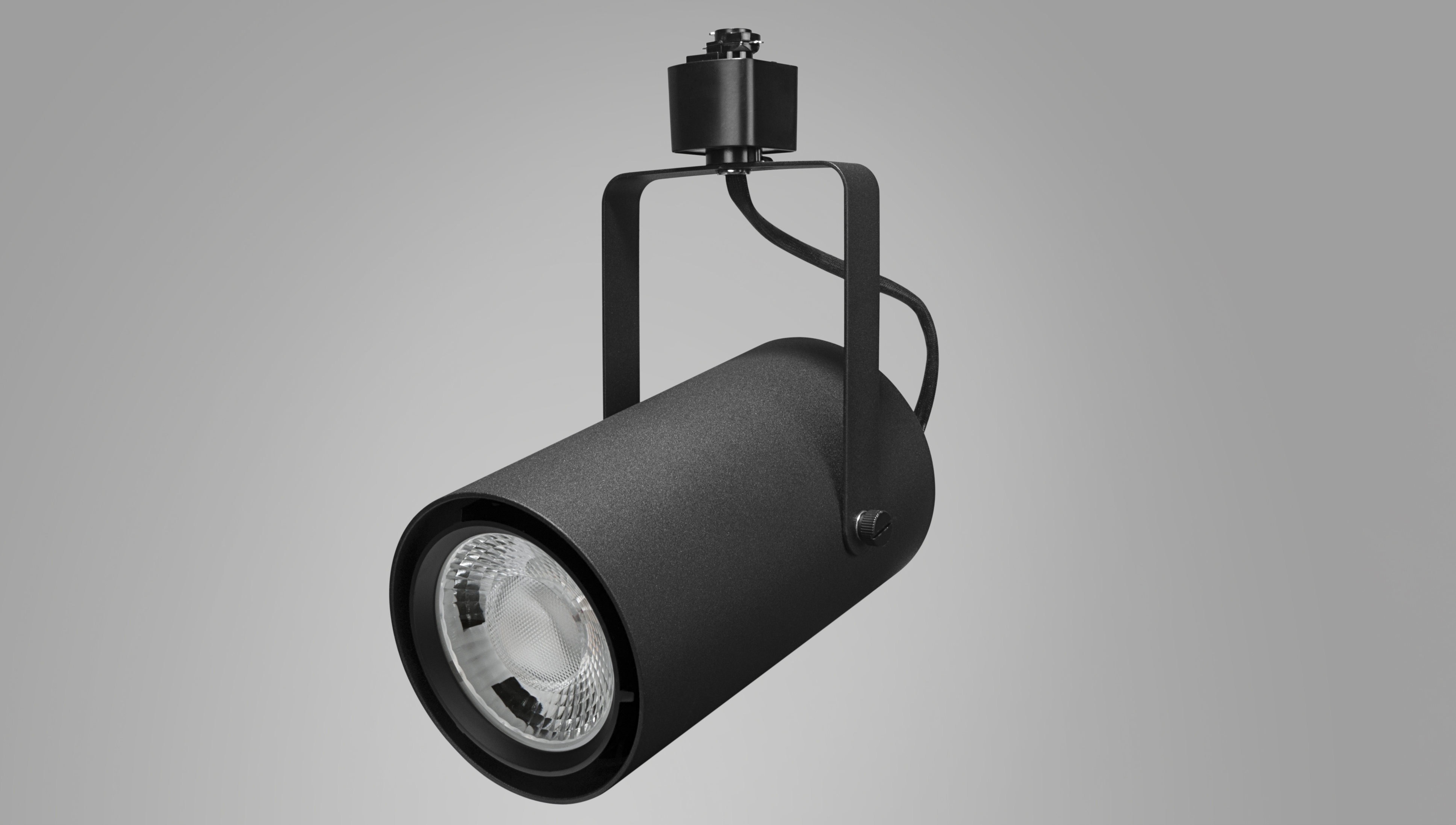

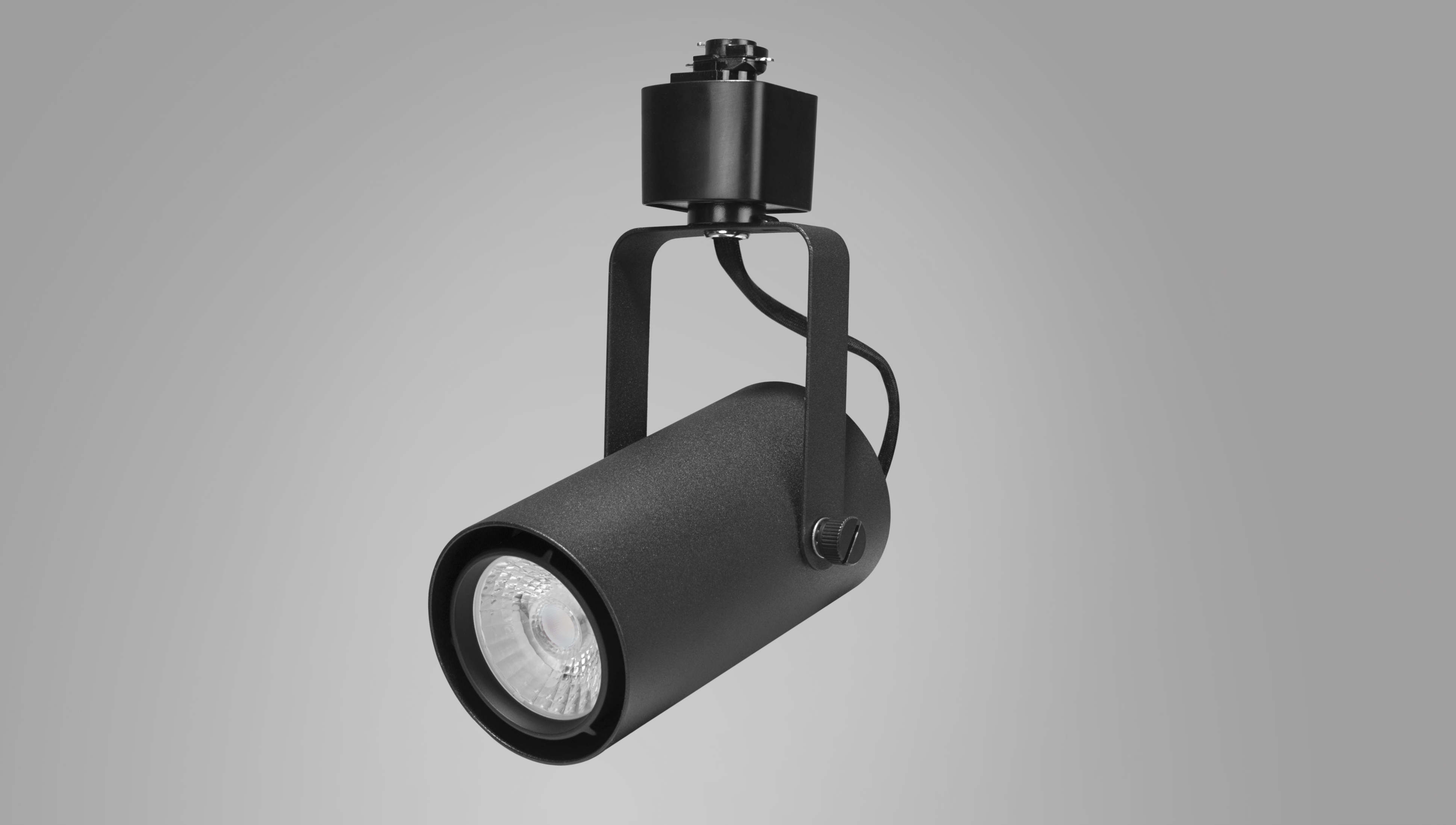

Lunar™, a family of swivel universal track heads with 120-277V input and dimmable at 120VAC. Minimal, functional form with cleanly detailed yoke design, Lunar series is available in texture black and texture white finishes. Each head can be adjusted horizontally up to 350°, vertically up to 90°, and has its own locking knobs on the bracket. Regressed lens holder retains spread lens, honeycomb, snoot, adjustable “barn doors” and wall washer accessory. Lunar consumes low wattage while delivering superior lumen output, which's essential for saving energy consumption.

Applications: Residential, Retail, Art-gallery, Museum, Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, etc.

Features Highlight

Compatible to all North American Track Systems: Juno, Halo, Lightolier and Nordic Aluminium
120-277V universal input, 120V dimmable, 277V only available for 2C2N system
5–100 % dimmable with triac ELV dimmers @ 120V
Powered with CREE CXB LEDs and within 3 SDCM Macadam
Up to 110lm/W energy efficiency
4 sizes 5 different lumens package up to 4000lm
Sleek, compact cylinder aluminum housing and no visible screws
Interchangeable bean spreads from narrow spot to wide flood distribution
Accessories: barndoor, honeycomb, snoot, color filter, linear lens...

Datasheet

Power	10W	15W	23W	32W	38W
Lumen Output	780 lm	1300 lm	2150 lm	3050 lm	3500 lm
Ra Option	Ra82, Ra 90+ on request	Ra82, Ra 90+ on request	Ra82, Ra 90+ on request	Ra82, Ra 90+ on request	Ra82, Ra 90+ on request
Adjustable	350° rotation, 180° pivot	350° rotation, 180° pivot	350° rotation, 180° pivot	350° rotation, 180° pivot	350° rotation, 180° pivot
Input voltage	120-277V Dimmable @120V	120-277V Dimmable @120V	120-277V Dimmable @120V	120-277V Dimmable @120V	120-277V Dimmable @120V
CCT Option	2700K, 3000K,3500K 4000K	2700K, 3000K,3500K 4000K	2700K, 3000K,3500K 4000K	2700K, 3000K,3500K 4000K	2700K, 3000K,3500K 4000K
Beam Angle	15°, 24°, 38°, 60°	15°, 24°, 38°, 60°	15°, 24°, 38°, 60°	15°, 24°, 38°, 60°	15°, 24°, 38°, 60°
Power factor	0.9	0.95	0.95	0.95	0.95
Dimmable @120V	Triac, ELV	Triac, ELV	Triac, ELV	Triac, ELV	ON/OFF
LED Brands	CREE	CREE	CREE	CREE	CREE
Certification	ETL, FCC	ETL, FCC	ETL, FCC	ETL, FCC	ETL, FCC
Diameter	Ø2 3/8"	Ø3 3/8"	Ø2 3/4"	Ø 3 15/16"	Ø 3 15/16"
Installations	Track System: H, J, L, Tek, 2C2N	Track System: H, J, L, Tek, 2C2N	Track System: H, J, L, Tek, 2C2N	Track System: H, J, L, Tek, 2C2N	Track System: H, J, L, Tek, 2C2N
Suitable for	Dry locations	Dry locations	Dry locations	Dry locations	Dry locations
Finish	Texture Black, Texture White	Texture Black, Texture White	Texture Black, Texture White	Texture Black, Texture White	Texture Black, Texture White
Lifespan(hrs) @Ta=25°	>50,000	>50,000	>50,000	>50,000	>50,000
Warranty(years)	5	5	5	5	5
