EU US Plug 3-12V Adjustable Power Adapter

Model No.:

HT03

Brand:

OEM/ODM

Colour:

Black

Port:

Shenzhen

Type of Payment:

T/T

Minimum Order Quantity:

1,000 piece(s)

Features:

with Dimmer Switches , with Lamp, with Shaver Socket, with Switch, with Telecom Data Outlets, with USB Charger

Package:

Customised:

Yes

Output Type:

AC to DC

Connection:

Plug In

Usage:

Switching Power

Description

Contact Supplier

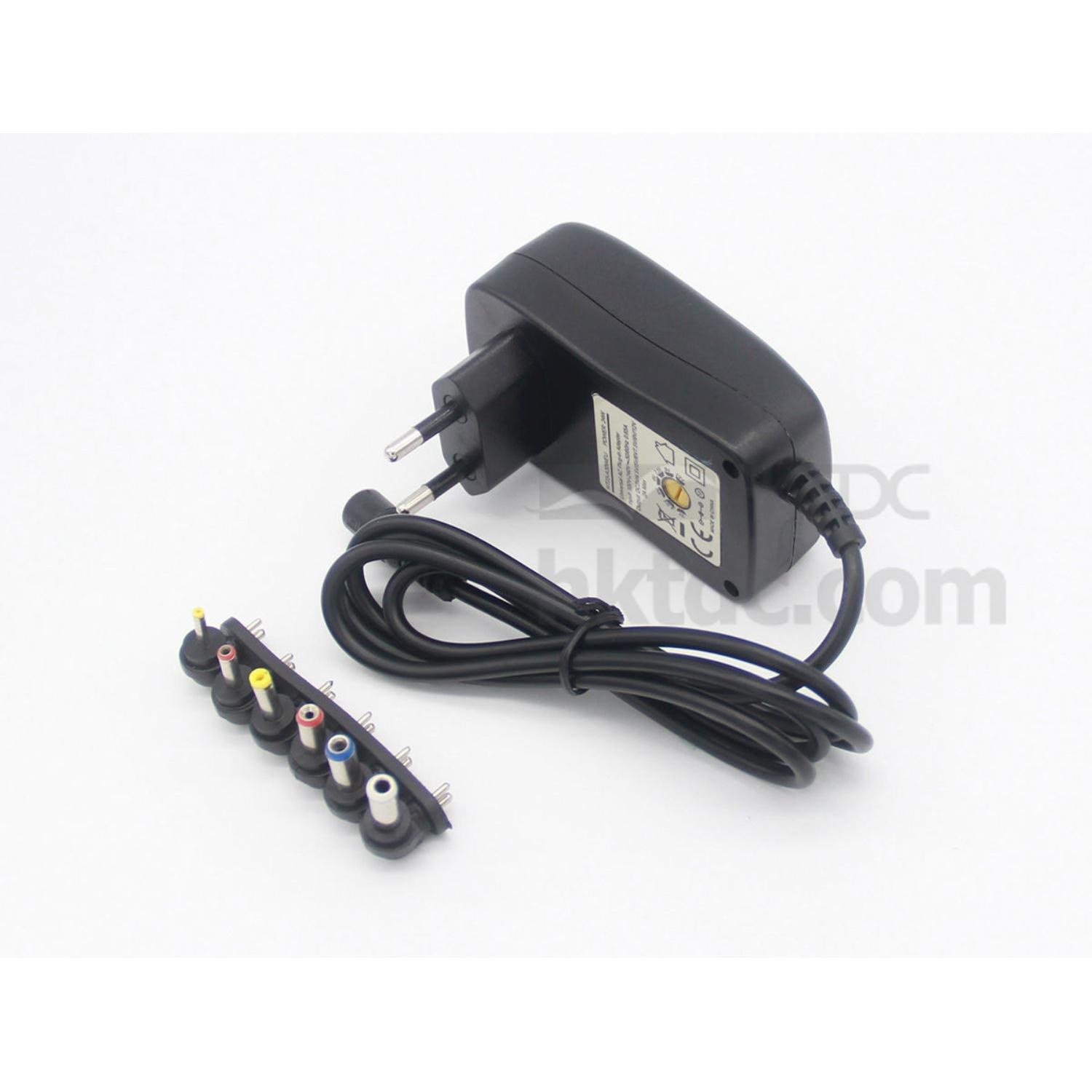

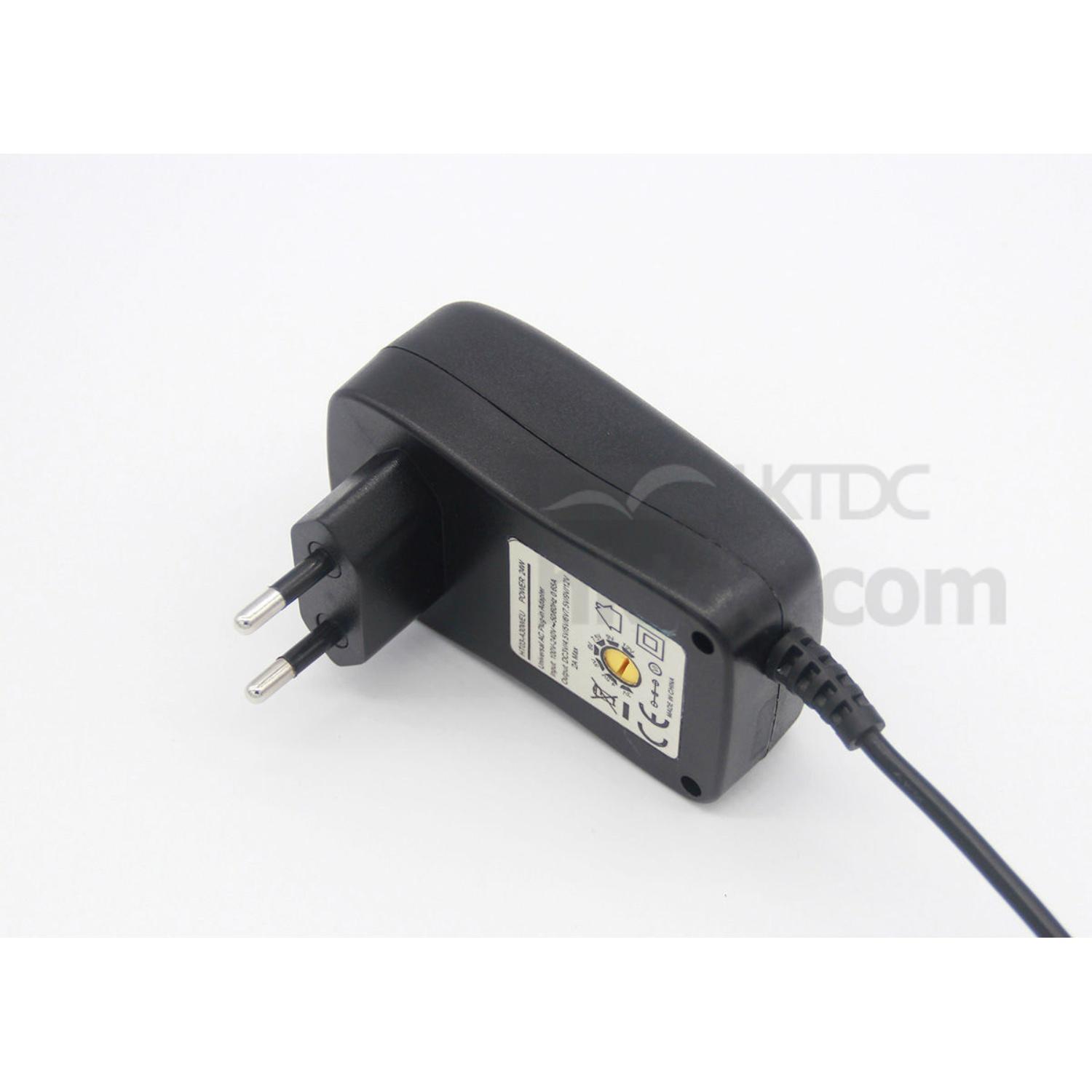

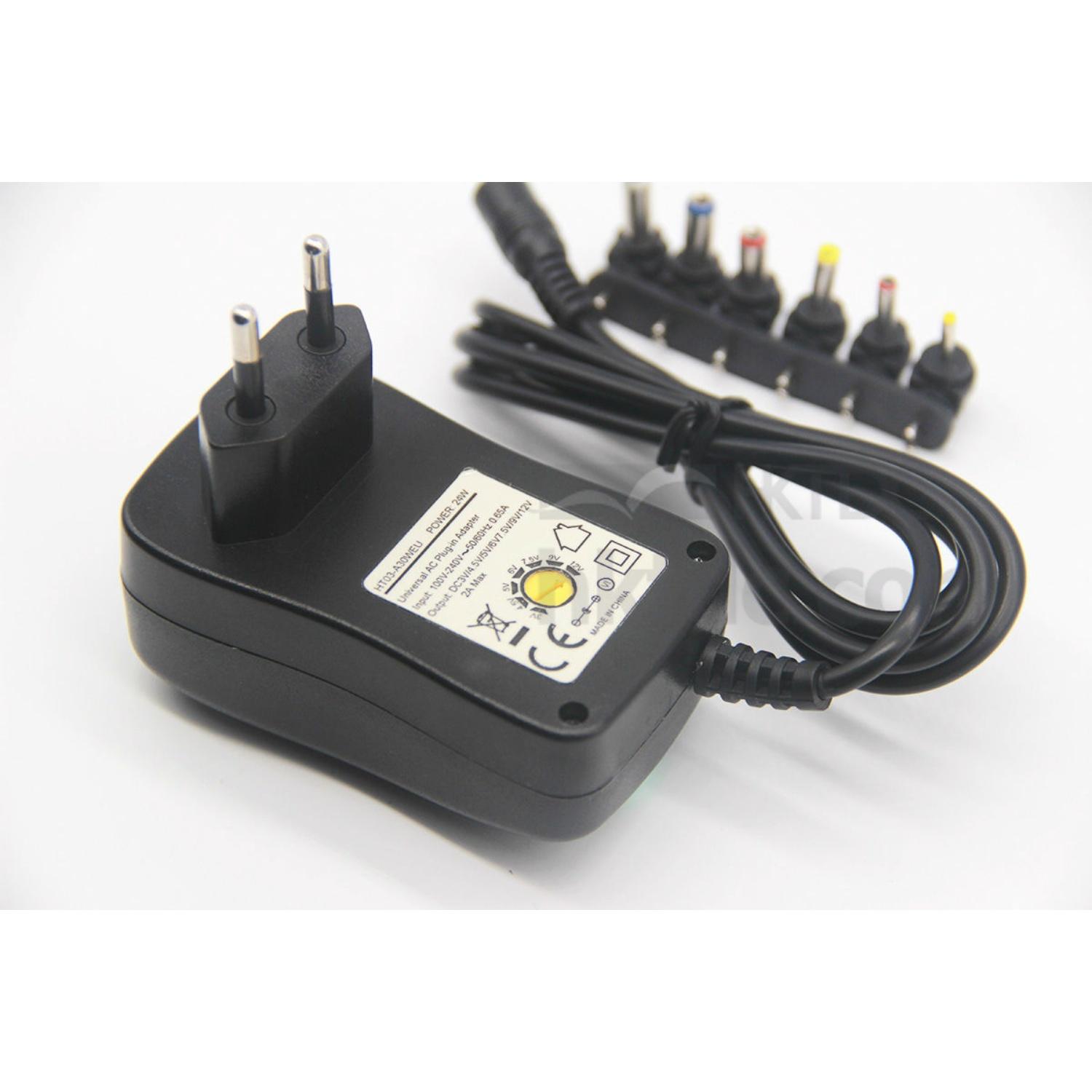

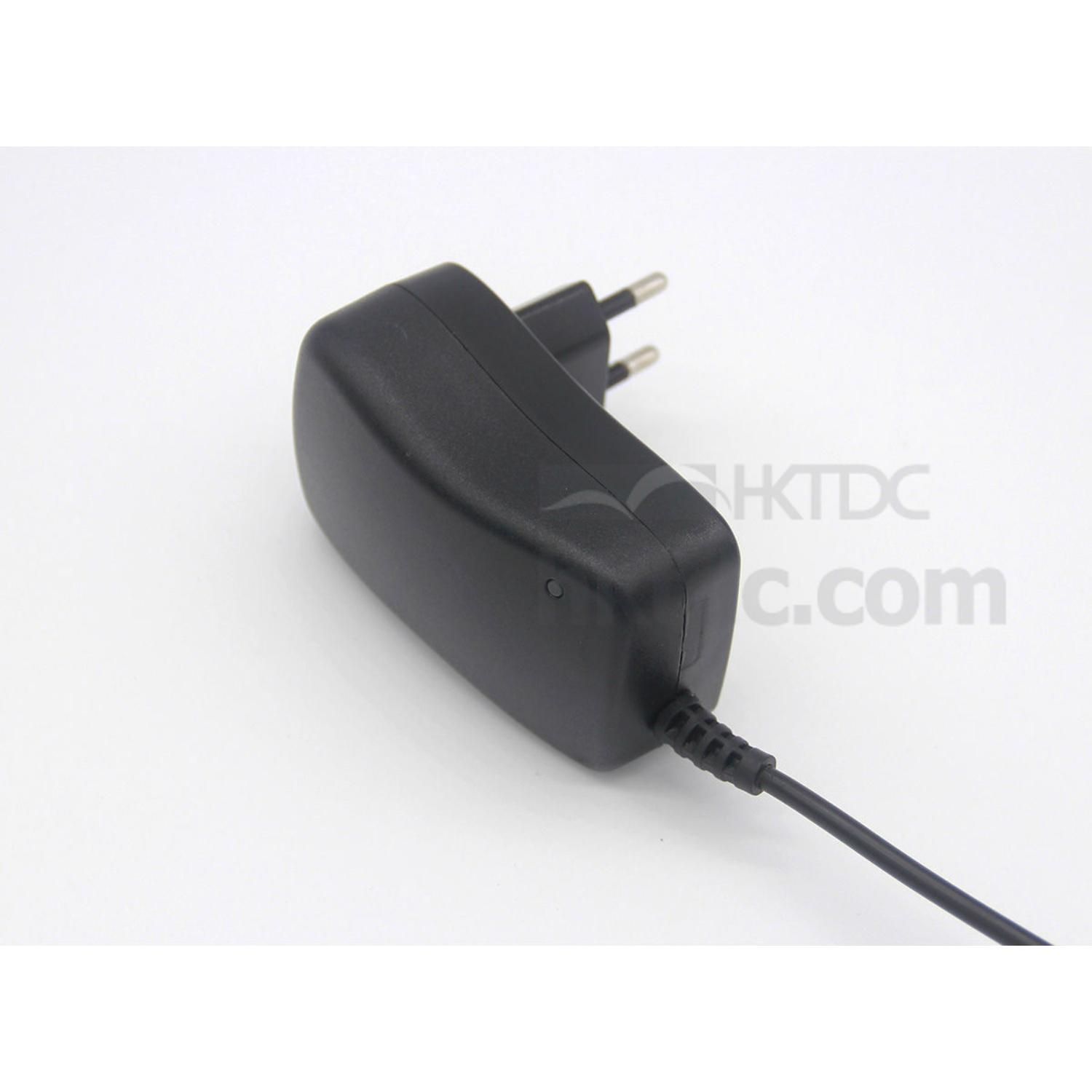

EU / US Plug 3-12V Adjustable Power Adapter, CE / UL / DOE Approved

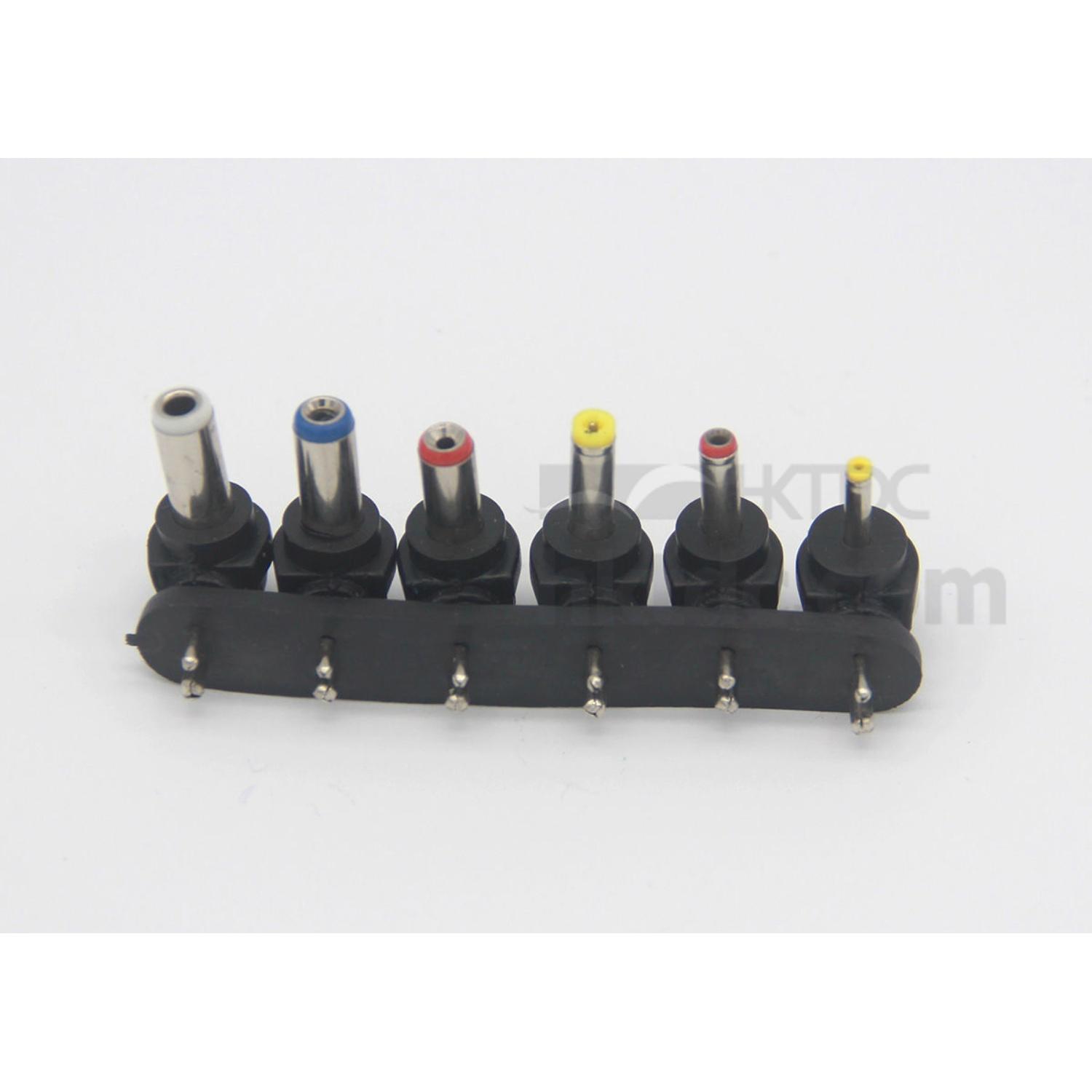

3-4.5V(5V), 6V, 7.5V, 9V, 12V, 2A adjustable with 6 normal tips: 2.5 x 0.7, 3.5 x 1.35, 4.0 x 1.7, 5.0 x 1.7, 5.5 x 2.1 and 5.5*2.5mm
Parameters:Input voltage: 100-240V AC (range: 90-264V AC)
Input current: 0.65A (maximum)
Frequency: 50/60Hz (frequency range: 47-63Hz)
Output voltage: 3.0-12V
Output current: 0.01-2.0A
Ripple and noise: 150mV (maximum)
Power consumption at no loading: 0.3W (maximum)
Conversion efficiency: 75%
Voltage/loading regulation: ±5%
Hi-pot test: 3,000 V AC/1 minute/5mA
Leakage current: 0.25mA maximum at 240V AC
With over-current, over-voltage, over-temperature, short-circuit protection functions
Operating temperature: 0 to 40°C
Safety standards: UL/EN60950/GB4943
Applications:Wireless communication electronics
Network hardware
Personal digitals
Audio and video devices
Medical equipment
Home appliances
