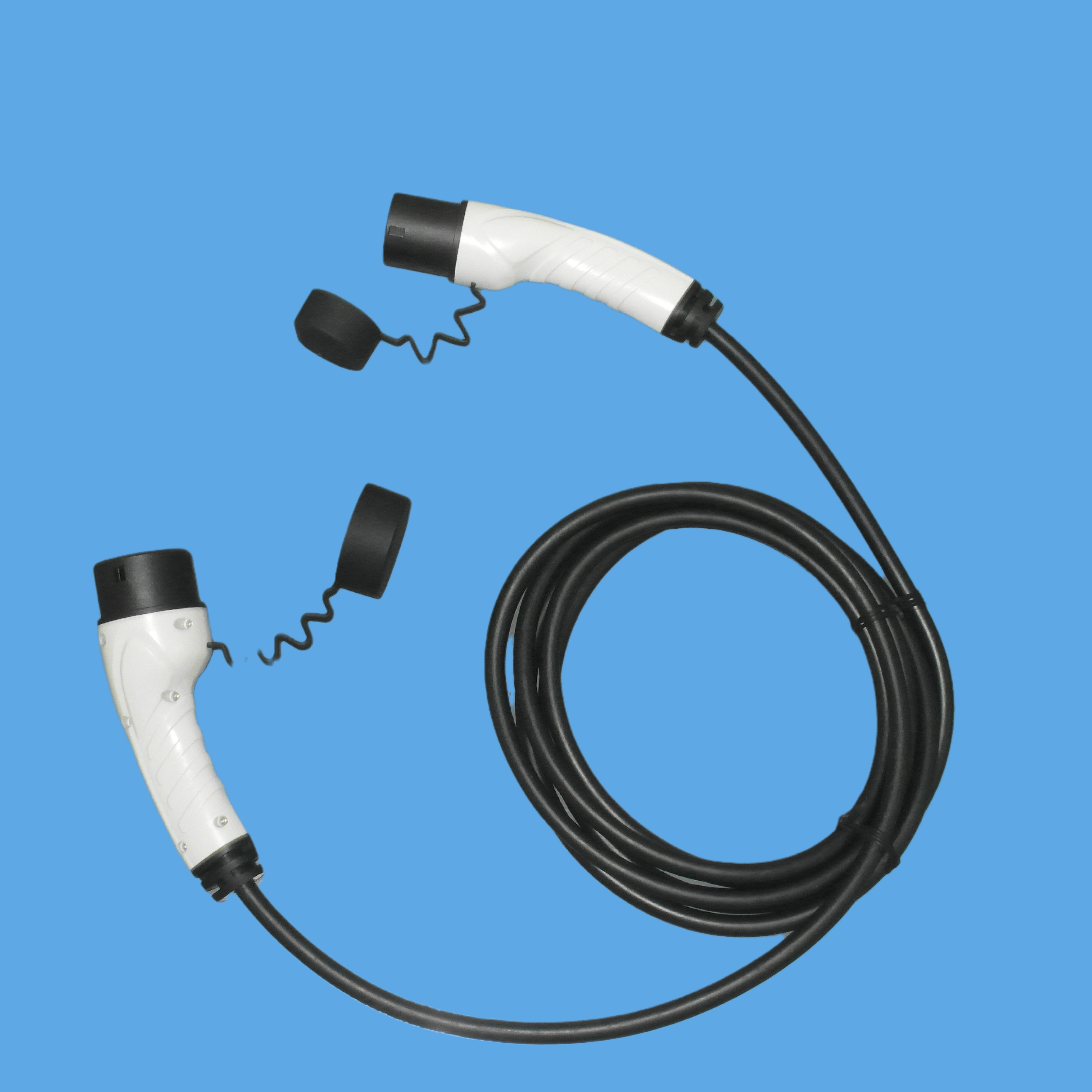

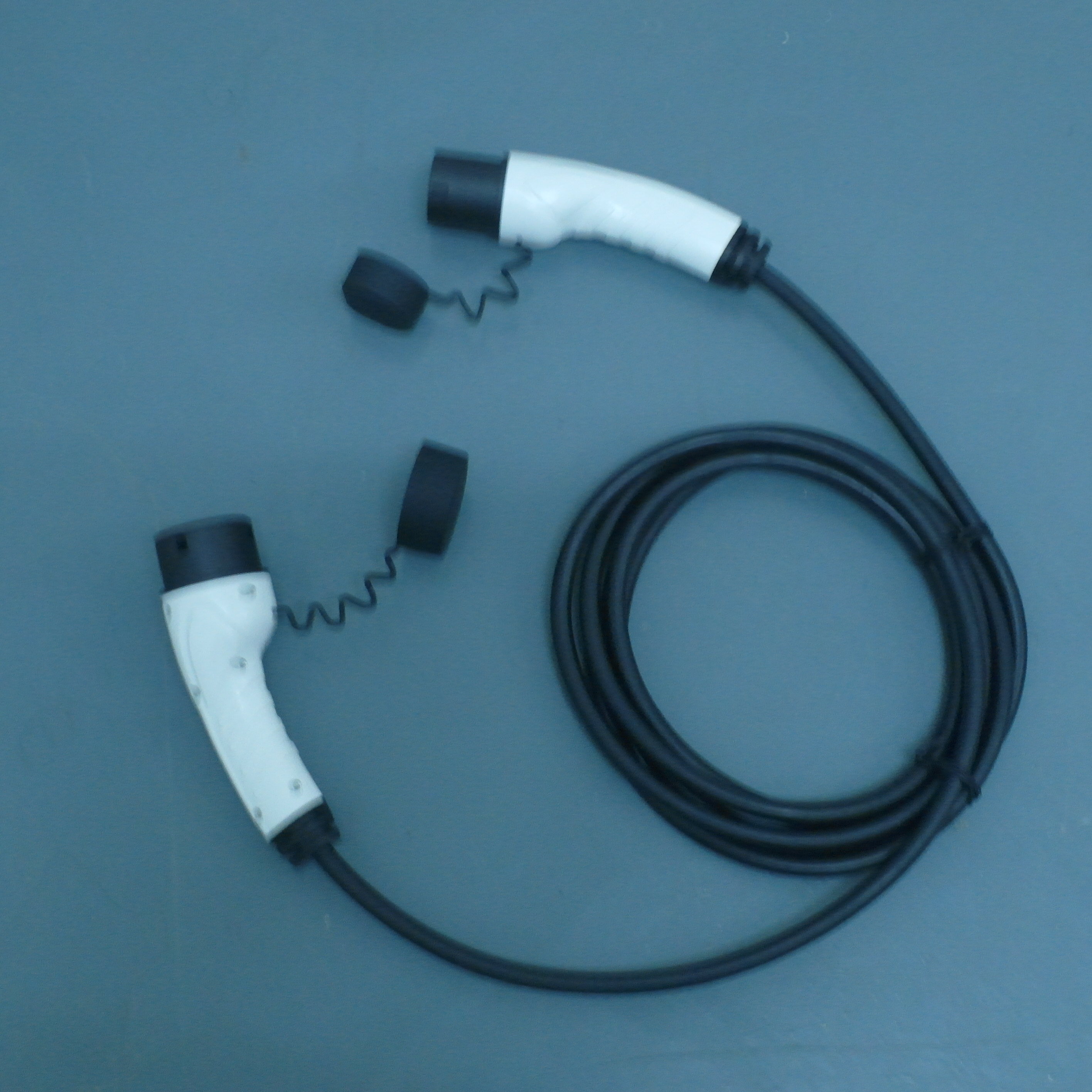

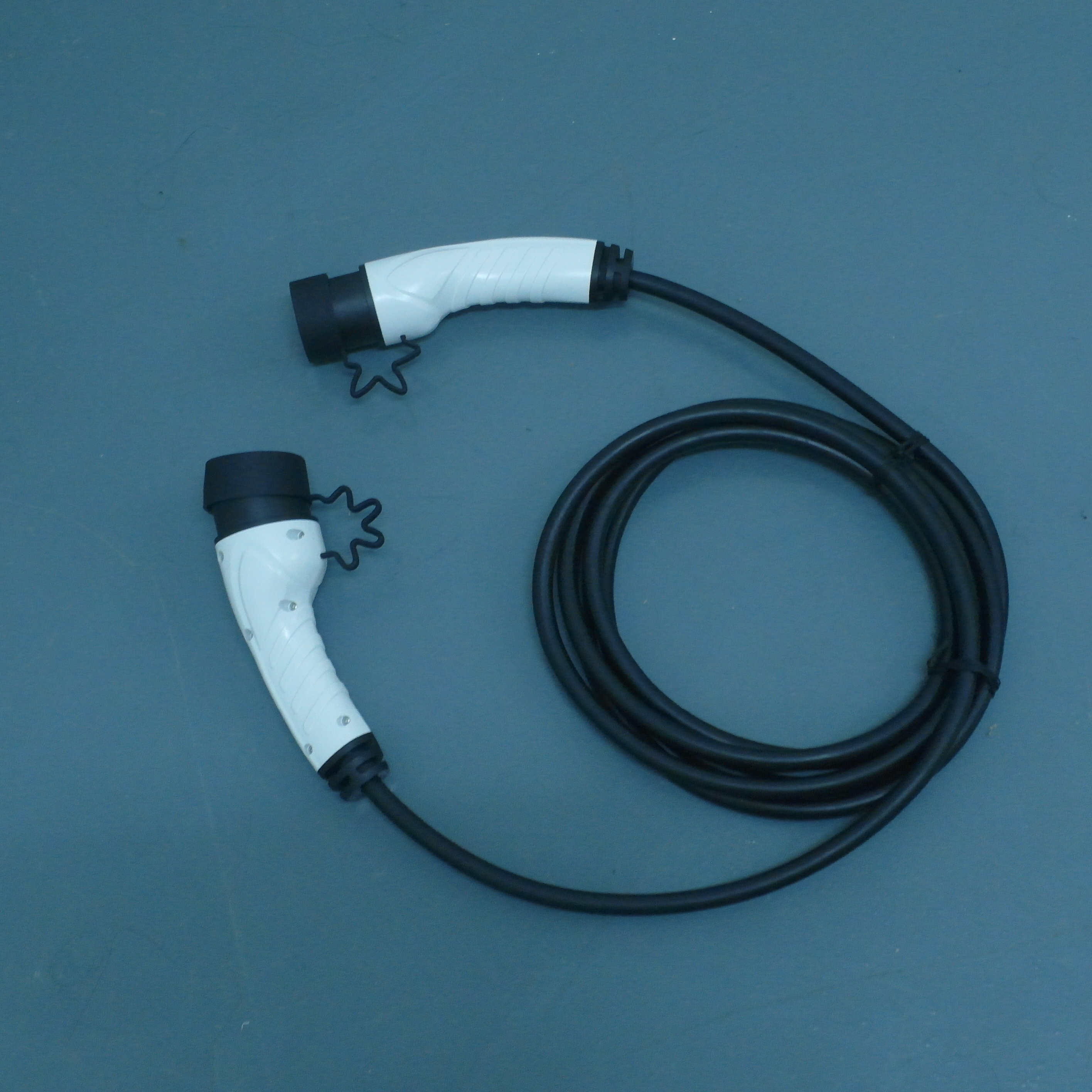

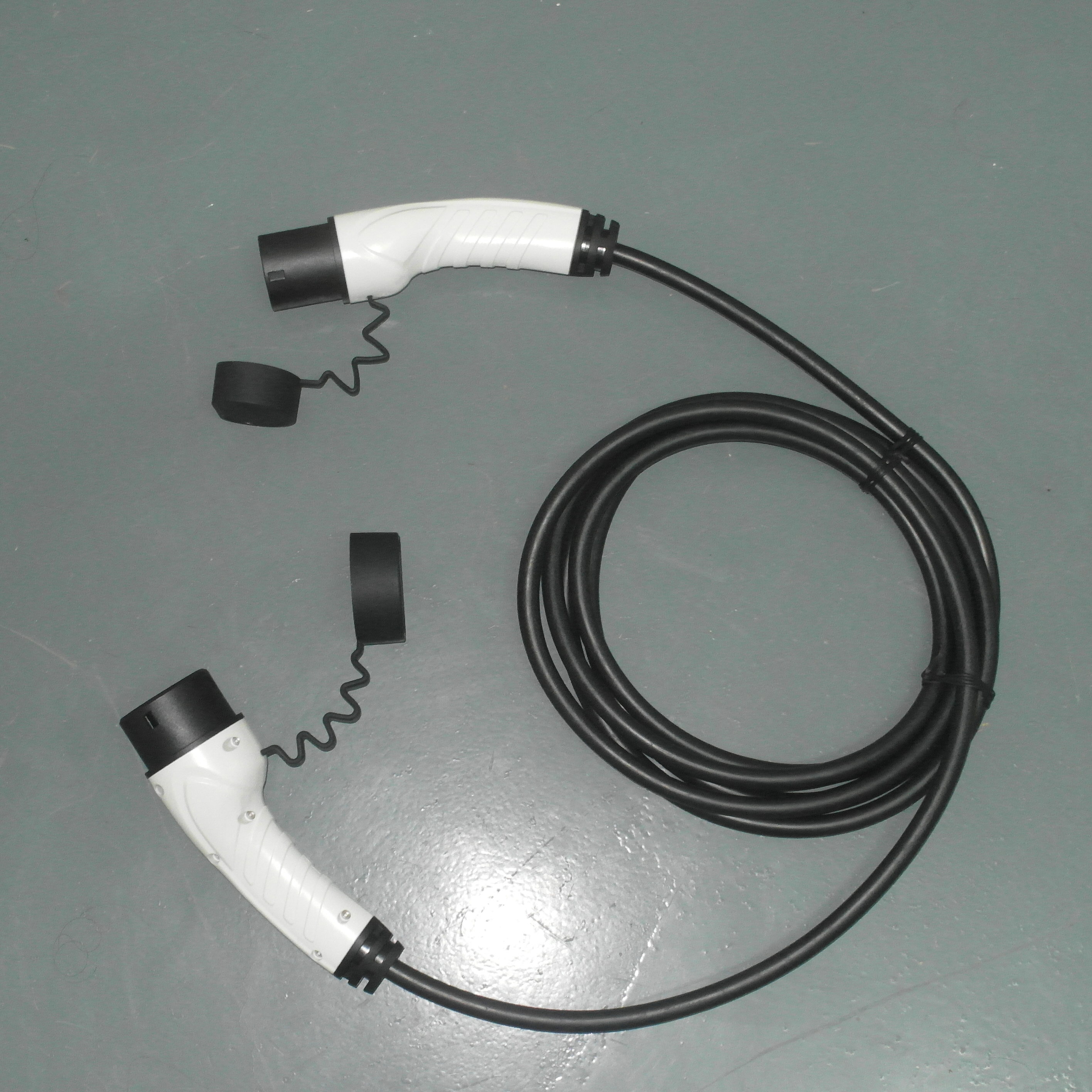

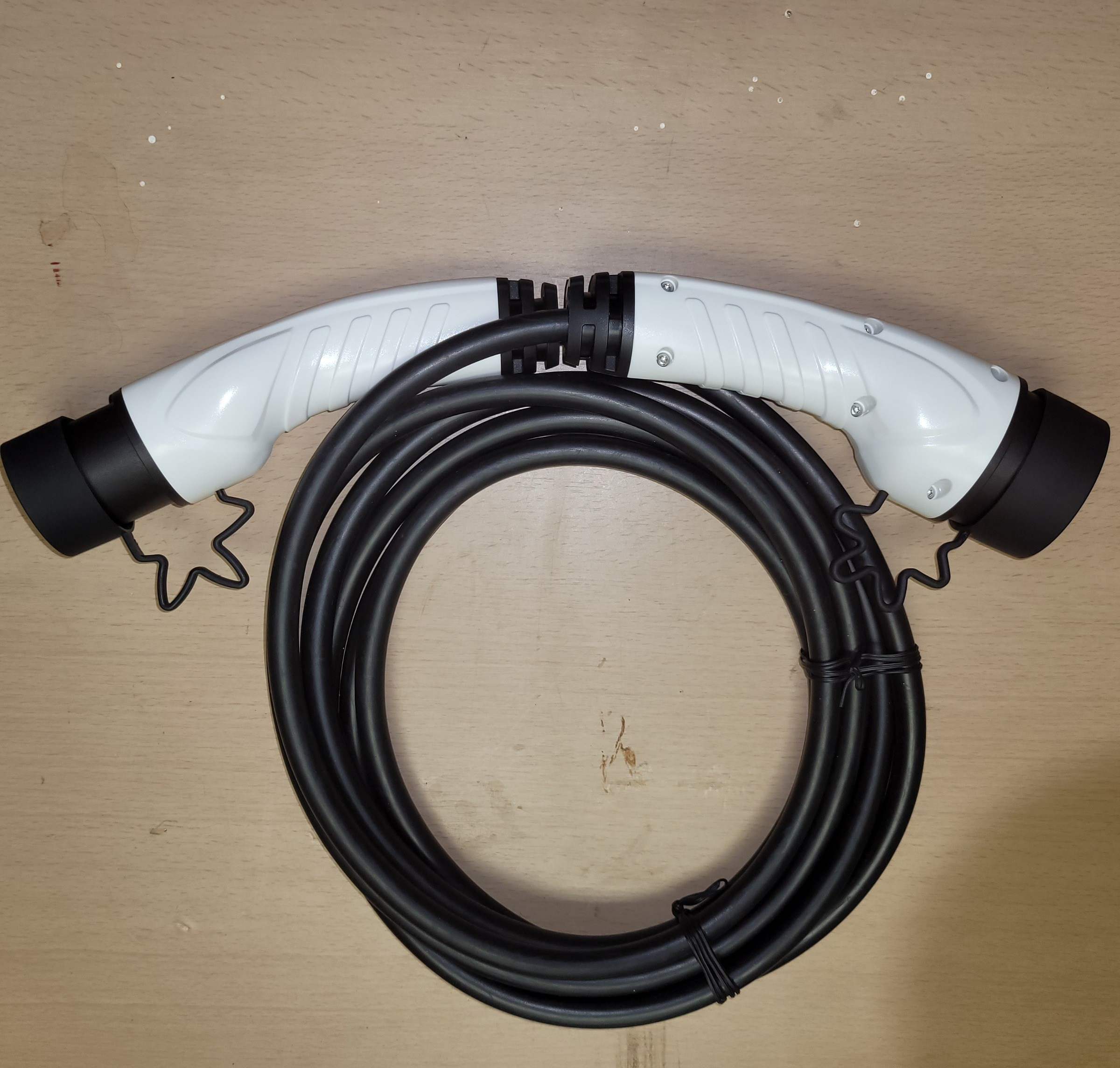

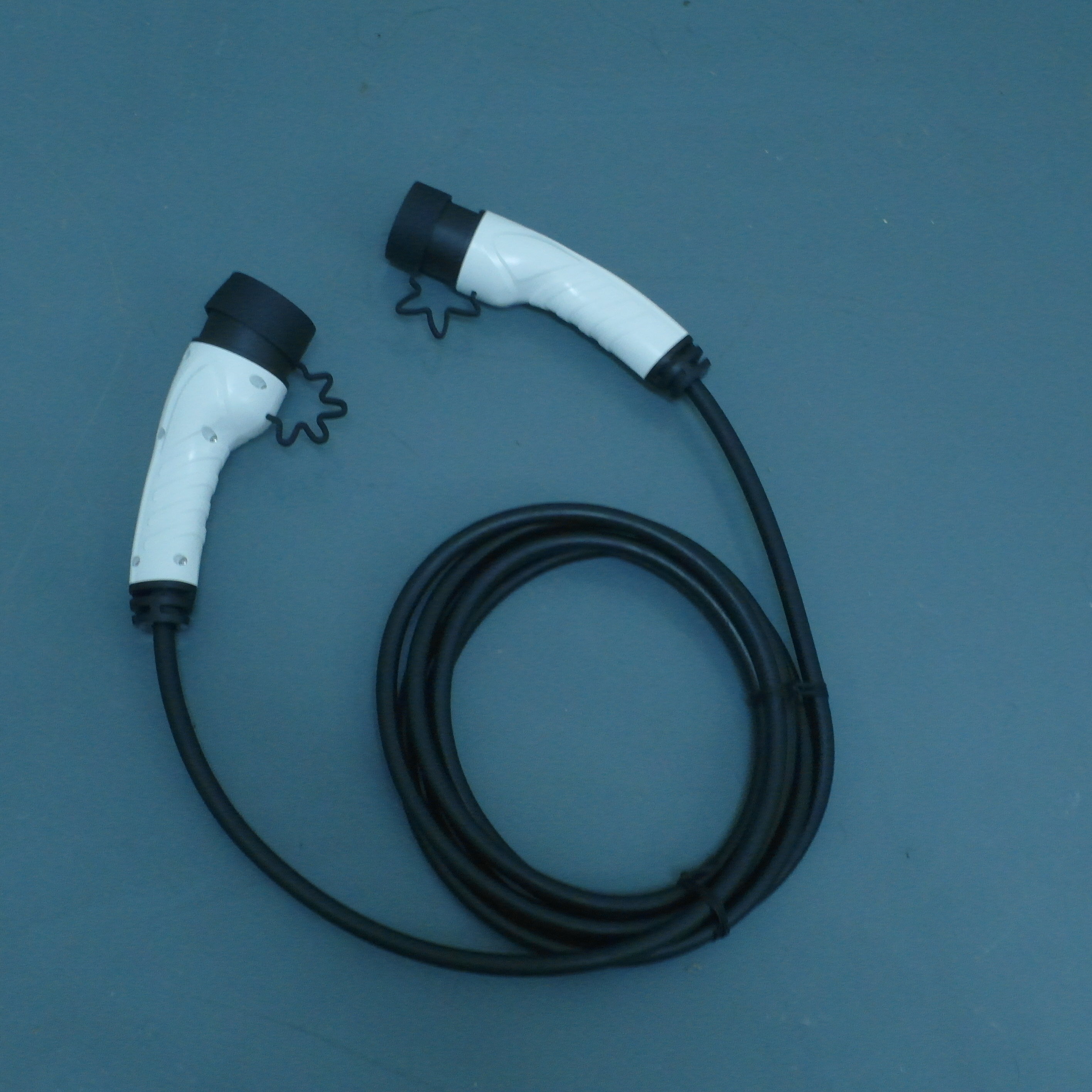

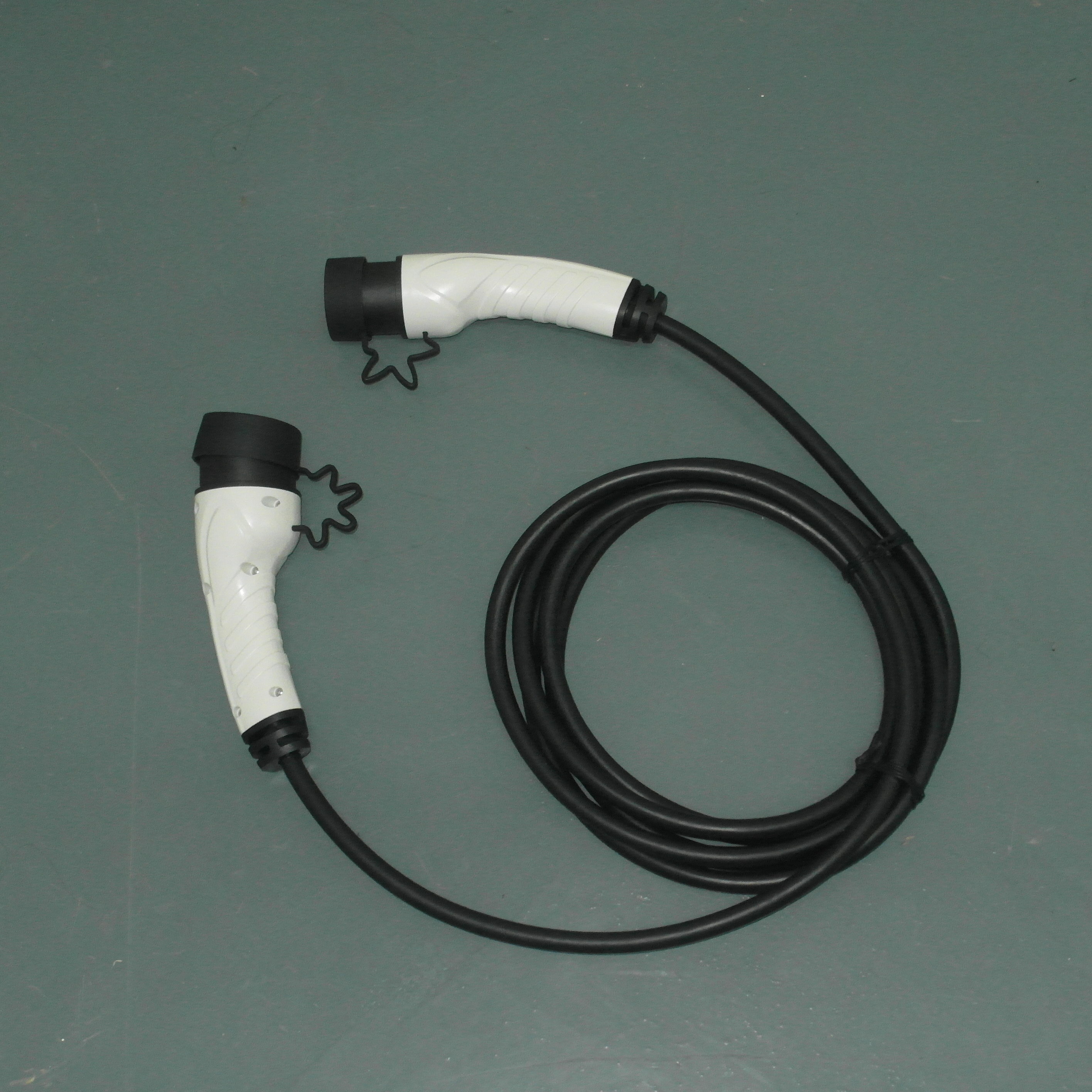

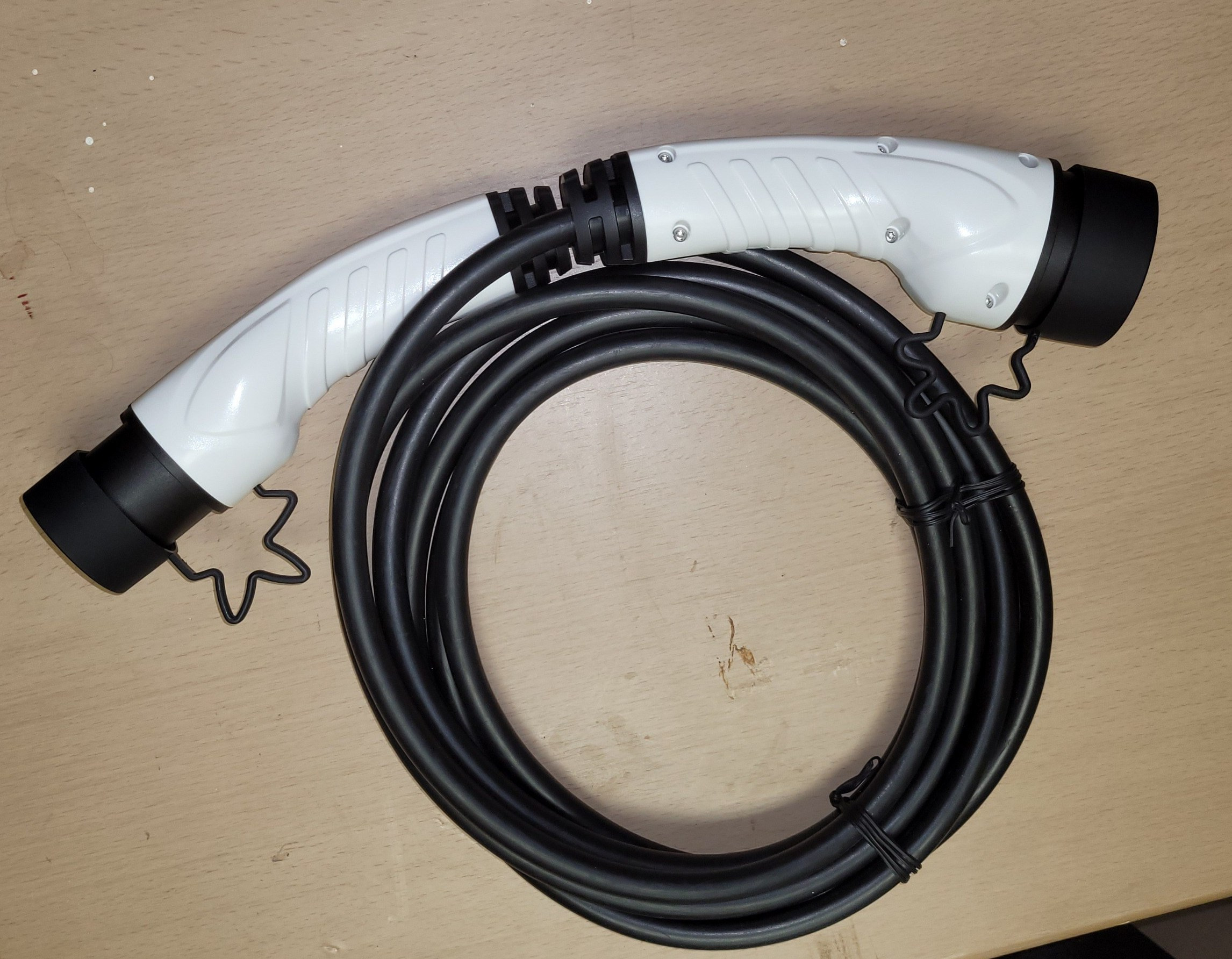

EV Charging plug
Share this page
US $59.40 - US $64.35
US $60.00 - US $65.00
Production Lead Time:
20 day(s)
Shipping Method:
By sea
Model No.:
32A-T2-T2-M3-1-ab-1aq
Feature:

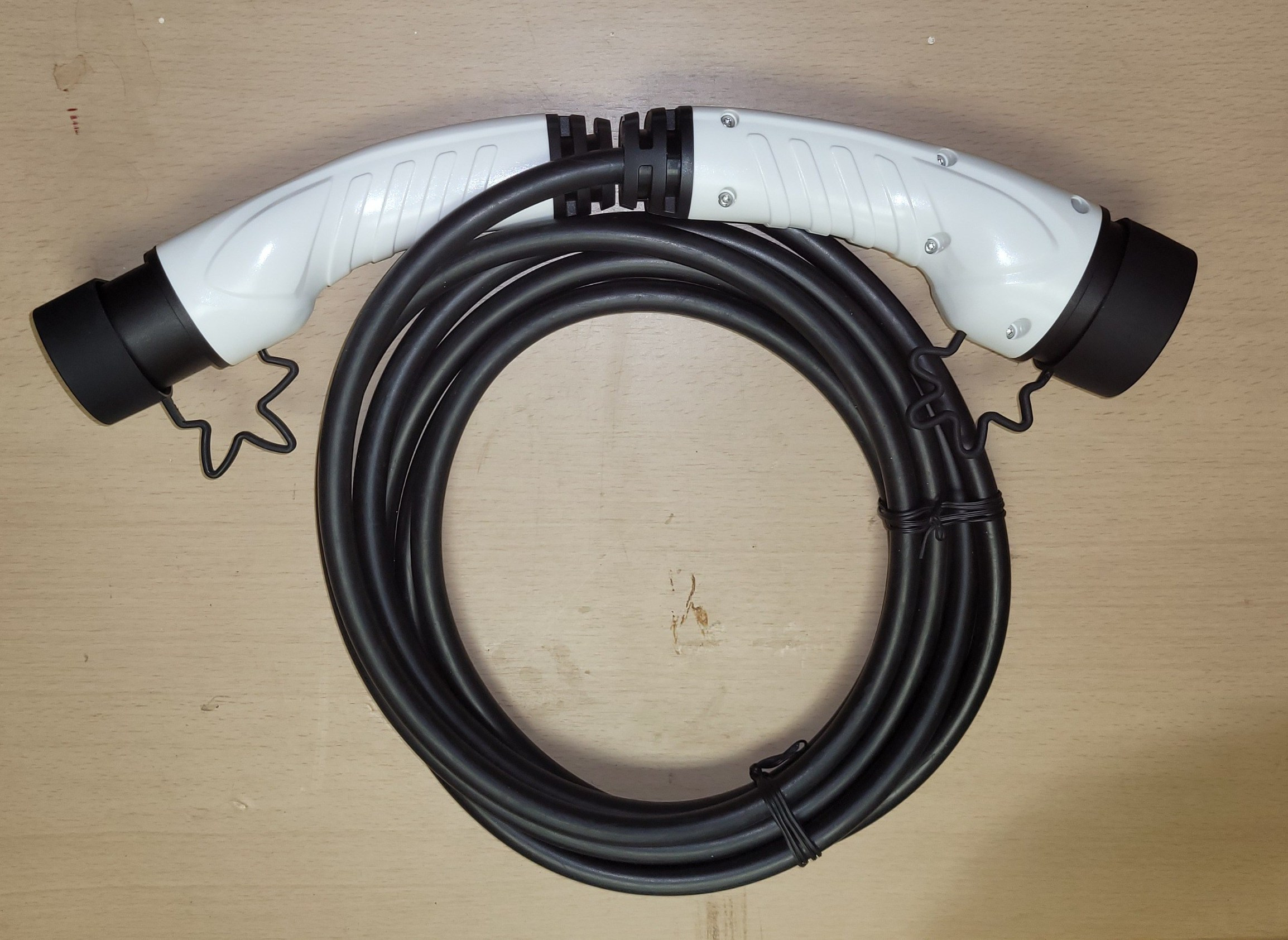

32A IEC type 2 to type 2 electric car charging cable,
Material:
PC
Pattern:
New
EV charging plug:
Yes
Description
Contact Supplier
Description


TECHNICAL DATA

EV charging plug

*Plug connector: IEC62196-2 type 2 to type 2.

*Isolation resistance: 500MΩ (1000V AC)

*High voltage resistance: 2600V AC

*Contact thermal rise: ≤50K

*Working humidity: 5%-95%non condensed

*Protection type: IP55 (plugged in)

*Flammability standard: UL94 V-0

*Withdrawal force: 45N…80N

*Pluging cycles: ≥10.000x (no load)

*Dimensions ICCPD: 185x67x44mm

*Operating temperature: -25°C...+55°C

*Mechanical life: no loading insertion > 10,000 time

*Cable material application

-Housing material: thermoplastic, flame retardant grade UL94V-0

-Insert pins: copper alloy, silver plated

*Connector plastic material: TPU + PC

Phase: 3

Nominal power: 21 KW

Voltage: 380V

Cable size: 5x6.0mm^2+1x0.75mm

Weight: 3.2 kg(5 meters)

             5.2 kg (10 meters)

Certificate: UKCA, CE, FCC, & RoHS

Phase: 1

Nominal power: 7.0 KW

Voltage: 250V

Cable size: 3x6.0mm^2+1x0.75mm

Weight: 2.5 kg(5 meters)

             4.2 kg (10 meters)

EV charging plug feature:

  • The cable is Plug and Charge. No special installation is needed.
  • It is perfectly safe.
  • Bend resistant cable strain relief: Protects against damage to the charging cable from over bending at the point the cable enters the plug.
  • Chip resistors: More stable than standard ‘axial’ resistors which can be vulnerable to fracturing if the plug is hit violently or dropped from a height.
  • Robust & flexible cable: Internal cable wiring is padded to fill all available space inside the cable, reducing stress during bending and twisting of cable. Optimised insulation thickness to ensure durability, safety and maximum flexibility.
  • Certificate: UKCA, CE, FCC & RoHS.  UL report is available after place order.


    HTS code: 8520 1090 00
