TECHNICAL DATA

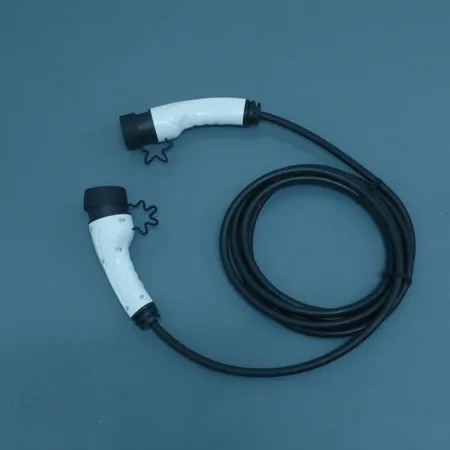

EV charging cable

*Input: 220-240V AC 50Hz (1-p)

*Charging plug: IEC62196-2 type 2

*Primary plug: Schuko / UK (Various type of plug for your selection)

*Nominal power: 3kW

*Output: 230V AC 13A

*No. of phases: 1-phase

*Contact resistance: ≤0.3mΩ (L/N)

*Isolation resistance: 500MΩ (1000V AC)

*High voltage resistance: 2600V AC

*Contact thermal rise: ≤50K

*Working humidity: 5%-95%non condensed.

*Protection type: IP55 (plugged in) IP54 (control box)

*It is CE compliant.

*Flammability standard: UL94 V-0

*Withdrawal force: 45N…80N

*Plugging cycles: ≥10.000x (no load)

*Operating temperature: -30°C to +50°C

*Cable material application

-Insert pins: copper alloy, silver plated

*Cable: 3*2.5mm^2x0.75mm^2

*Connector plastic material: TPU + PC

*Cable length & weight: 5 meters (2.0 kg)/10 meters (3.5 kg) for your choice.

*Cable tidy carry bag is an  option

Control Box Protection Function:

• Overvoltage
• Undervoltage
• Overcharge
• Overheat protection (interrupt charging at +85°C, continue at 60°C)
• Residual current
• Over current
• short circuit
• Electric leakage

The 13A IEC type 2 mode 2 EV charging cable allows you to recharge your electric vehicle safely in mode 2 on any household socket at a charging power of 3kW (at 13A). All you have to do is connect the terminal to the domestic standard socket and connect it on the vehicle side (type 2). Charging then starts automatically.

EV charging cable Certificate: UKCA, CE, FCC & RoHS.  UL report is available after place order.

HTS code: 8520 1090 00
