    Eagle Series
    Share this page
    US $380.00 - US $830.00
    Brand:
    SOGA
    Customised:
    Yes
    Feature:
    IP66, IK09-30~45℃, 600-1800W, 50m max height, Zigbee dimming, symmetric/asymmetric install, low maintenance.
    Material:
    Aluminum
    Is Dimmable:
    Yes
    Light Source:
    LED
    Model No.:
    Eagle Series
    Size:
    L628*W485*H210 ~ L1008*W757*H145mm
    Weight:
    10.59kg~35.72kg
    Dimming Solutions:
    0-10V Dimming, DALI, DMX, clo, Zigbee
    CRI:
    70 80 90
    CCT:
    3000K 4000K 5000K 5700K 6500K
    Beam Angle:
    20°, 40°, 60°, asymmetric A60, A60W
    Warranty:
    5 Yrs Warranty
    Driver:
    INVENTRONICS, MEANWELL, SOSEN
    Windload Test:
    17 class windload(56.1-61.2m/s, 240kg/square meter)
    L70 Hour:
    >100.000h
    Power Factor:
    >0.95
    Description
    Contact Supplier
    Description

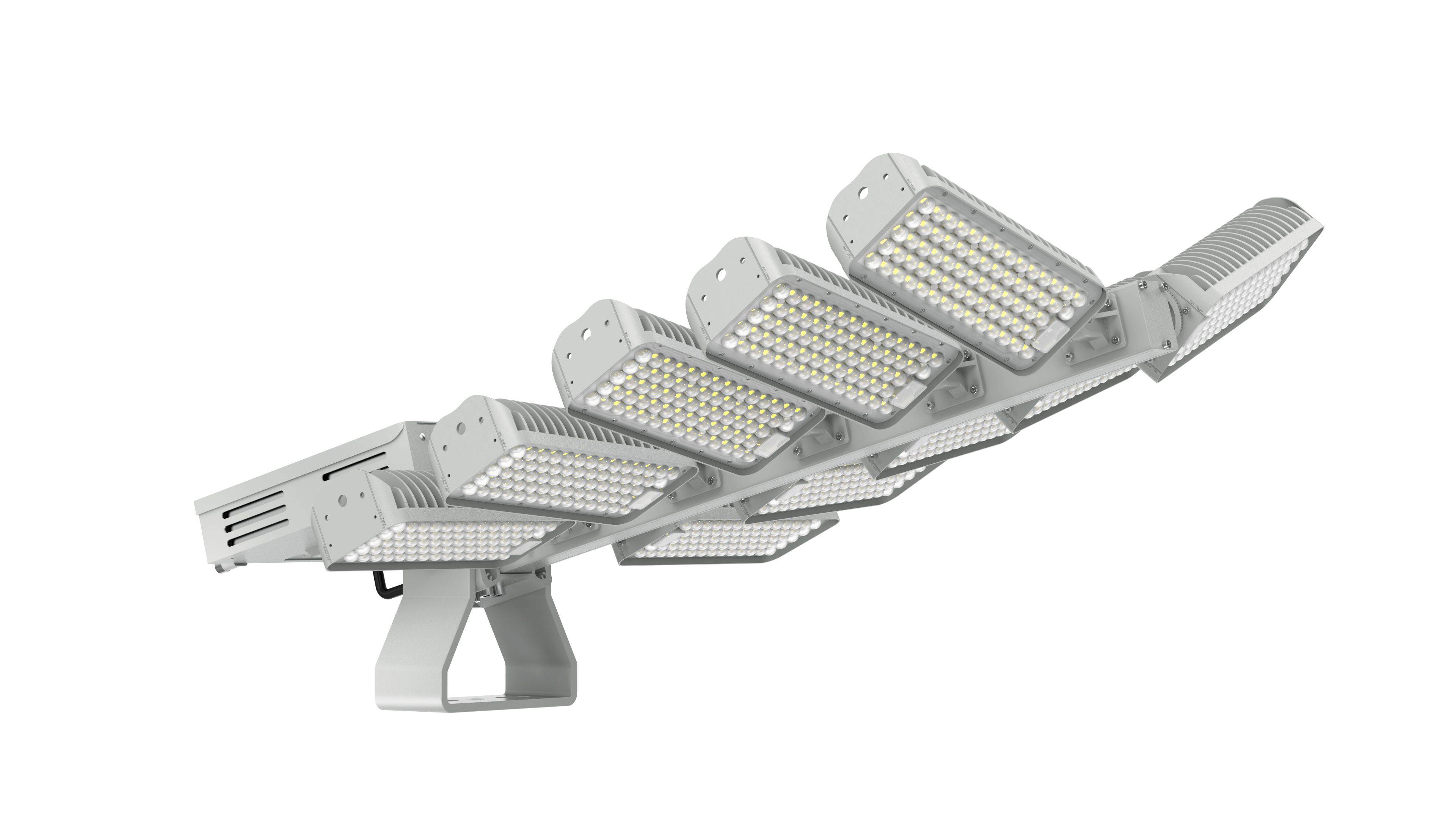

    SOGA patent design under the inspiration of Eagle, Like the eagle's eyes, it accurately confirms the target, free and flexible, and precisely illuminated.and also with other competitive features as below:

    Patent SOGA Streamlined Design
    High-quality Die-casting aluminium housing
    Vertically and Horizontally Adjustable Modular Design
    Smaller Size and Lighter Weight
    Anti-Glare & Obtrusive Light Control
    Easy Aiming Check One-size Screws for all adjustment
    Tool-free driver box
    Quick Connected Electrical Box
    Wireless Smart Control
    Wireless or DMX Entertainment System


    MODELSG-EG-720WSG-EG-1080WSG-EG-1440WSG-EG-1800W
    WATTAGE720W1080W1440W1800W
    MODEL QTY46810
    LUMEN EFFICIENCY170LM/W170LM/W170LM/W170LM/W
    LUMEN OUTPUT122400LM183600LM244800LM306000LM

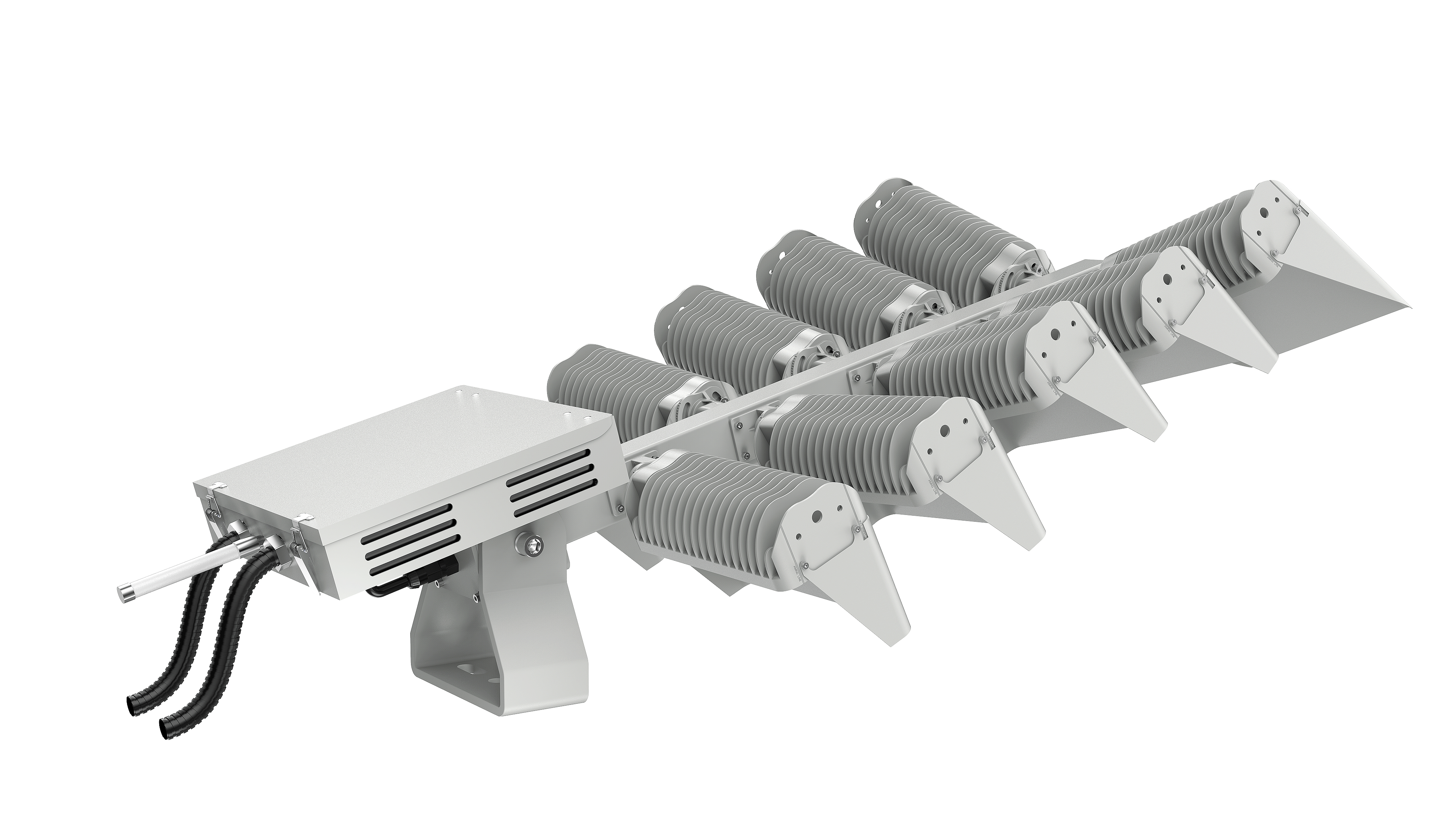

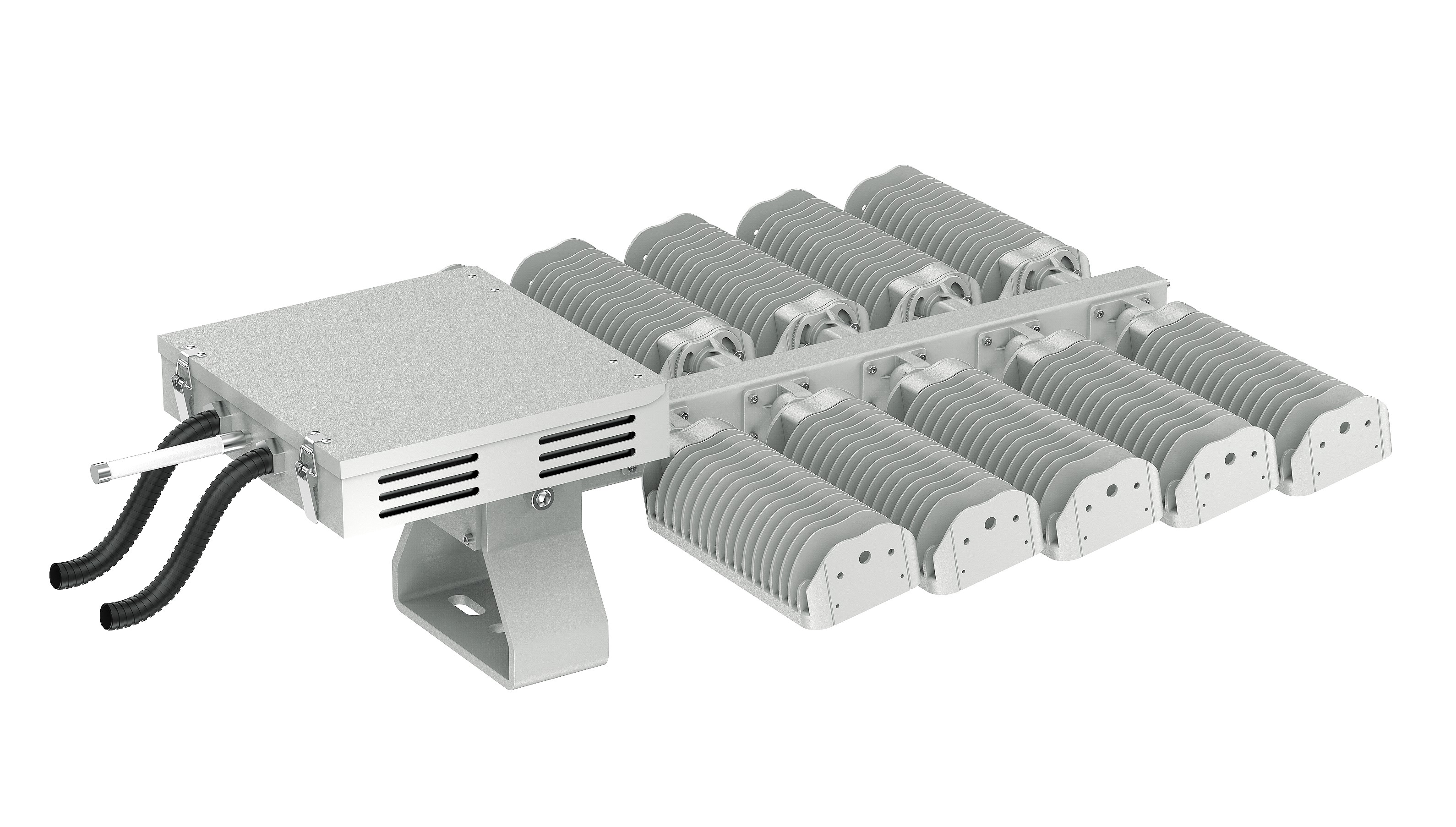

    Quick Connected Electrical Box

    SOGA offering the full set of waterproof Integrated electrical box when you need fix the drivers on the bottom of the pole. All drivers and full control system will be wired well ahead in SOGA factory. Waterproof plug and play connectors will be left out of the box for your quick connection.


    Detachable Driver Kits

    With its small size, drivers kits can be installed into the poles for faster installation and easier maintenance.


    No Exposed Cable

    All connecting cables are hided in the lamp housing with very well protection from the potential rugged weather or bird damage .at the mean time, make the lamp always looked tidy and clean.


    FAQ:

    Q1. What about the VS lead time ?

    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

    Q2. Does VS have any MOQ limit for LED Lights order ?

    A: Low MOQ, 1pc for sample checking is available.

    Q3. How do you ship the goods and how long does it take to arrive ?

    A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

    Q4. How does VS proceed an order for LED Fin High Bay Lights ?

    A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms the samples and places deposit for formal order.

    Fourthly We arrange the production.
