Eco-v 6-12W, 100-240Vac, Constant current LED Driver in small case
US $1.44 - US $1.62
US $1.60 - US $1.80
Production Lead Time:
7-35 day(s)
Shipping Method:
By sea, by air, by train, by courier
Application:
LED Luminaires
Brand:
SINOBASE
Feature:
Wide range of voltage input 100-240Vac
Material:
Plastic case
Light Source:
LED
Power Source:
AC Power
Description
Contact Supplier
Description

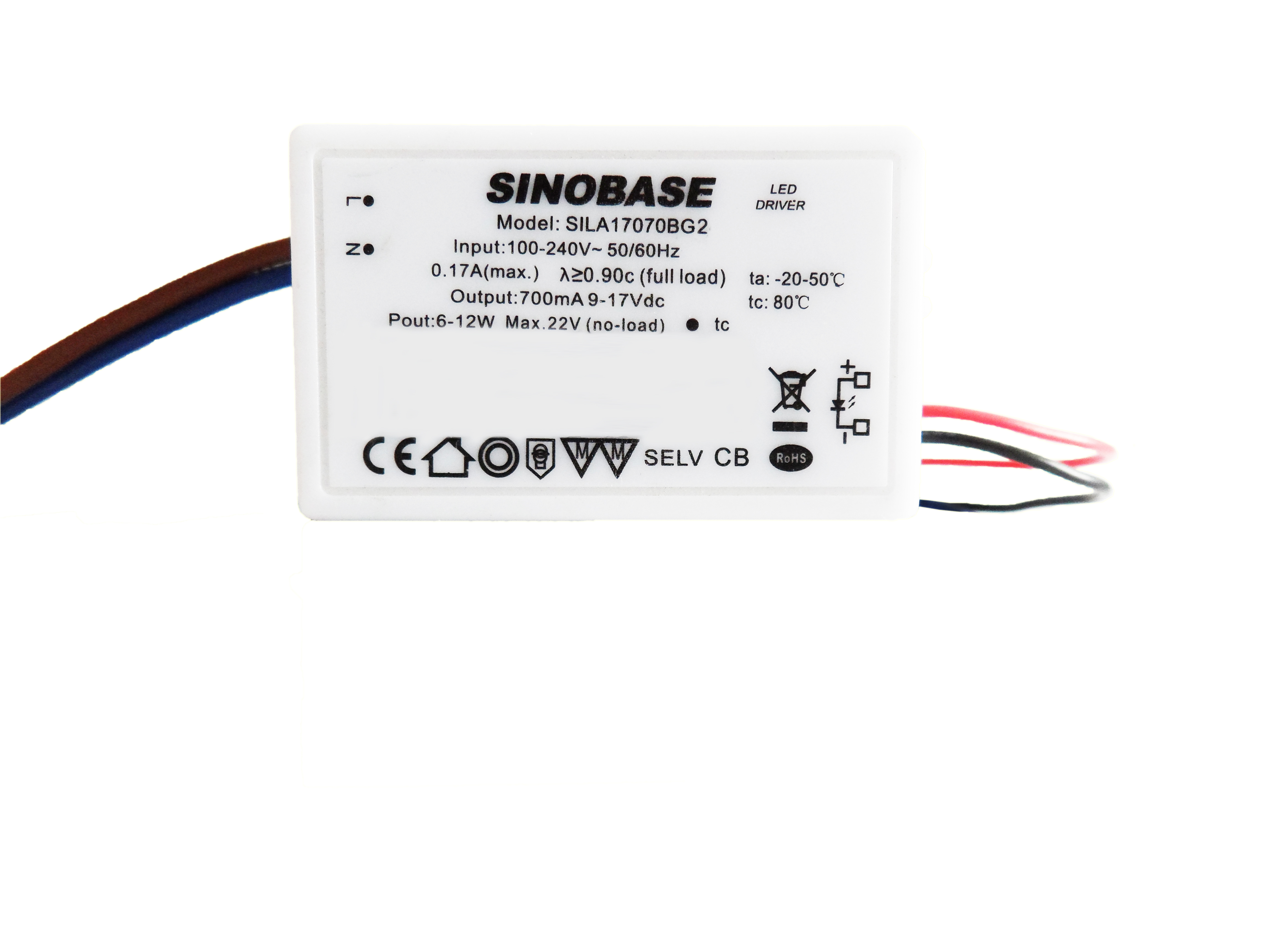

Small-sized water-proof LED driver (SinoBase) 6-12W, 100-240Vac Eco-v series
With 50,000Hrs warranty, optional for water-proof version
Features:
· Design in small size to fit your lamp；
· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
| Power | Model | U_input (Vac) | U_output (Vdc) | Rated I_output (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
6-12W | SILA60020BG2 | 100-240V～50/60Hz | 30-60 | 0.2 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA48025BG2 | 100-240V～50/60Hz | 24-48 | 0.25 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA40030BG2 | 100-240V～50/60Hz | 20-40 | 0.3 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA34035BG2 | 100-240V～50/60Hz | 17-34 | 0.35 | -20-50 | 80 | 11.9 | 69*35*23.5 |
6-12W | SILA30040BG2 | 100-240V～50/60Hz | 15-30 | 0.4 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA27045BG2 | 100-240V～50/60Hz | 13-27 | 0.45 | -20-50 | 80 | 12.15 | 69*35*23.5 |
6-12W | SILA24050BG2 | 100-240V～50/60Hz | 12-24 | 0.5 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA22055BG2 | 100-240V～50/60Hz | 11-22 | 0.55 | -20-50 | 80 | 12.1 | 69*35*23.5 |
6-12W | SILA20060BG2 | 100-240V～50/60Hz | 10-20 | 0.6 | -20-50 | 80 | 12 | 69*35*23.5 |
6-12W | SILA18065BG2 | 100-240V～50/60Hz | 9-18 | 0.65 | -20-50 | 80 | 11.7 | 69*35*23.5 |
6-12W | SILA17070BG2 | 100-240V～50/60Hz | 8-17 | 0.17 | -20-50 | 80 | 11.9 | 69*35*23.5 |
P.S.:
* The current step is 50mA, contact us for the specs outside of above tables.
* Option for glue potting or not as per you demand.
Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：
Design for all applicable LED luminaries with small-size led drivers, such as wall lamp, garden lamp, bollards, recessed light and other available luminaries, etc...
