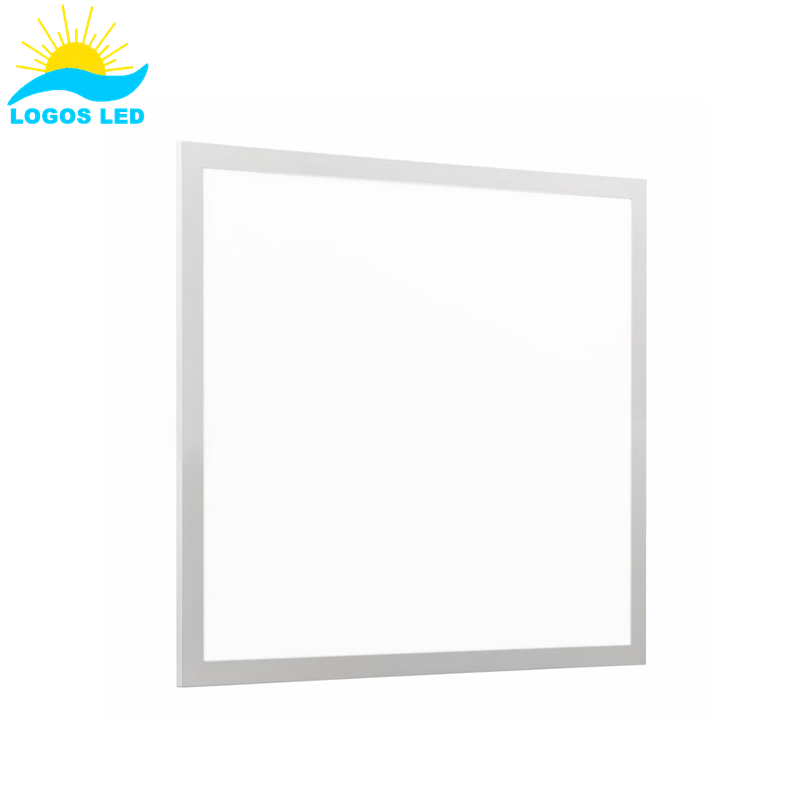

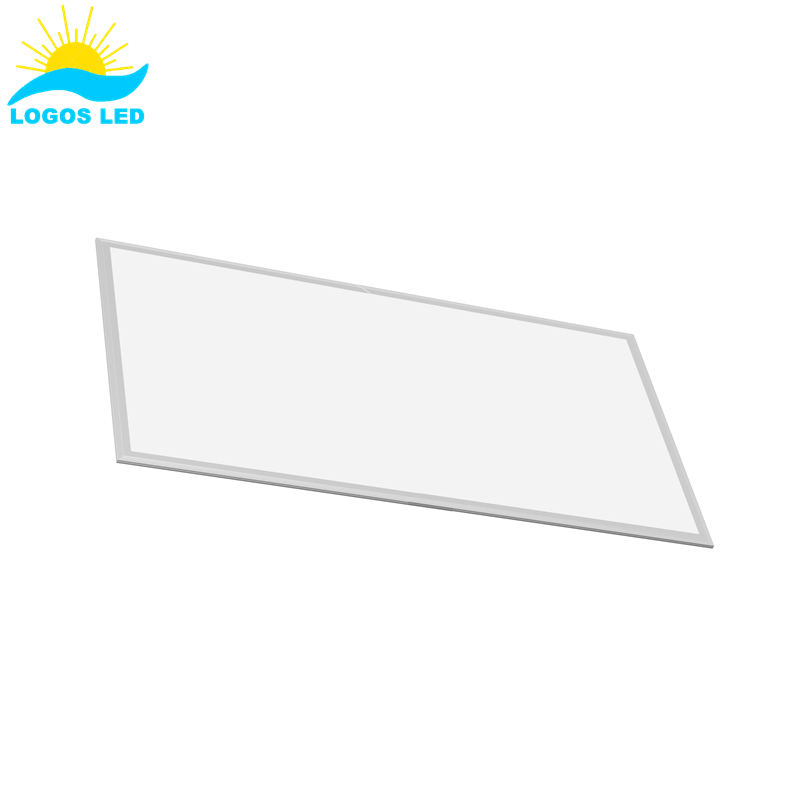

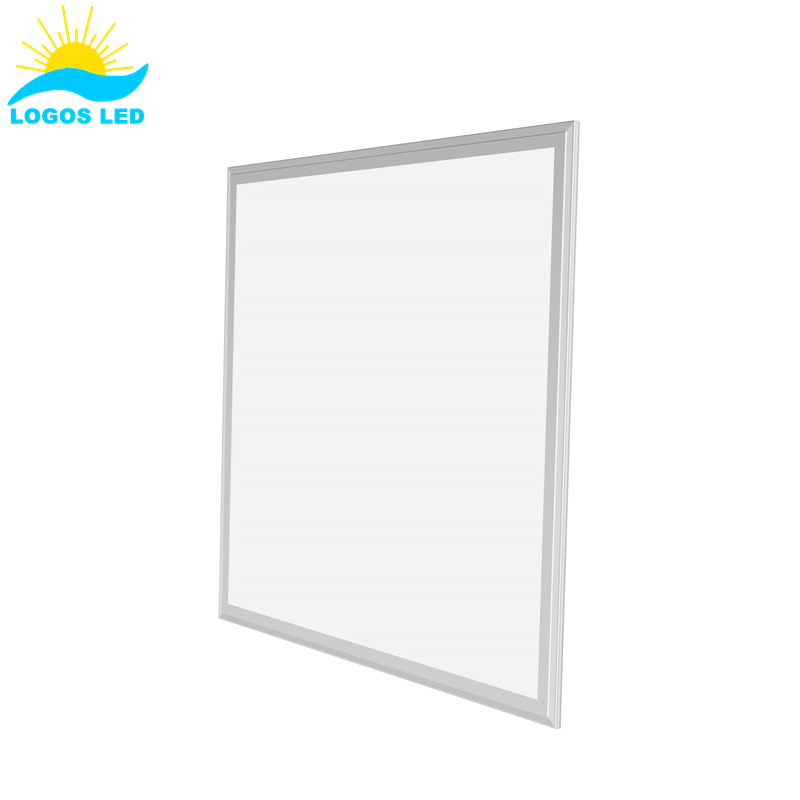

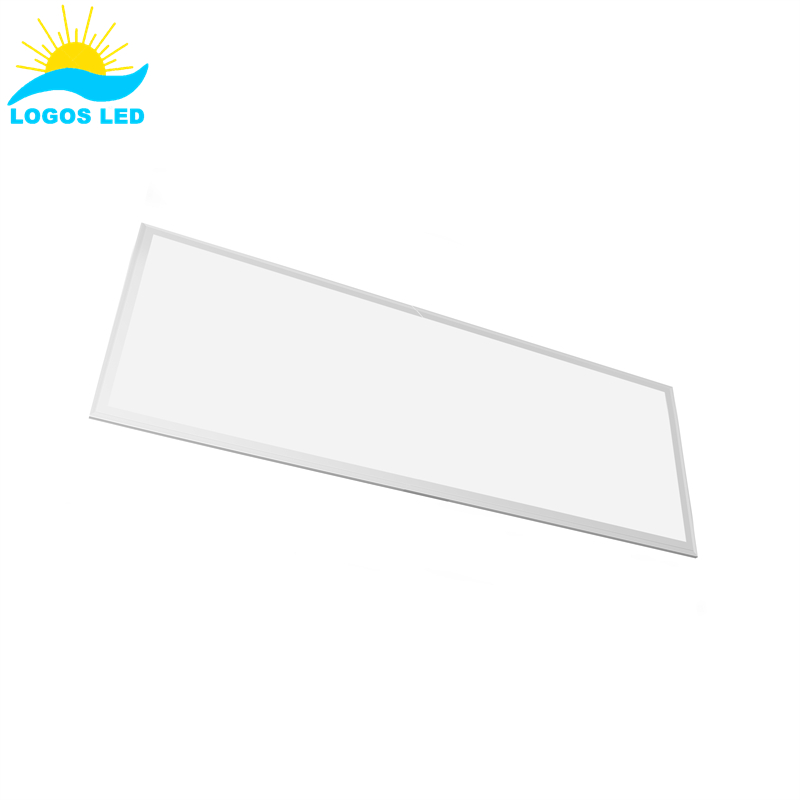

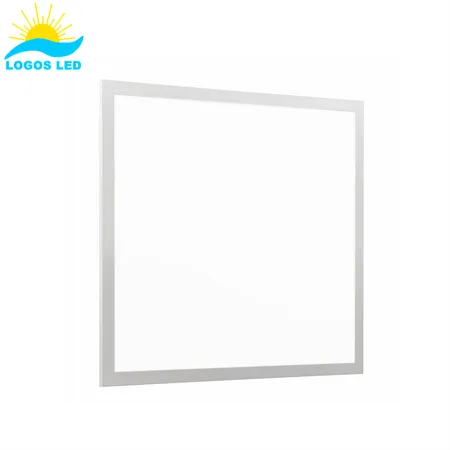

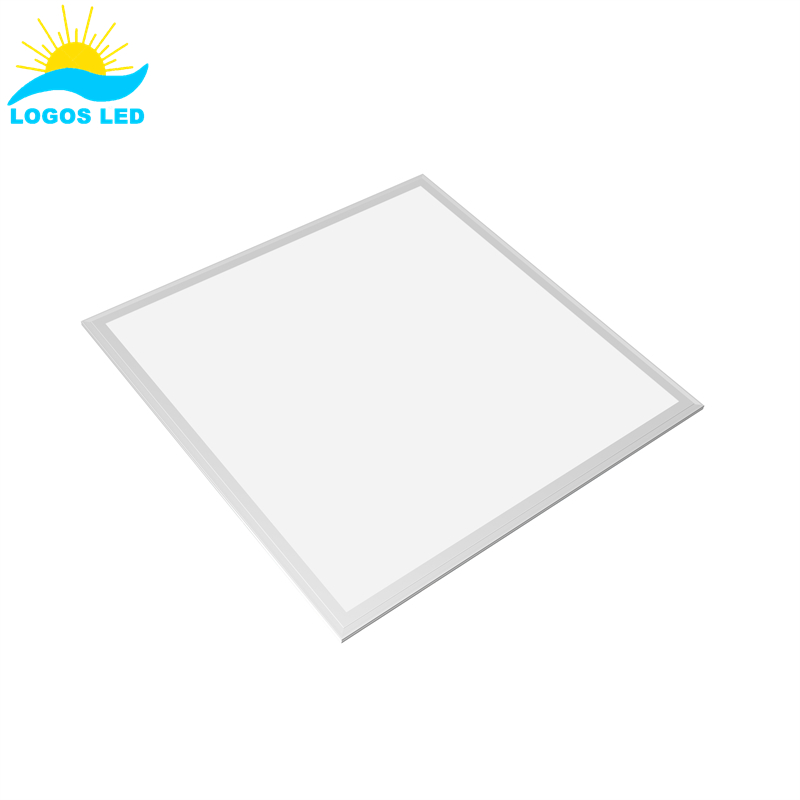

    Edge lit LED Panel Light
    Share this page
    US $10.00 - US $30.00
    Production Lead Time:
    15-20 day(s)
    Shipping Method:
    Express/Air/Train/Sea shipment on request
    Power:
    20W-120W
    Lumen Efficiency:
    100lm/w(130lm/w on request)
    CCT:
    3000/4000/5000/5700/6500K
    CRI:
    Ra>80(Ra>90 optional)
    LED Type:
    SMD4014
    Beam Angle θ/2:
    110°
    Light Decay Rate:
    Less than 3% in 6,000Hours
    Lifespan:
    ≥50,000Hrs
    Input Voltage:
    220-240VAC 50/60Hz
    Power Factor:
    PF>0.95
    THD:
    <15%
    Driver Brand:
    Philips/Osram/Lifud
    Material:
    Aluminum housing+PMMA LGP+Opal diffuser(Optional with Prismatic diffuser)
    Degree of Protection:
    IP40(IP65 on request)
    Finish:
    White
    Installation:
    Hanging/Mounting/Recessed
    Working Temperature:
    -30℃~+50℃
    Storage Temperature:
    -40℃~+70℃
    Certificate:
    CE, RoHS
    Warranty:
    5 years
    Optional Functions:
    Dimming on Request
    Description
    Certification & Document
    Contact Supplier
    Description

    LED panel lights are the ideal indoor lighting option for those looking for an energy-saving, low maintenance and wide illumination coverage lighting solution. The LED panel lights offer versatile mounting options as they can be fixed to the ceiling & walls and can be recessed/suspended/surface mounted taking less space making them perfect for compact spaces too.

    This luminaire is the ideal upgrade of existing fluorescent installations and provides a long-life, low maintenance solution with greater energy savings of up to 70% with an average life up to 50,000 hours. Whether used in commercial or private areas, the LED panel provides the right light in offices, hotels, restaurants, conference rooms, corridors, elevators, reception areas and many more spaces at all times.

    Features

    - PF>0.95, Power Efficiency>0.88, CRI>80;

    - Perfect Light Uniformity, LM-80-rated SMD LED Chips;
    - Saving more than 80% energy compared with traditional lighting fixtures;

    - High transmission rate PMMA Light Guide Plate, no yellowing;

    - Approved with CE, RoHS, etc;

    - 5 Years warranty.


    Certification & Document
    Certificate Name
    Issued By
    Certificate Type
    Valid Date
    LogosLED CE-EMC Cert for LED Panel Light
    Issued By
    LCS
    Certificate Type
    EMC
    Valid Date
    10 Aug 2020
    -
    (N/A)
    LogosLED CE-LVD Cert for LED Panel Light
    Issued By
    LCS
    Certificate Type
    CE
    Valid Date
    31 Aug 2020
    -
    (N/A)
    LogosLED RoHS Report for LED Panel Light
    Issued By
    LCS
    Certificate Type
    RoHS
    Valid Date
    25 Aug 2020
    -
    (N/A)
