Electric Car Charging Cable
US $59.40 - US $64.35
US $60.00 - US $65.00
Production Lead Time:
20 day(s)
Shipping Method:
By sea
Model No.:
32A-T2-T2-M3-2
Feature :

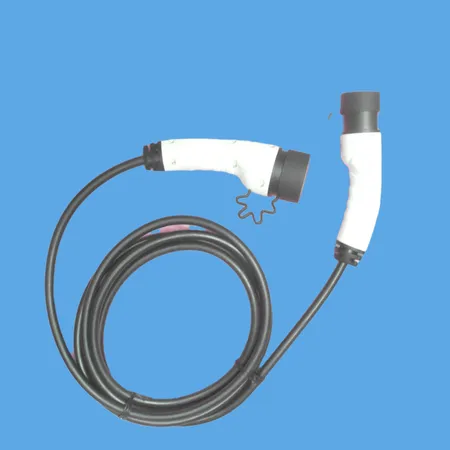

32A IEC type 2 to type 2 electric car charging cable
Material:
PC
Pattern:
New
Description
Contact Supplier
Description
TECHNICAL DATA *Plug connector: IEC62196-2 type 2 to type 2. *Isolation resistance: 500MΩ (1000V AC). *High voltage resistance: 2600V AC *Contact thermal rise: ≤50K *Working humidity: 5%-95%non condensed *Protection type: IP55 (plugged in) *Flammability standard: UL94 V-0 *Withdrawal force: 45N…80N *Plugging cycles: ≥10.000x (no load) *Dimensions ICCPD: 185x67x44mm *Operating temperature: -25°C...+55°C *Mechanical life: no loading insertion > 10,000 time. *Cable material application -Housing material: thermoplastic, flame retardant grade UL94V-0 -Insert pins: copper alloy, silver plated *Connector plastic material: TPU + PC |
Phase: 3
|
Phase: 1
- Nominal power: 7.0 KW.
- Voltage: 250V
- Cable size: 3x6.0mm^2+1x0.75mm
- Weight:
- 2.5 kg(5 meters)
- 4.2 kg (10 meters)
Feature:
- The cable is Plug and Charge. No special installation is needed.
- It is perfectly safe.
- Bend Resistant Cable Strain Relief: Protects against damage to the charging cable from over bending at the point the cable enters the plug.
- Chip Resistors: More stable than standard ‘axial’ resistors which can be vulnerable to fracturing if the plug is hit violently or dropped from a height.
- Robust & Flexible Cable: Internal cable wiring is padded to fill all available space inside the cable, reducing stress during bending and twisting of cable. Optimised insulation thickness to ensure durability, safety and maximum flexibility.
Electric Vehicle Charger Cable: HTS code 8520109000
