Electric Soldering Iron, Soldering Station
Share this page
Production Lead Time:
5 day(s)
Model No.:
LW936
Port:
Yantian
Type of Payment:
T/T, Western Union
Minimum Order Quantity:
1
Customised:
Yes
Description
Contact Supplier
Description

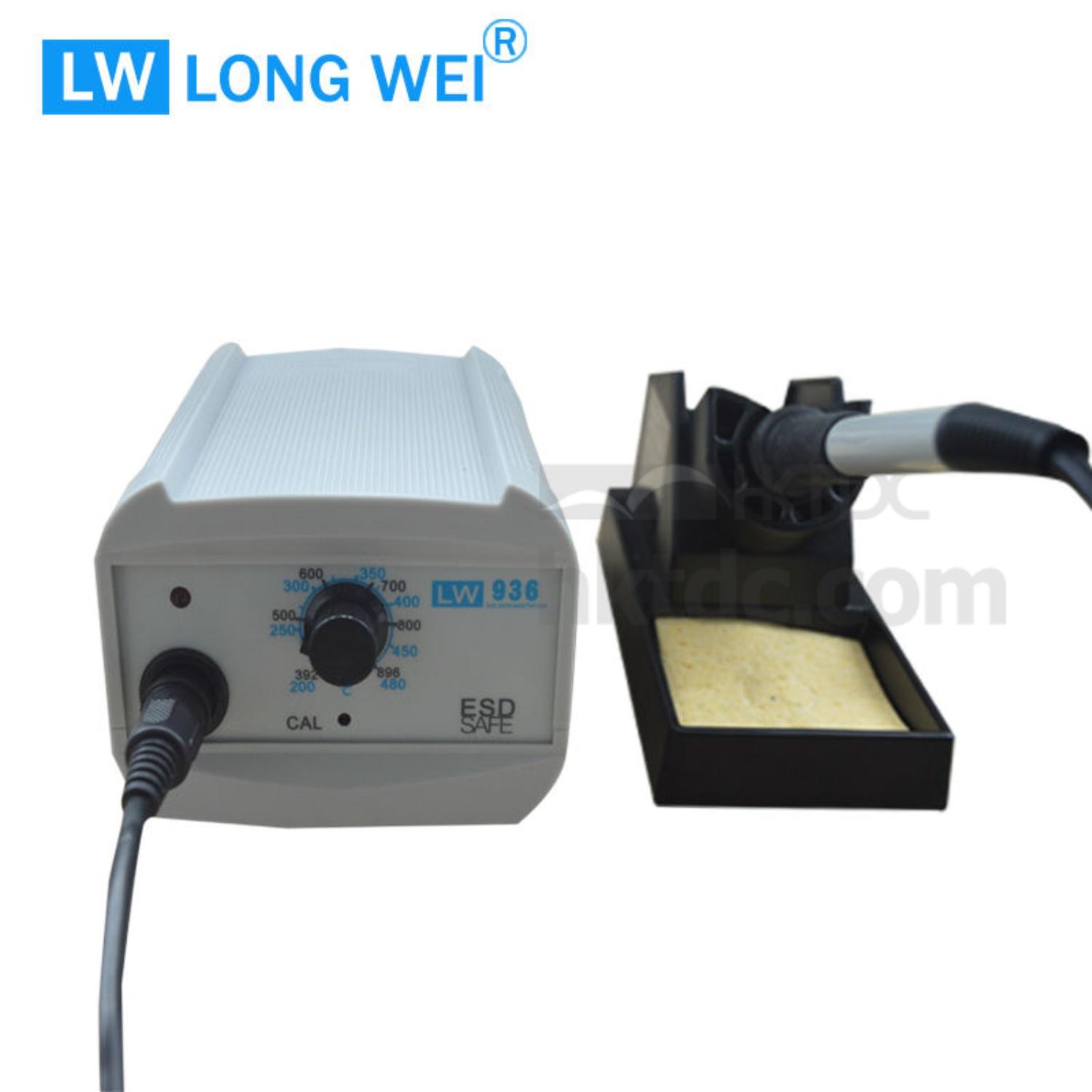

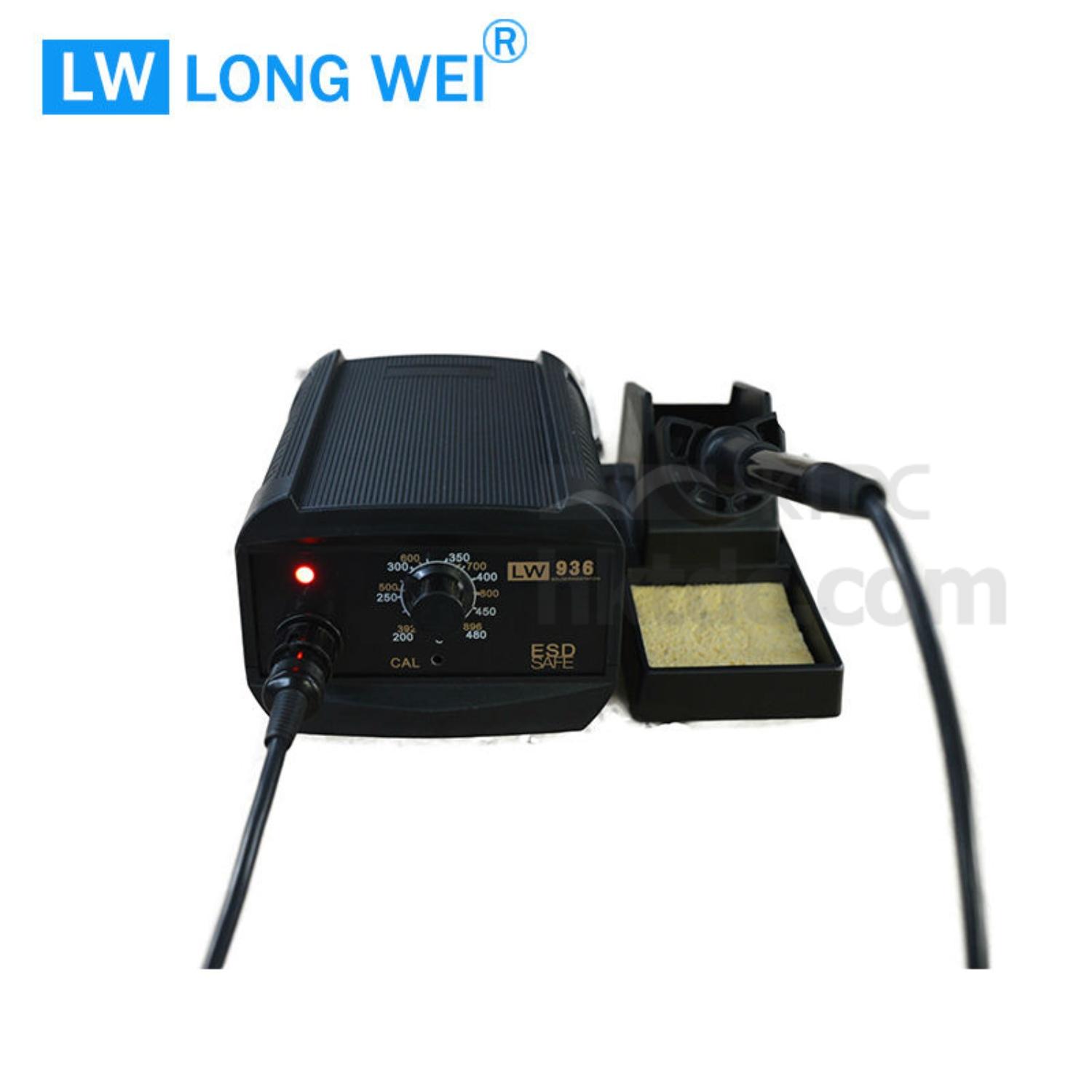

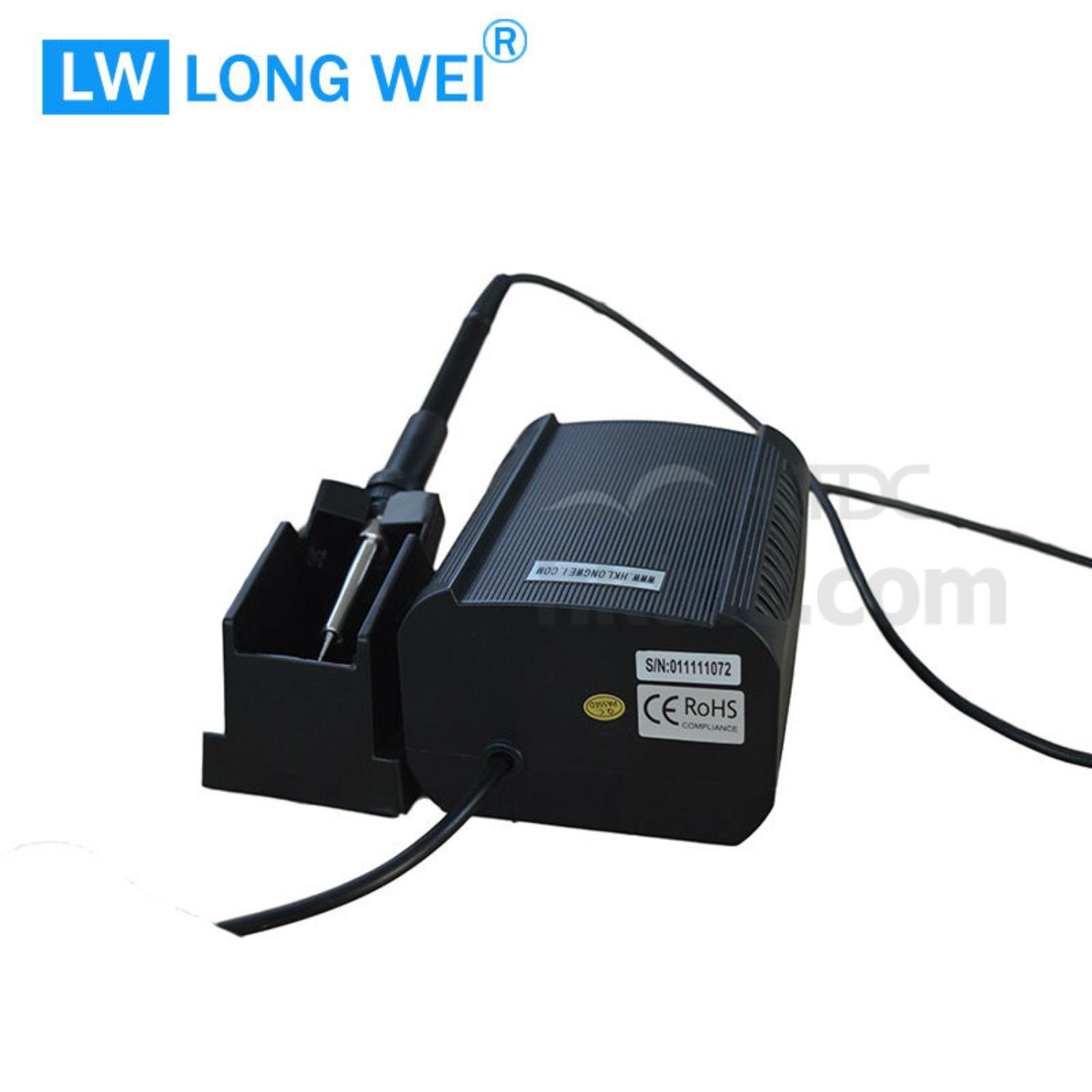

This soldering station has a heating element made of imported materials to ensure good heat resistance and long service. It offers a temperature setting range of 200 ~ 480 ℃ and ensures stable and accurate control. The handle comes in a special lightweight design and can be used for a long time without fatigue.

Features:
  • Whole welding machine uses electrical conductive materials, specially designed for preventing static electricity and clean indoor environment (ESD).
  • Heating element made of imported material with advanced technology for heat-resistance, long service life.
  • Heating element using low voltage AC source, to ensure the antistatic, no leakage, no interference.
  • 200 ~ 480 ℃ temperature setting and stable and accurate control.
  • Rapid warming.
  • Special lightweight handle, use for a long time without fatigue.
  • Completely isolated heating element within the main power grid.
  • Soldering iron parts in aviation joint and high temperature resistance of antistatic silicone rubber (silicone) cable connected to the temperature control table.
  • Unique temperature locking devices, guard against temperature platitude.
  • Separation design, easy to put.
  • Model: LW942/LW936/LW936B.

Specifications:
  • Input voltage: 220VAC±10% 50Hz or 110VAC±10% 60Hz.
  • Output voltage: 24VAC.
  • Power consumption: 60W.
  • Temperature control range: 200℃~480.℃
  • Setting mode: Knob to adjust.
  • Temperature stability: ±5℃(static state).
  • Display mode: index dial.
  • Max ambient temperature: 40℃.
  • Proof mode: calibrate simulation.
  • Temperature lock mode: mechanical.
  • Tip over the ground impedance<2ohm.
  • Tip over the ground voltage<5mV.
  • Solder tip: LW-20-I.
  • PTC: 60W with core ceramic heater.

Applications:
  • Electronic industry for the electronic product assembly.
  • Used in scientific research department to product development.
  • For the electronics maintenance in the electronic industry.
  • Enterprise or business unit’s electrical soldering work.
  • Electronic technology enthusiasts for the electronic product assembly.
  • Apply to all kind of the college’s electrician lab.
