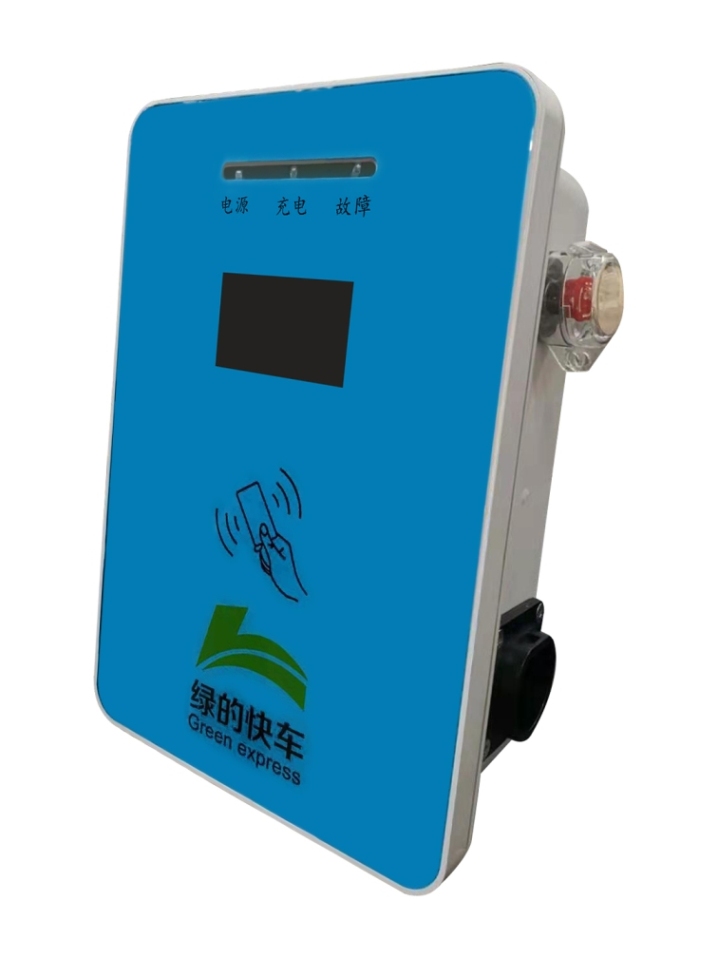

Electric Vehicle Column Type Charging Pile

Cgn New Energy Technology Ltd

Production Lead Time:

30 day(s)

Model No.:

EVACZ07-1

Brand:

CJNOO

Package:

Yes

Description

Contact Supplier

Number of guns: single Input voltage : single-phase 220V (AC) Rated current : 32A Rated frequency: 50 ±5 HZ Rated power : 7KW Charging
Method: password start, swipe start, plug and play, sweep code start Charge mode : auto-full, time mode, power mode, amount mode, schedule mode
Overcurrent protection rated action values : Greater and equal to 35.2A
Overpressure protection rated action value : Greater and equal to 264Va
Under pressure, protection rated action value: Less and equal to 176Vac
Leakage protection rated action value: 30mA
Leakage protection rated action time: less and equal to 0.1s
Communication interface: RS-485, Ethernet, GPRS, 4G
Charging interface standard : GB/T20234-2015
Protection class : IP54 Operating temperature : -20C to 50C Storage temperature : -30 to 70C
Allow a maximum altitude : 2000 m
Allow relative humidity : 0-95% (no condensation)
Connector mechanical operation life : 10,000 times
Average time between failures MTBF : 8,796h
Structure size (mm) : 1500 X 285 X 190
Weight (Kg) : less and equal to 25kG
