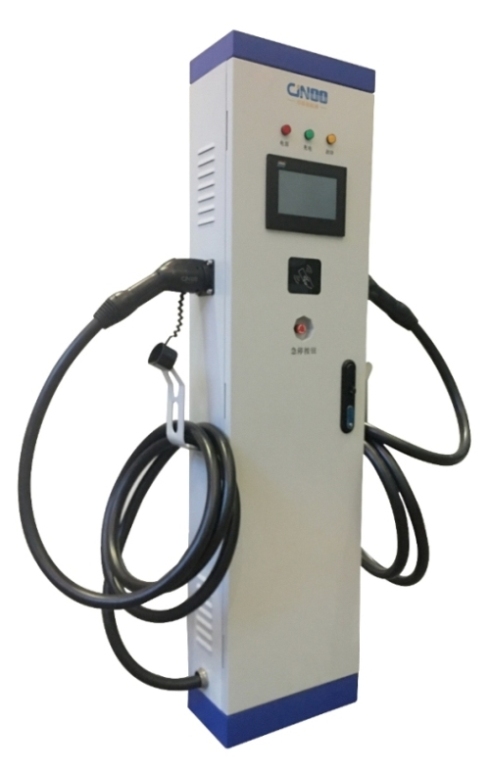

Electric Vehicle Vertical two-gun AC charging pile
Share this page
Production Lead Time:
30 day(s)
Model No.:
Contact Supplier
  • Product model : EVACL07-2 No. of Gun : two guns Input voltage : single-phase 220V (AC) Rated current : 32A
  • Rated frequency : 50 ± 5Hz Rated power : 14KW Display : 7.0 inch highlight touchscreen
  • Charging Method : password start, swipe start, plug and play, sweep code start Charge mode : auto-full, time mode, power mode, amount mode, appointment mode
  • Overcurrent protection value : greater and equal to 35.2A (unrecoverable)
  • Overvoltage protection value : greater and equal to 264Vac
  • Undervoltage protection value : Less and equal to 176Vac
  • Short-circuit protection : unrecoverable and requires human intervention
  • Leakage protection value : 30mA Leakage protection time Less and equal to 0.1s Communication interface : RS-485, Ethernet, GPRS, 4G
  • Charging interface standard : GB/T20234-2015 Protection class : IP54
  • Operating temperature : -20C to 50C Storage temperature : -30C to 70C
  • Allow a maximum altitude : 2000 m
  • Allow relative humidity : 0-95% (no condensation)
  • Connector mechanical operation life : 10,000 times
  • Average time between failures MTBF : 8,796h
  • Structure size (mm) : 1500 X 375 X 190
  • Weight (kG) : less and equal to 35kG
