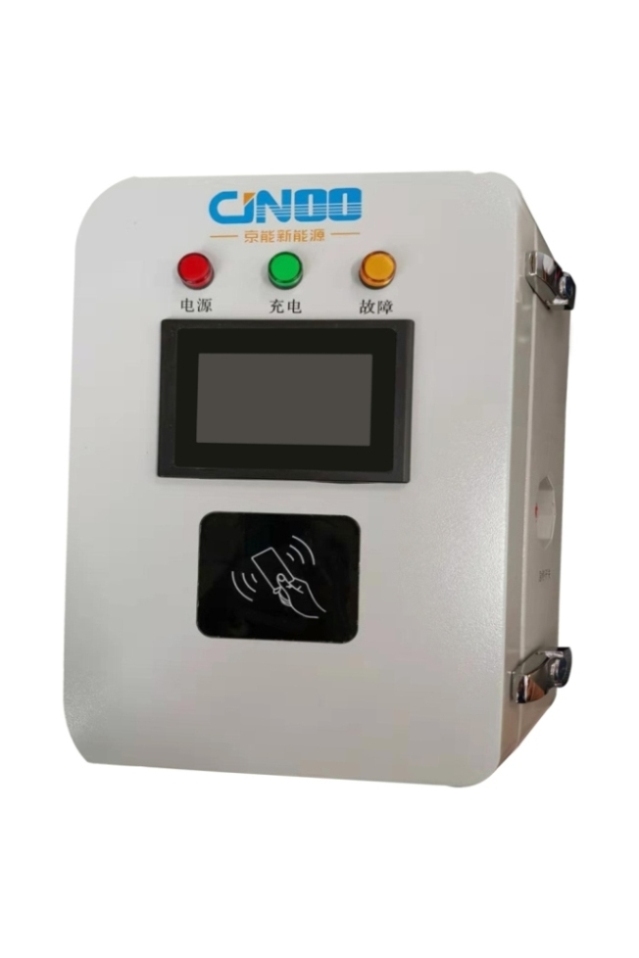

Electric Vehicle Wall-Mounted AC Charging Pile
Production Lead Time:
30 day(s)
Model No.:
EVACB07-1
Brand:
CJNOO
Package:
Yes
Description
Contact Supplier
Description
- Number of gun : single shot Input voltage : single phase20V (AC)
- Rated current : 32A
- Rated frequency : 50 ± 5Hz
- Rated power : 7KW
- Charging Method : password start, swipe start, plug and play, sweep code start Charge mode : auto-full, time mode, power mode, amount mode, appointment mode Overcurrent protection rated action value : greater and equal to 35.2A (unrecoverable)
- Overpressure protection rated action value : greater and equal to 264Vac Under pressure protection rated action value : less and equal to 176Vac Leakage protection rated action value : 30mA
- Leakage protection rated action time : less and equal to 0.1s
- Communication interface : RS-485, Ethernet, GPRS, 4G Charging interface standard : GB/T20234-2015 Protection class : IP54
- Operating temperature : -20C to 50C Storage temperature : -30C to 70C Allow a maximum altitude : 2000 m Allow relative humidity : 0-95% (no condensation) Connector mechanical operation life : 10,000 times
- Average time between failures MTBF : 8,796h
- Structure size (mm) : 400 x 285 x 190
- Weight (KG) : less and equal to 15kG
