Electrical Oscilloscope
Model No.:
MOS-6103
Colour:
White
Description
Contact Supplier
Description

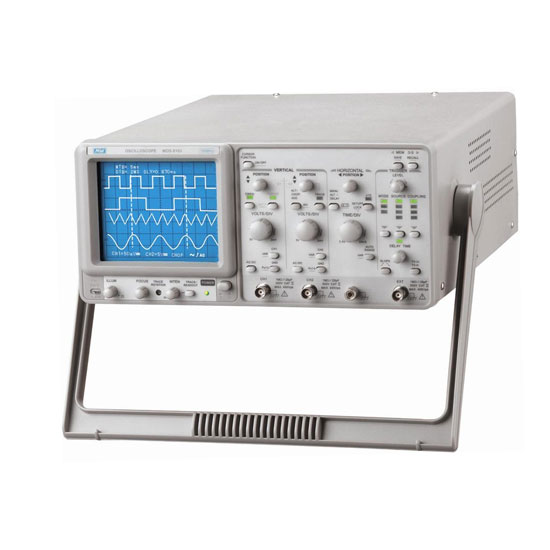

This electrical oscilloscope comes with a built-in 6-digit universal counter. The 10 sets of memory allows you to store and recall the data conveniently. This electrical oscilloscope with LED indicators also has a buzzer alarm.
- SMD technology.
- 100MHz bandwidth.
- High stability and reliability.
- TV synchronization.
- Trigger signal output.
- Z-axis modulation input.
- Cursor measurement function.
- Sweep time: 50nS-50mS.
- Panel setting: vertical.
- 1-2-5 sequence.
- Sensitivity accuracy: 3%.
- Repetition frequency: approx.250KHz.
- Trigger coupling: AC, DC, HFR, LFR.
- Trigger slope: +/- polarity or TV.
