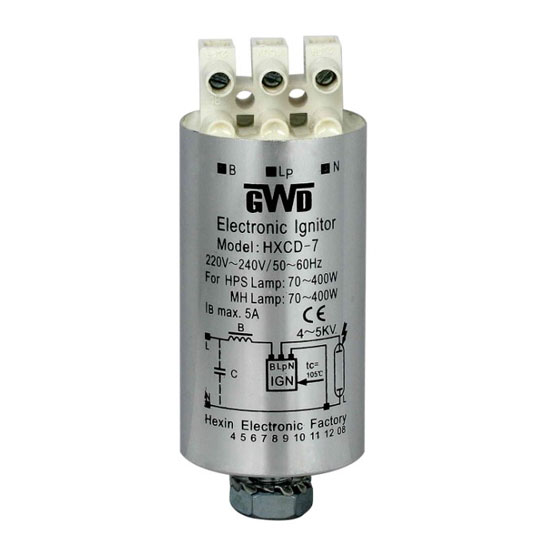

Electronic Ignitor
Production Lead Time:
7 day(s)
Model No.:
HXCD-7
Brand:
GWD
Colour:
Aluminum
Size:
φ35 x 65 x 10 M8
Port:
Shunde
Minimum Order Quantity:
1000 pc(s)
Warranty:
3 year
Power Factor Compensation:
Without
Ballast:
Magnetic
Description
Contact Supplier
Description
The electronic ignitor is assembled with a sturdily made shell. Its electronic components are sealed in high-temperature epoxy resin. The maximum operating temperature of it measures 105℃.
- Rectangular plastic shell with fastening.
- M8 Aluminous shell.
- High heat resistance.
- Execution HXCD-7
- Rectangular plastic shell with fastening M8
- Aluminous shell with fastening M8
- Electronic components sealed in high temperature epoxy resin
- Products with high heat resistance. The maximum oprerating temperature Tc=105 ℃
- Model Supply voltage (V/Hz) Ignition Voltage (KV) Pulse per Second Impulse width (uS/pcs) Max current (A) Load capacitance Adapted for lamp
- HXCD-7L 220-240V
- 50-60Hz 3.5-4.5 ≥6 ≥0.3/1 1.8 20-200pF MH:35-150W
- HPS:35-150W
- HXCD-7B 220-240V
- 50-60Hz 1.5-2.5 ≥6 ≥0.3/1 5 20-200pF NSD HMI MSD HSD:35-300W
- HXCD-7 220-240V
- 50-60Hz 4.0-5.0 ≥6 ≥0.3/1 5 20-200pF MH:70-400W
- HPS:70-400W
