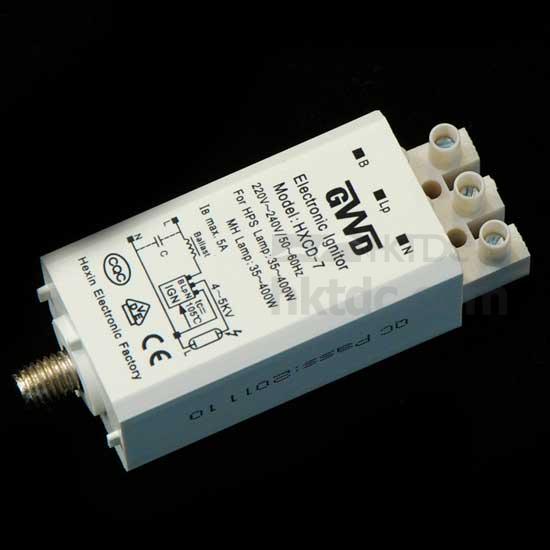

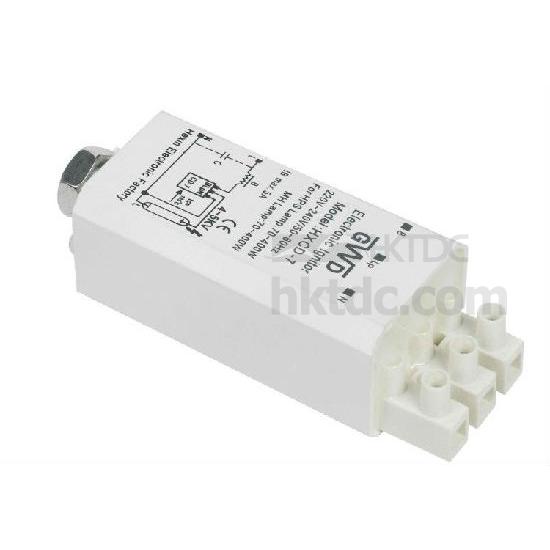

The electronic ignitor is constructed of quality material for a rugged structure. The long lifespan allows the component to deliver reliable performance while reducing replacement costs. This fine ignitor will make an excellent choice for a wide variety of lighting products.

• Execution HXCD-7.
• Rectangular Aluminous plastic shell with fastening M8.
• Electronic components sealed in high temperature epoxy resin.
• Products with high heat resistance.
• Made for fine quality.
• Easy to install.
• Delivers reliable performance.
• Long lifespan with low replacement costs.
• Maximum operating temperature Tc=105 ℃.
• Model Supply voltage (V/Hz) Ignition Voltage (KV) Pulse per Second Impulse width (uS/pcs) Max current (A) Load capacitance Adapted for lamp.
• HXCD-7 220-240V.
• 50-60Hz 4.0-5.0 ≥6 ≥0.3/1 5 20-200pF MH:70-400W.
• HPS:70-400W.
• VDE CERTIFIED.
