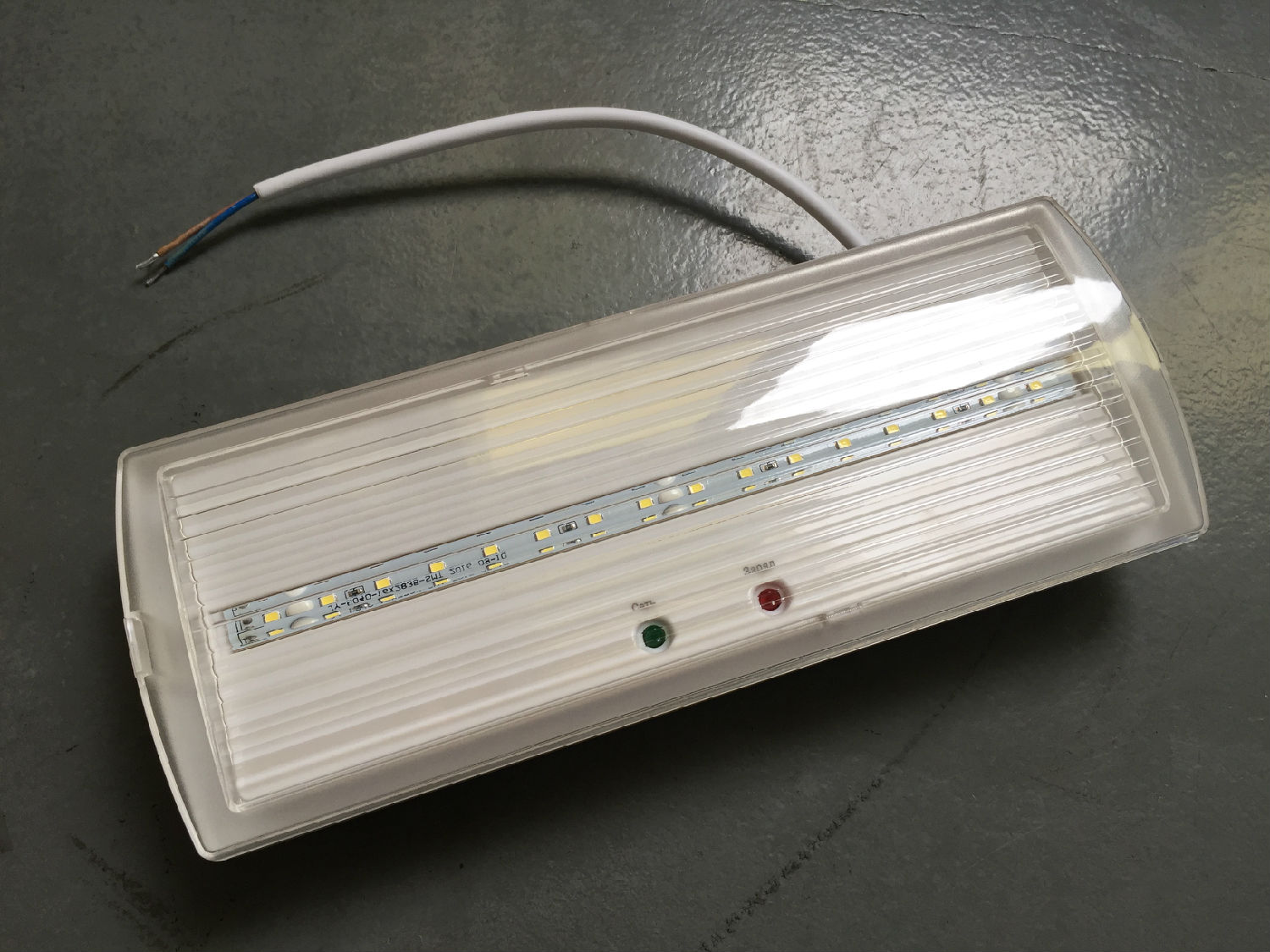

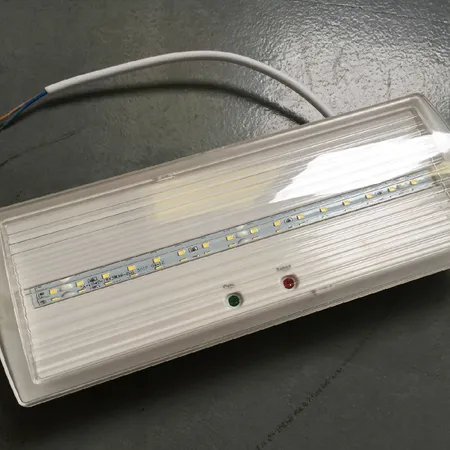

Emergency Bulkhead
US $6.30 - US $6.79
US $6.50 - US $7.00
Production Lead Time:
25 day(s)
Shipping Method:
By Sea
Model No.:
JY-5030
Brand:
JINYI
Colour:
White
Size:
259 x 100 x 46.5
Voltage(V):
220~240
Certification:
CE, EMC
Wattage(W):
3.5
Warranty:
4 years
Light Source:
LED
Body Material:
Plastic
Is Dimmable:
No
Power Source:
AC
Including Bulbs:
Yes
Including Batteries:
Yes
Requiring Batteries:
Yes
Customized:
Yes
Description
Contact Supplier
Description
FEATURES:
- Cost-effective emergency bulkhead;
- Ni-Cd and LiFePO4 battery optionals;
- Premium LED with PC cover (flame retardant and yellowing resistance)
- 1 hour / 3 hours emergency duration optionals;
- Compact size, easy to install in shops, hotels, stairs and other places ;
- CB/CE certified;
- EMC/LVD Certified.
- Maintain/non-maintain operation.
SPECIFICATION
| Model | JY-5030 |
| Input Voltage | 198-264Vac |
| Rated Voltage | 230Vac |
| Luminous Flux | >80lm/>150lm |
| Battery capacity | 3.6V 400mAh NI-Cd/3.6V 1200mAh NI-Cd |
| Emergency Duration | 60min/180min |
| Charge Time | 24Hours |
| Input power | 3-4W |
| Light source | 16pcs 2835 LEDs |
| IP Rating | IP20 |
| Operation | Persistent/non-persistent mode |
| Test | Manual test (Test button） |
| Operating Temperature Range | -10℃~+40℃ |
| Quality Guarantee | Power pack50000H@Ta full load（not include battery） |
| Mounting | Surface/Wall Mounted |
| Size | 259*100*46.5mm |
| Warranty | 4 years |
Classic emergency bulkhead are highly popular due to their cost-effective solution, reliable performance and ensure safe usage.
