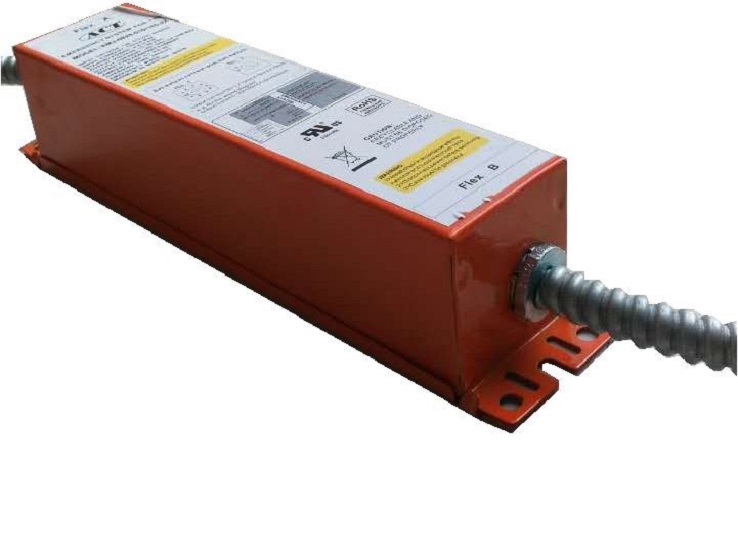

Emergency LED Drivers
Production Lead Time:
56 day(s)
Model No.:
EMJ-0825-010/105-J2-08W
Certification:
FCC, UL, cUL
Warranty:
5
Output Voltage(V):
11~56
Input Voltage(V):
120~277AC 50/60Hz
Description
Contact Supplier
Description
Product features:
- 1050mA output Current
- Programmable constant current
- Open Circuit Protection
- Short Circuit Protection
- No PCB
- Sound Rated A
- UL / cUL R/C, Class 2
- FCC Part 15 Class B
- 5 Years Limited Warranty
- Input voltage 120~277VAC 50/60Hz
- Input current 150mA MAX
- Recharge power 8W MAX
- Red Lead 3A, 90V
- White/black Lead 100W MAX
- Output current 100~1050mA
- Output voltage 11~56V
- Output power 25W MAX
- Output short protection YES
- Output open protection YES
- Over power protection YES (output 100mA when over power)
- Ambient temperature 10°C-50°C Tc MAX 70
- Time to light 0.3S from detection of emergency event
- Emergency Time 90 min.@25W & 10~50°C
- Recharge time required 48 Hours MAX
- Battery type LiFePO4 9.6VDC
- Battery capacity available 6Ah
