Emergency Lighting
Production Lead Time:
20 day(s)
Model No.:
L05G-I38V
Brand:
ERVAN
Colour:
Customized
Size:
26 x 1198mm
Port:
Shenzhen
Type of Payment:
Western Union, L/C, T/T
Minimum Order Quantity:
150 piece(s)
Voltage(V):
AC100-277V
Certification:
CE, EMC, FCC, RoHS, SAA
Wattage(W):
20W
Warranty:
3 year
Light Source:
t8 tube
Body Material:
Aluminum, Polycarbonate (PC)
Is Dimmable:
No
Including Bulbs:
No
Including Batteries:
Yes
Requiring Batteries:
Yes
Customized:
Yes
Description
Contact Supplier
Description
Specification:
• L05G-I38V has two functions of general lighting and emergency lighting. When suddenly an earthquake or other natural disasters happen, the city power would be crushed down. The emergency LED tubes can provide 3-5 hours lighting with their own battery, winning the time for saving. Time is life. It can also be used for general lighting when the city power works well.
Advantage:
• Rechargeable, short recharge time and long using time.

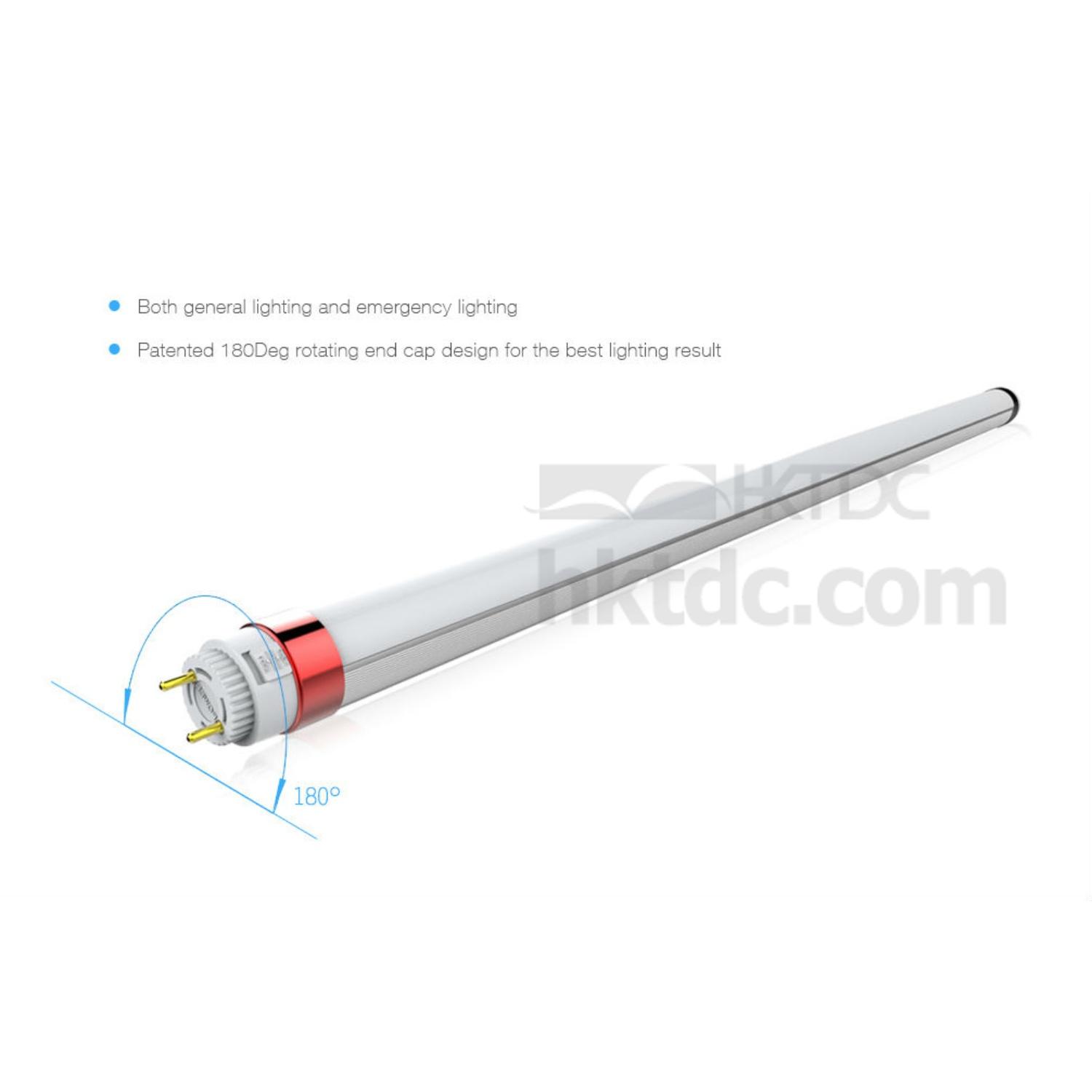

• Attractive design, ring, lockable rotating end caps (patent)，better lighting comfortability.
• Safety assurance, pass 4000V hi-pot test, single anti cap.
• High brightness,115lm/w
• Easy installation and free maintain.
• Long life span: 3years for tube, 2years for power supply, 1years for battery.
• Eco-friendly: no buzzing, no radio frequency interference,
• No flickering.
• Fast return on investment, high efficiency, energy saving.
• Certificate: CE, RoHS.
Applications (civilian using & commercial using):
• Public place, offices, hotels, factories, shopping malls, hospitals residential, institution buildings schools/colleges/universities rail stations/airports.
• Ideal for the replacement of fluorescent light

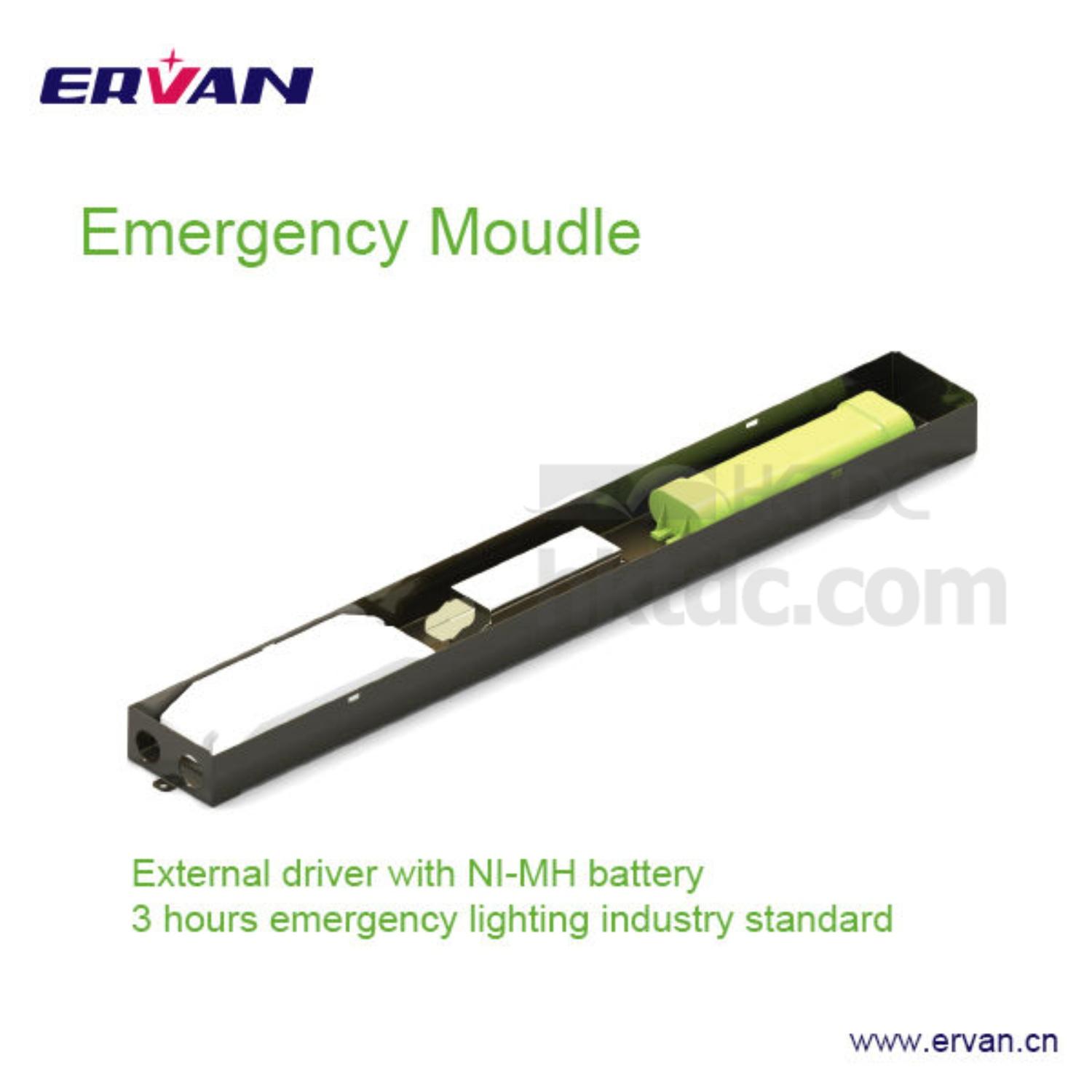

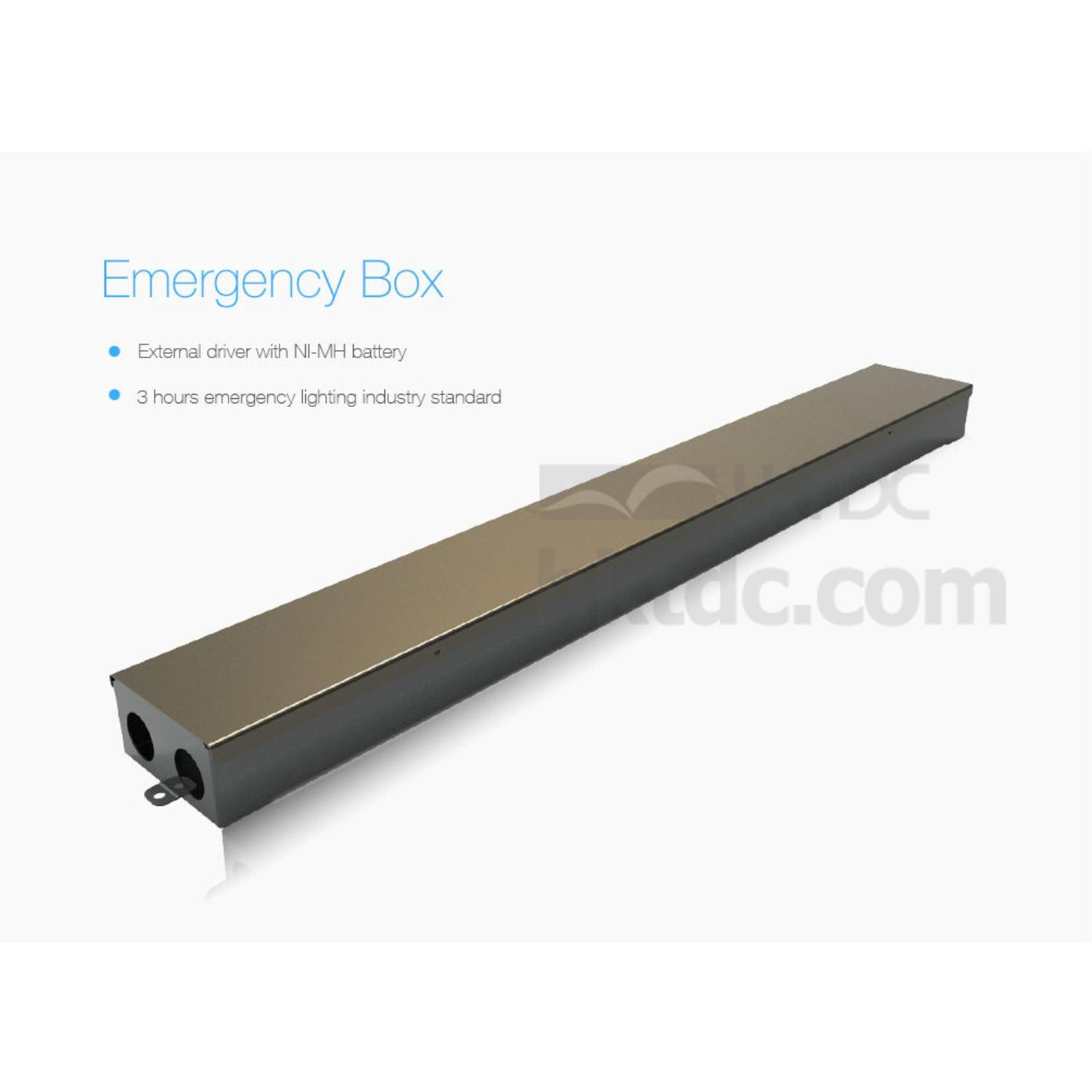

Specification of power:
• Size: 430 x 40 x 30mm.
• Input voltage: AC100V-240V.
• Frequency: 50Hz to 60Hz.
• Emergency power: 5.3W.
• Emergency output voltage: 33V DC.
• Battery capacity: 11.1V 2000mA/h.
• Weight: 600g.
• PF: 0.85.
• Power efficiency: >0.92.
• Emergency time: 3-5hr.
Specification of Tube:
• Light source: SMD3528/3020
• Material: al+ PC
• Lifespan: >50,000hr.
• LED quantity:216pcs
• Luminous: 2200lm±10%(frosted lens), 2400lm±10%(frosted lens)
Specifications of electrical:
• Dimension:26 x 1198cm (4FT),
• Luminous : 2300lm±10% (clear lens)
• Frequency: 50Hz-60Hz.
• Power factor: >0.92.
• Power supply efficiency: 0.86.
• CRL: Ra: >80.
• CCT: 3000-7000K
• Beam angle: 120°.
• Frosted/clear cover available
Packing:
• Weight: 1198mm/350g, power supply/635g.
1pcs/box,50pcs/cartons
Cartons size:135*48*27cm

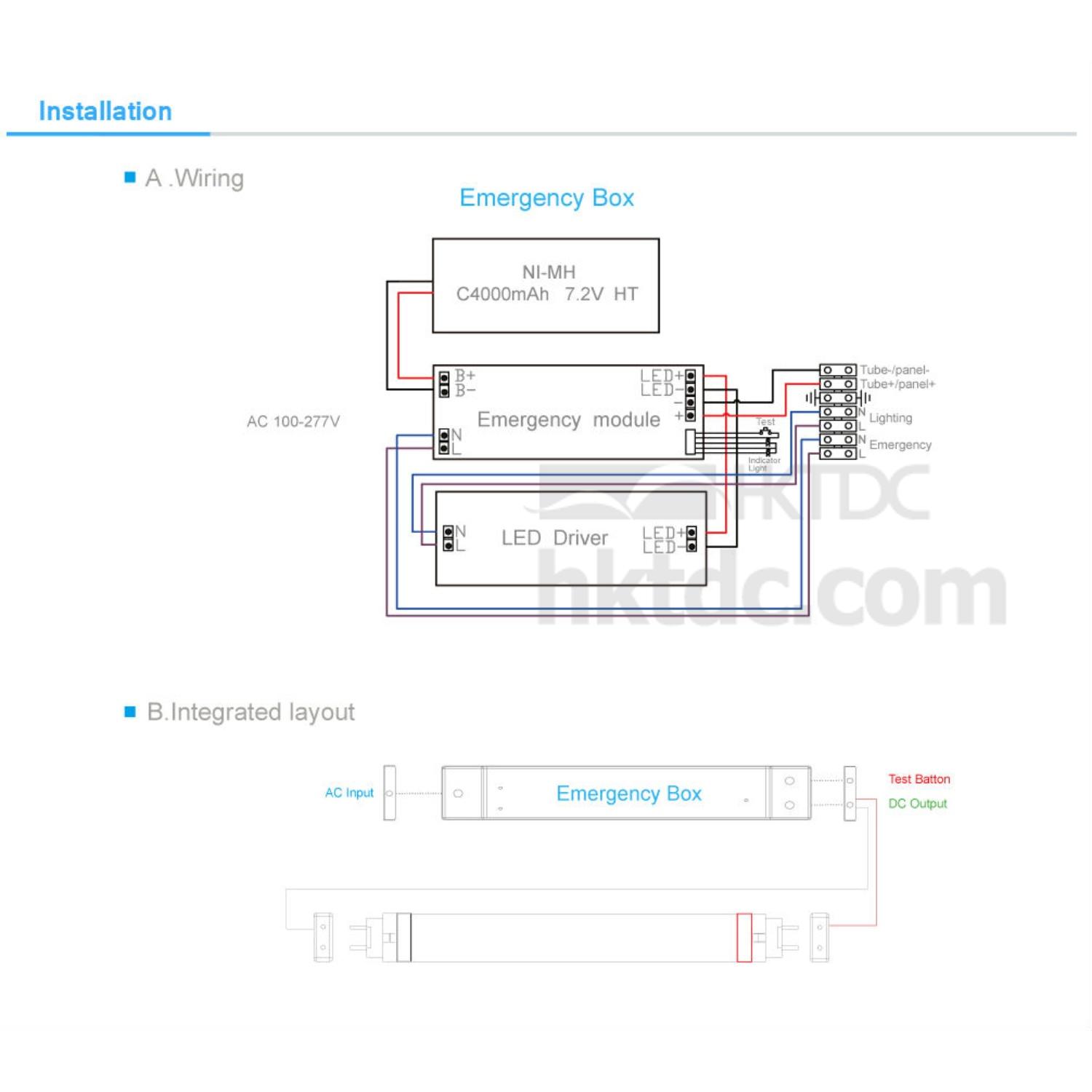

Easy installation:
• FYI: can be placed in conventional T8 or T10 fluorescent brackets and replace fluorescent tubes.
• FYI: the emergency power supply must match out tubes.
• L05G-I38V has two functions of general lighting and emergency lighting. When suddenly an earthquake or other natural disasters happen, the city power would be crushed down. The emergency LED tubes can provide 3-5 hours lighting with their own battery, winning the time for saving. Time is life. It can also be used for general lighting when the city power works well.
Advantage:
• Rechargeable, short recharge time and long using time.
• Attractive design, ring, lockable rotating end caps (patent)，better lighting comfortability.
• Safety assurance, pass 4000V hi-pot test, single anti cap.
• High brightness,115lm/w
• Easy installation and free maintain.
• Long life span: 3years for tube, 2years for power supply, 1years for battery.
• Eco-friendly: no buzzing, no radio frequency interference,
• No flickering.
• Fast return on investment, high efficiency, energy saving.
• Certificate: CE, RoHS.
Applications (civilian using & commercial using):
• Public place, offices, hotels, factories, shopping malls, hospitals residential, institution buildings schools/colleges/universities rail stations/airports.
• Ideal for the replacement of fluorescent light
Specification of power:
• Size: 430 x 40 x 30mm.
• Input voltage: AC100V-240V.
• Frequency: 50Hz to 60Hz.
• Emergency power: 5.3W.
• Emergency output voltage: 33V DC.
• Battery capacity: 11.1V 2000mA/h.
• Weight: 600g.
• PF: 0.85.
• Power efficiency: >0.92.
• Emergency time: 3-5hr.
Specification of Tube:
• Light source: SMD3528/3020
• Material: al+ PC
• Lifespan: >50,000hr.
• LED quantity:216pcs
• Luminous: 2200lm±10%(frosted lens), 2400lm±10%(frosted lens)
Specifications of electrical:
• Dimension:26 x 1198cm (4FT),
• Luminous : 2300lm±10% (clear lens)
• Frequency: 50Hz-60Hz.
• Power factor: >0.92.
• Power supply efficiency: 0.86.
• CRL: Ra: >80.
• CCT: 3000-7000K
• Beam angle: 120°.
• Frosted/clear cover available
Packing:
• Weight: 1198mm/350g, power supply/635g.
1pcs/box,50pcs/cartons
Cartons size:135*48*27cm
Easy installation:
• FYI: can be placed in conventional T8 or T10 fluorescent brackets and replace fluorescent tubes.
• FYI: the emergency power supply must match out tubes.
