Feature & Advantage:

• No UV; no lead no mercury, environmental-friendly

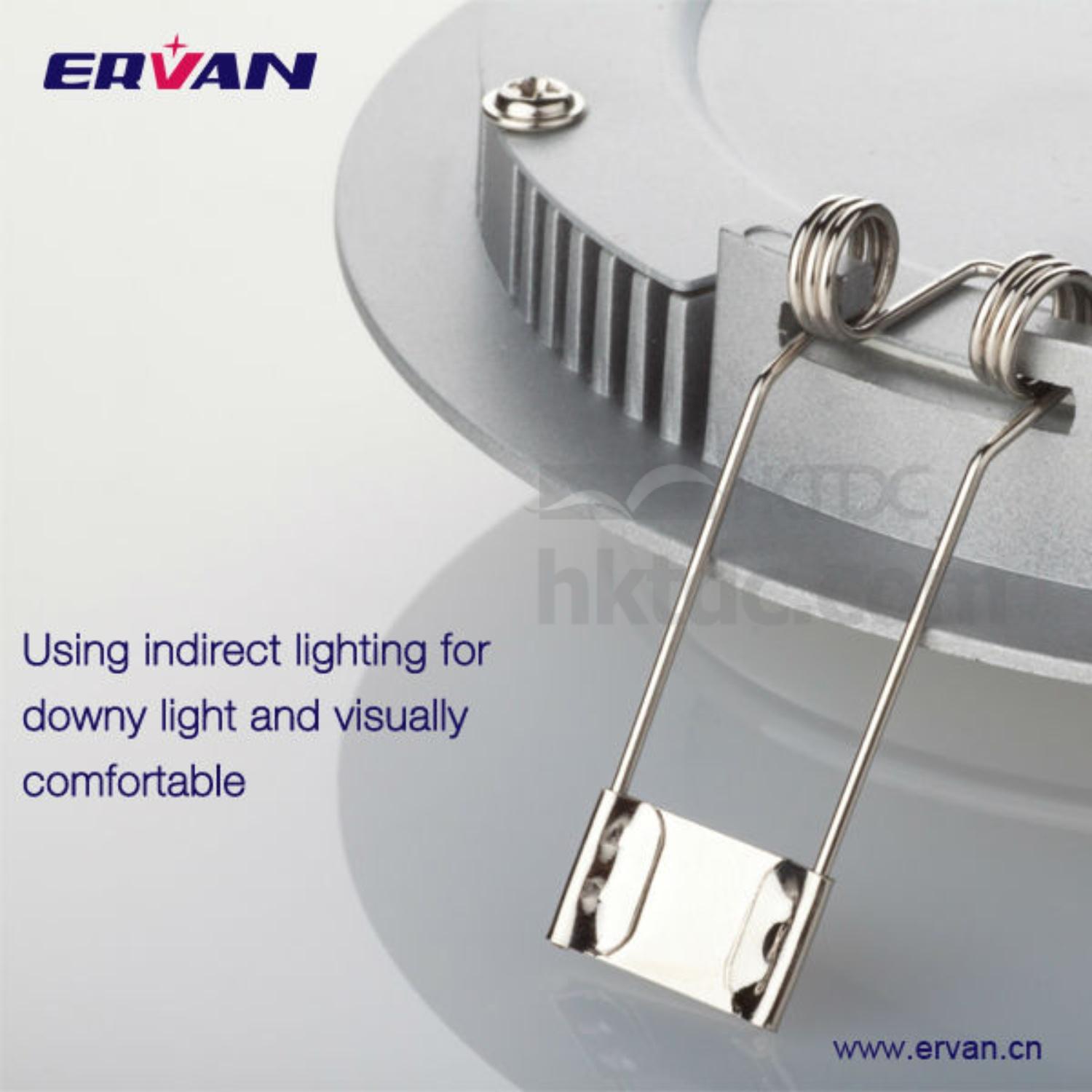

• Using indirect lighting downy light and visually comfortable
• Optical PMMA light guide illuminance Uniformity

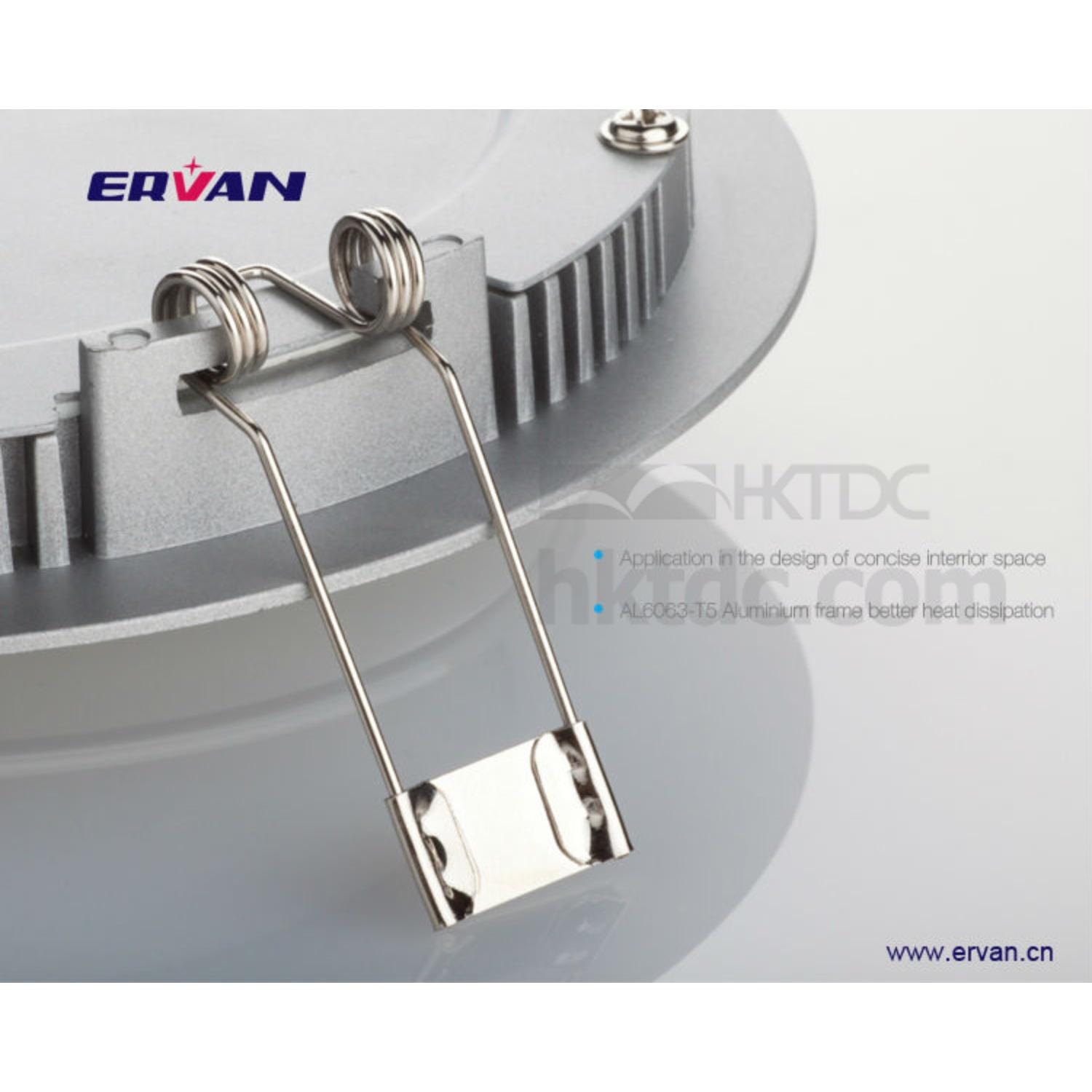

• AL6063-T5 aluminum frame better heat dissipation
• Concise interior space design and slim profile, look attractive, easy to clean and less likely to dirt, fast and simple installation, fits into most ceiling grid types.
• stlylished Clip, easy to install
• Maximum icacy and minimum glare no eye strain or dis comfortable
• Panels utilise high quality, high flux SMDLED's energy saving>60% to dramatically reduce building carbon footprint, up to 5 times longer life with no replacements reducing maintenance costs. Quick payback.
• More than 50,000hours average operating life.

Specification:

• Luminous: 1275lm ± 10%.
• Luminous efficiency: 85lm/W.
• Light source: SMD2835LED.
• LED number: 72pcs
• Power efficiency: ≥0.92.
• Power energy saving: ≥80%.
• Power factor: ≥0.95.
• THD: <20%
• CRI: ≥80.
• Color temperature: 2700-3500K; 4000-4500K; 5000-6000K; 7000-8000K
• Input voltage: AC 100 to 240V.
• Operating frequency: 50 or 60Hz.
• Beam angle: 120°.
• PC lens: frosted available.
• Life span: 50,000 hours.
• Warranty: 3years
• Size: r240 x 11.5mm

Application:

• Offices, exhibition hall, residence, library, hospital, school, shopping malls, railway stations, airports, factories, etc.
• Certification: TUV, CE, SAA
• Temperature and Humidity:
• Operating temperature: -20~+40℃
• Storage temperature: -40~+85℃
• Operating humidity: 10%-80%
• Storage humidity: 10%-80%

Package:

• Net weight: 0.6kg.
• Packaging: 1pc/box, 10pcs/ctn.
• Carton measurement: 535*310*220mm.

Installation:

• ceiling, with clip
• Payment: L/C, T/T.

Delivery:

• 10 days for sample
• 20 days for mass production.

Attention:

• Lamps should be installed, connected and tested by a certified installer based on the local regulations.
• Pls check local voltage in accordance with the product requirement.
• When a lamp is to be cleaned, make the power off and let it cool down completely.
• Do not cover the fixtures with flammale materials.
