Euro Terminal Blocks
Model No.:
KF300
Description
Contact Supplier
Description

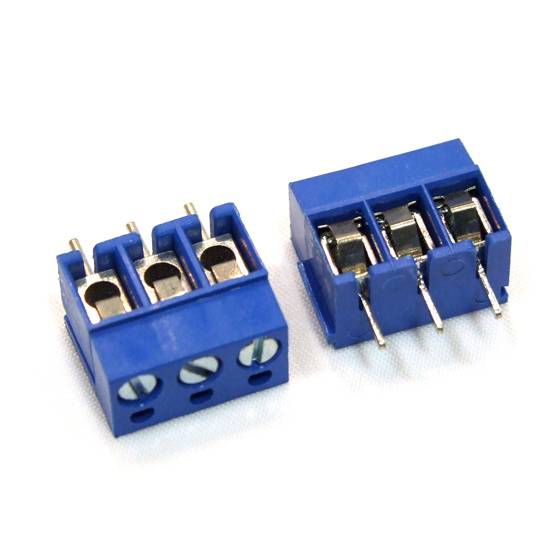

As shown are Euro terminal blocks for wire connection. The connecting parts are of high durability and this terminal block is easy to operate.
- Screws: M3 steel zinc plated
- Wire guard: phosphor bronze Ni plated or stainless steel
- Pin header: brass, tin plated
- Housing: PBT, UL94V-0
- Rated voltage: 300V
- Rated current: 12A
- Contact resistance: 20m diameter
- Insulation resistance: 5000M diameter/1000V
- Withstanding voltage: AC1500V/1 min
- Wire range: 22-14AWG 2.5 square mm
- Temp range: -30 degree celsius to +120 degree celsius
- Max soldering: +250 degree celsius for 5 seconds
