European Standard Plug Cable Lamp Light Cord Kit
Show More
Production Lead Time:
15 day(s)
Shipping Method:
by sea ; by air ; by courier
Application:
LED Wooden Floor Lamps, LED Art Standard Lamps
Power Source:
AC Power
Material:
Conductor Material:Copper Sheath Material:PVC Pin Material : Brass
Brand:
LinkedLight
Model No.:
LCS. 08.303.010
Description
Contact Supplier
Description

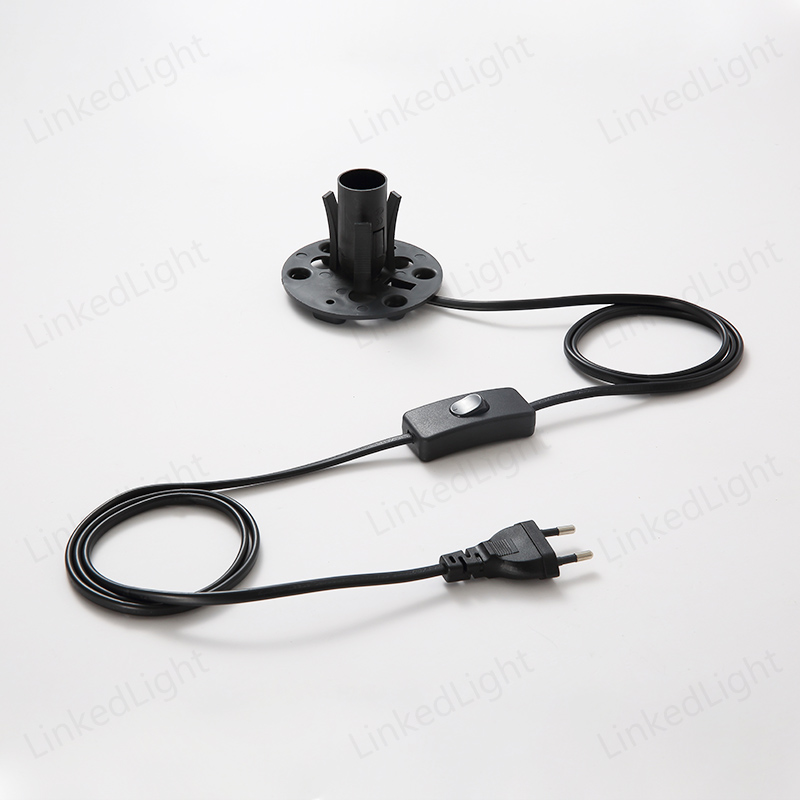

Product Name | European Standard Plug Cable Lamp Light Cord Kit |
|---|---|
Product Code | LCS.08.303.010 |
Optional Colours | Black / White / Transparent / Customized |
Application | LED Desk Lamps, LED Wooden Lamps, LED Tiffany Lamps, LED Crystal Lamps, LED Gift Lamps, Fragrance Lamps |
Components | Plug, Cable, Switch, Cord Grip, Plastic Plate, Lampholder |
Components Description | |
Plug | Type : European 2 Pin Round Plug |
| Pin Material : Brass | |
| Body Material : Plastic PVC | |
| Plug Process : Moulded | |
| Plug Standard : EN 50075 | |
| Rated Voltage / Rated Current : 250V / 2.5A | |
| Approval : VDE | |
Cable | Type : H03VVH2-F / 2 Core Flat Cable |
| Jacket Material : PVC | |
| Insulation Material : PVC | |
| Conductor Material : Stranded Bare Copper | |
| Rated Voltage : 300 / 300V | |
| Rated Temperature : 70ºC | |
| Approvals : CCC / VDE / SAA / KC | |
Switch | Type : 303 Cord Switch |
| Housing Material : PP / PC | |
| Contact Material : Copper / Nickel Plating | |
| Installs Way : Pressure, Non-Rewirable | |
| Rated Voltage / Rated Current : AC 250V / 2A | |
| Approvals : CE / ENEC / CQC / SAA | |
Cord Grip | Material : Plastic PA |
| Product Size : M10x1 | |
Plastic Plate | Material : Plastic |
| Product Size : D86xH52mm | |
Lampholder | Type : E14 Plastic Bayonet |
| Shape of Out Shell : Half Thread | |
| Cap Material : Plastic PA | |
| Housing Material : Thermoplastic PET | |
| Contact Material : Copper | |
| Terminals : Push in Type | |
| Installs Way : Bayonet | |
| Rated Temperature : T180-T210ºC | |
| Rated Voltage / Rated Current : 250V / 2A | |
| Approvals : CE / ENEC / VDE | |
Packaging & Shipping
Packaging:
Besides the regular packing, LinkedLight can do the blister packing, Hang packing, Art box, and the special packing according to the requirements.
Shipping:
Regarding the samples and the goods which is less than 100kgs, LinkedLight suggests to choose the air transport. The express delivery including FedEx, DHL, TNT, UPS are all the Contractual partner of LinkedLight.
About the Sea transport, usually our near port is Guangzhou / Shenzhen / Zhongshan Port. The delivery terms of EXW / FOB / CIF / CFR / FCA is acceptable.
