Explosion Protection Safety Capacitor
Brand:
BM
Description
Contact Supplier
Description

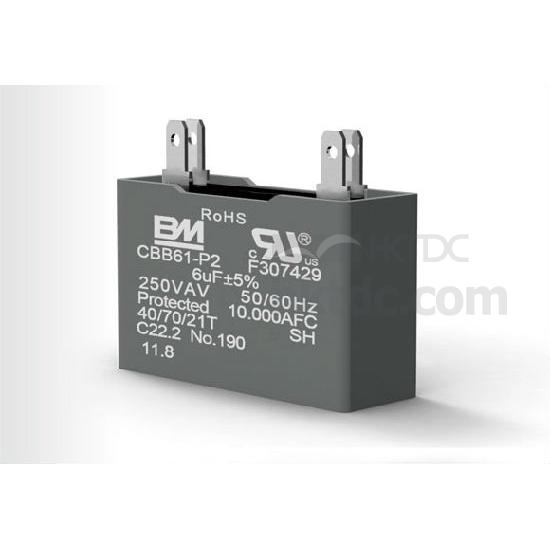

- Air conditioner capacitor with grey housing.
- Made of electrical class metalized polypropylene film.
- Explosion protection safety capacitor for air conditioners.
- Safety metalized electrode.
- 94V level flame-resistant plastic box.
- Enveloped with epoxy resin.
- Led by standard terminals.
- Adopt special manufacturing process.
- Stable performance.
- Safety function.
- Explosion protection.
- Explosion-proof class: P2.
- Applied in high-end air conditioners.
- Safety approvals: UL, TUV, CQC.
- Implemented standard: GB/T3667, UL810, EN 60252.
- Climatic category: 25/70/21, 25/85/21, 40/70/21, 40/85/21.
- Rated voltage: 250V AC, 450V AC (50/60Hz).
- Capacitance range: 1μF～8μF.
- Capacitance tolerance: ±5% (J), ±10% (K), ±105% (U).
- Testing voltage between terminals: 2 x UN (V AC)/60s.
- Between terminals and case: 2 x UN + 1000 (V AC)/60s (≥2000V AC).
- Insulation resistance (20℃) between terminals and case: ≥2000MΩ (500V DC, 60s).
- Tangent of loss angle (20℃): ≤0.002 (100Hz).
