F1710 Wireless Adjustable Shelf/ Cabinet Lighting System
Production Lead Time:
7 day(s)
Shipping Method:
FEDEX, UPS, DHL, SF
Brand:
Surmountor
Customised:
Yes
Including Bulbs:
Yes
Is Dimmable:
Yes
Lighting Style:
Traditional, Modern, Novelty, Tiffany, Antique Reproduction
Size:
16.5*10mm
Model No.:
F1710
Light Source:
LED
Material:
Aluminum Profile. Plastic
Feature:
Wireless Adjustable Shelf/ Cabinet Lighting System
Description
Contact Supplier
Description

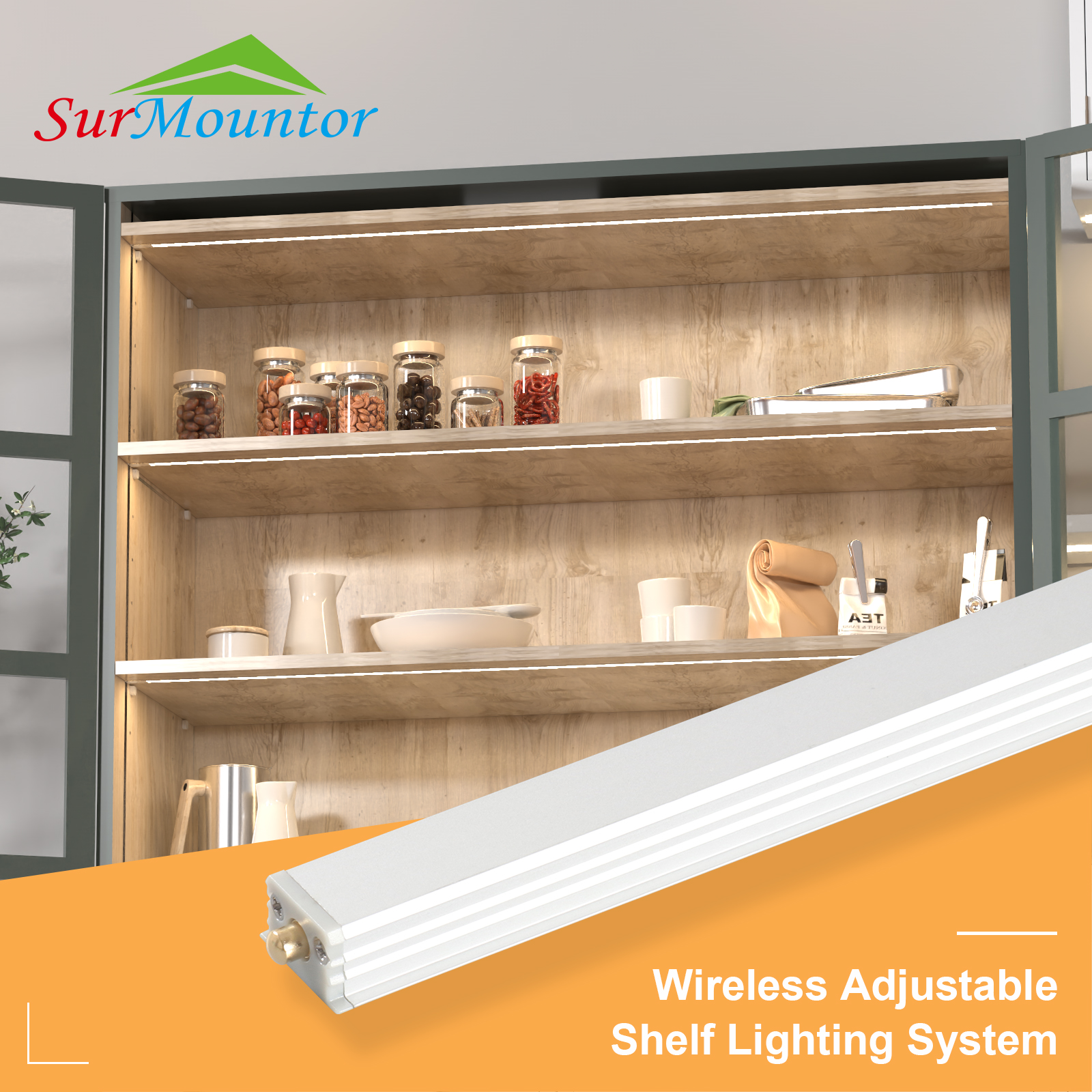

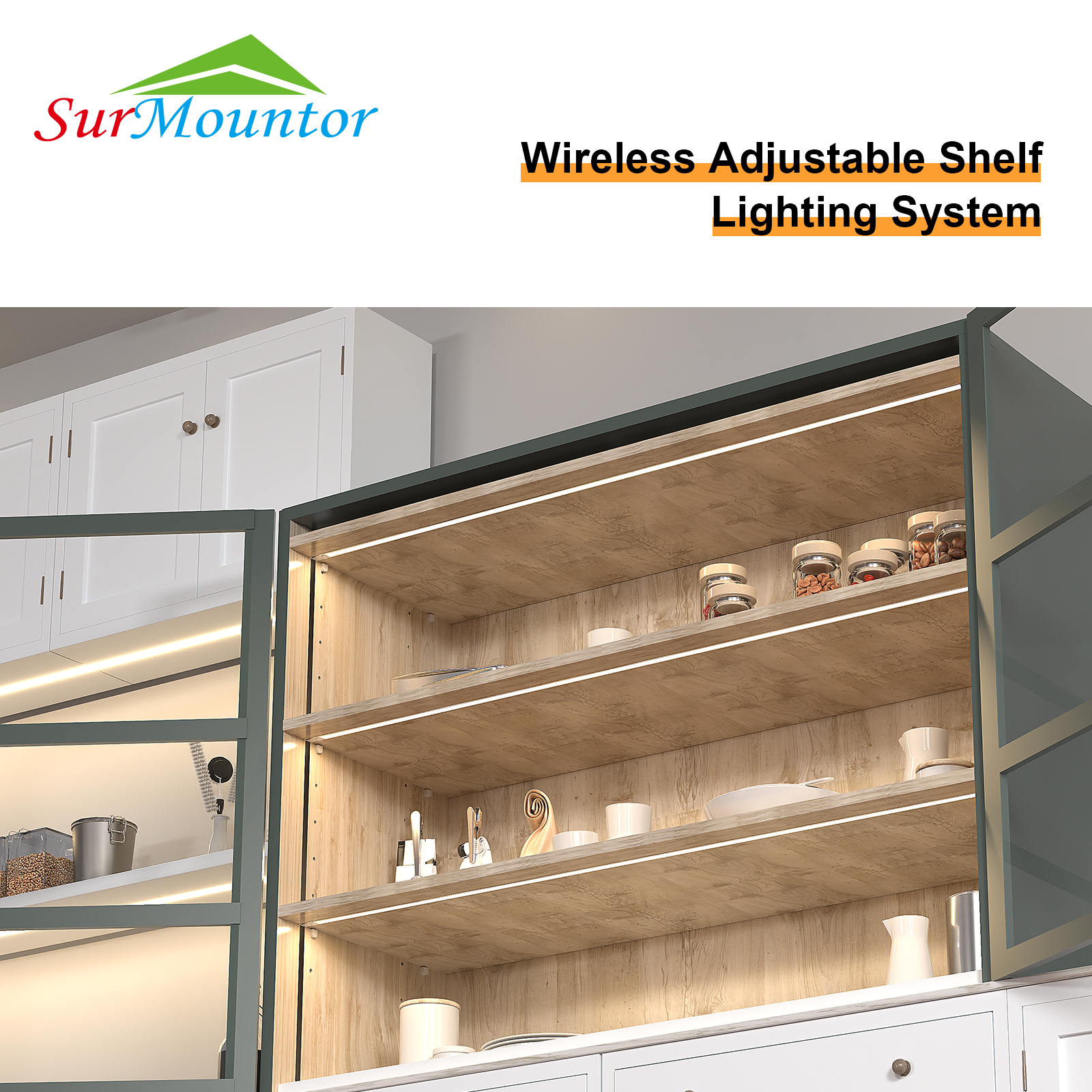

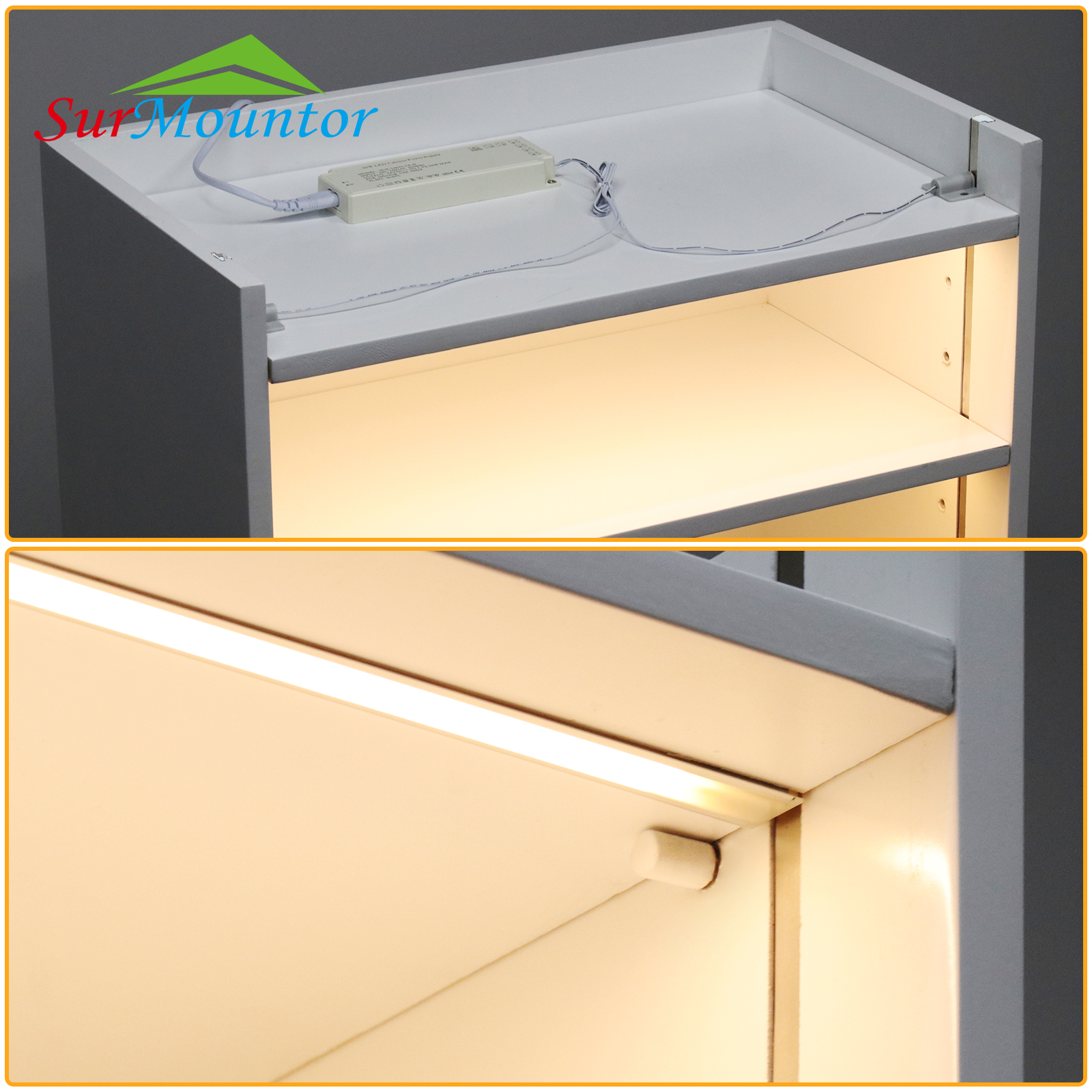

Wireless Adjustable Shelf Lighting System Convenience Store Retail Shelf Display System and Display Cabinet Light
Product Features:

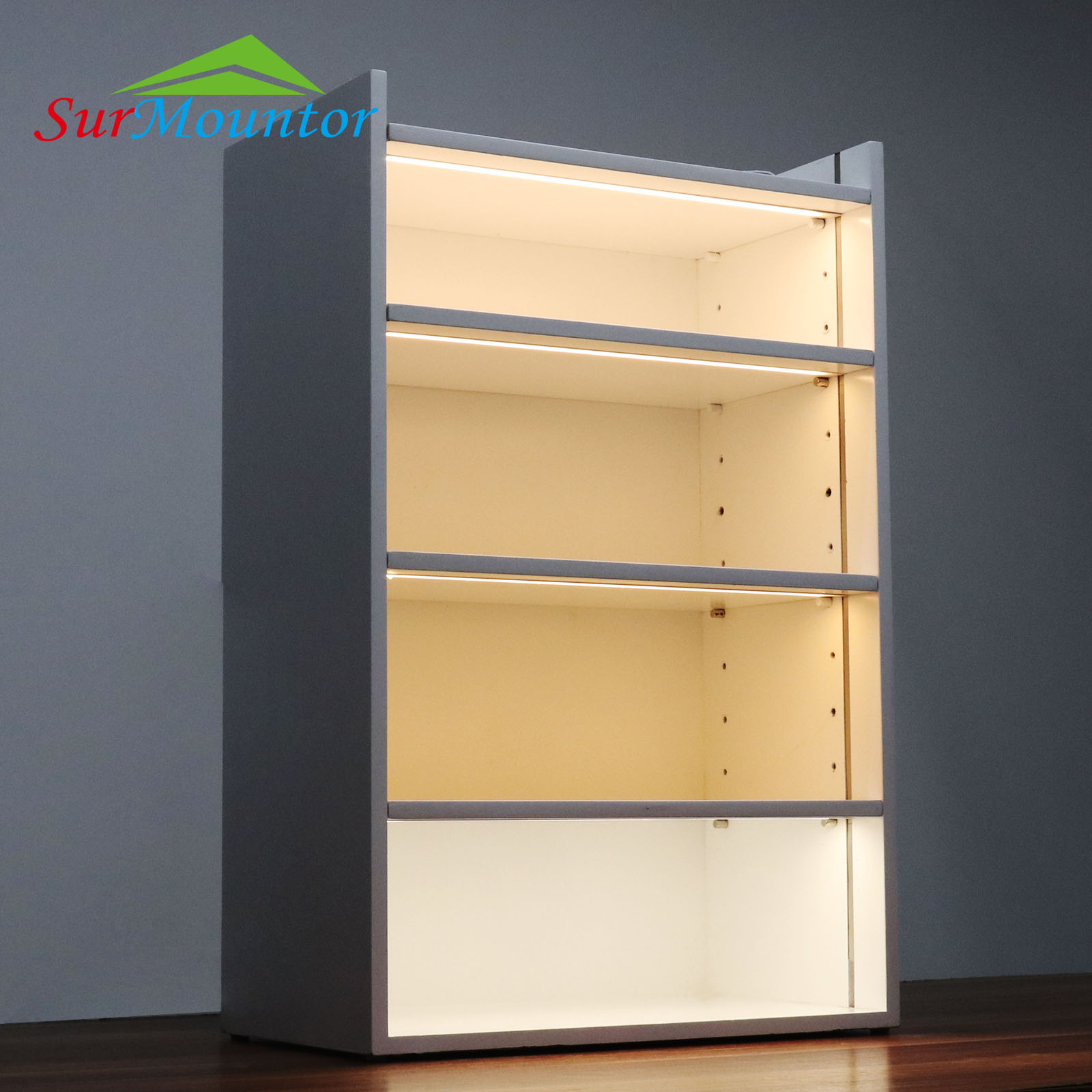

> The System allows lighting to be easily assembled into adjustable and fixed shelving in closets and cabinetry without complicated cable management.

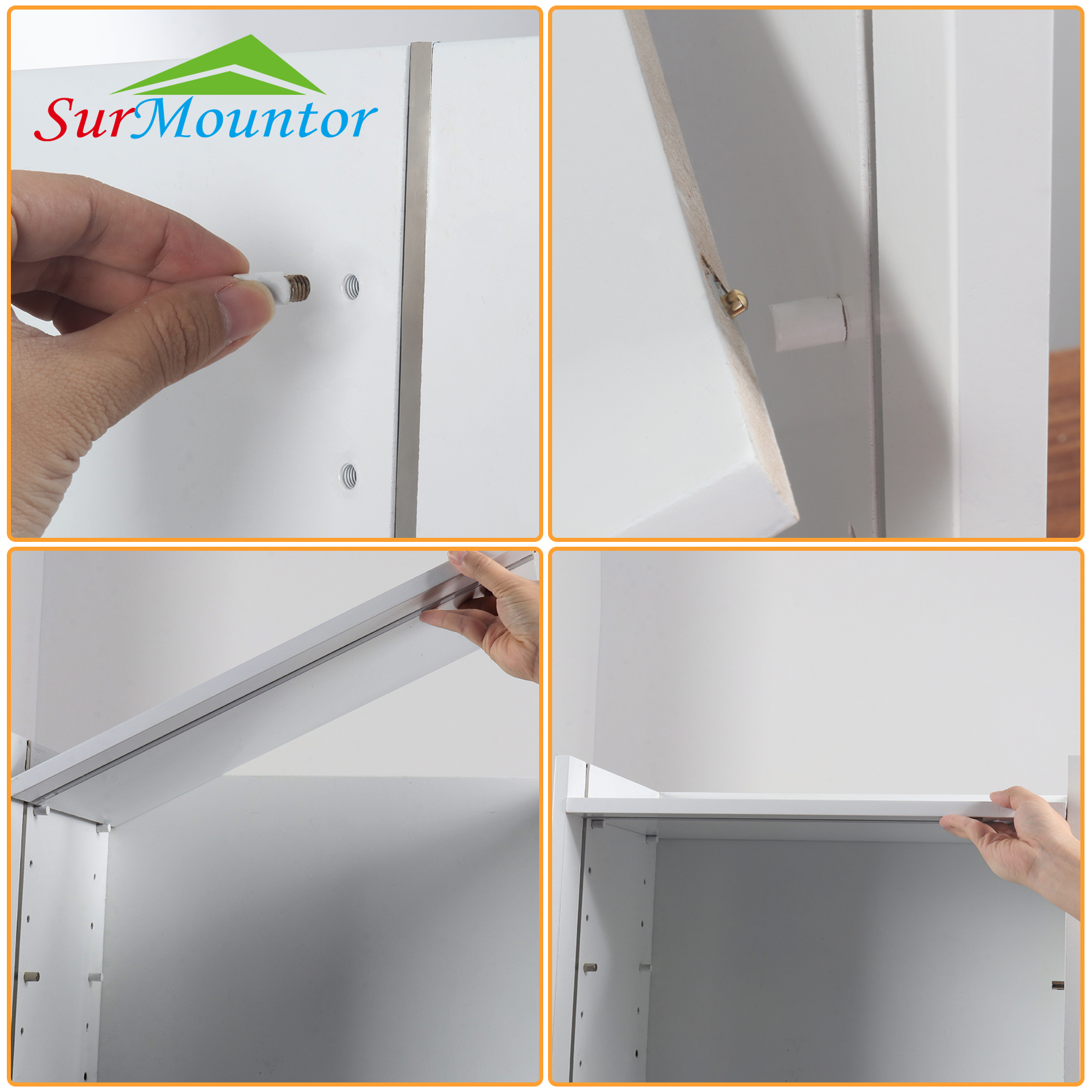

> The height of adjustable shelves can be easily changed without concern of wiring connections.
> Designed for efficient manufacturing and installation.
Product Parameters:
| Model | Voltage | Watt | Lumen | CRI | Color Temperature | Model of LED Beads | Length(including endcaps) | Package |
| F1710-1000 | 12VDC | 9.6W/M | 620 | >90 | 3000K/ 4000K/ 6000K | 2835 | 1004mm | 0.5M power cable(length can be customized). Power track 2pcs (Length can be customized). 4pcs mounting screw. |
| 650 | ||||||||
| 630 | ||||||||
| F1710-1000 | 24VDC | 620 | ||||||
| 650 | ||||||||
| 630 |

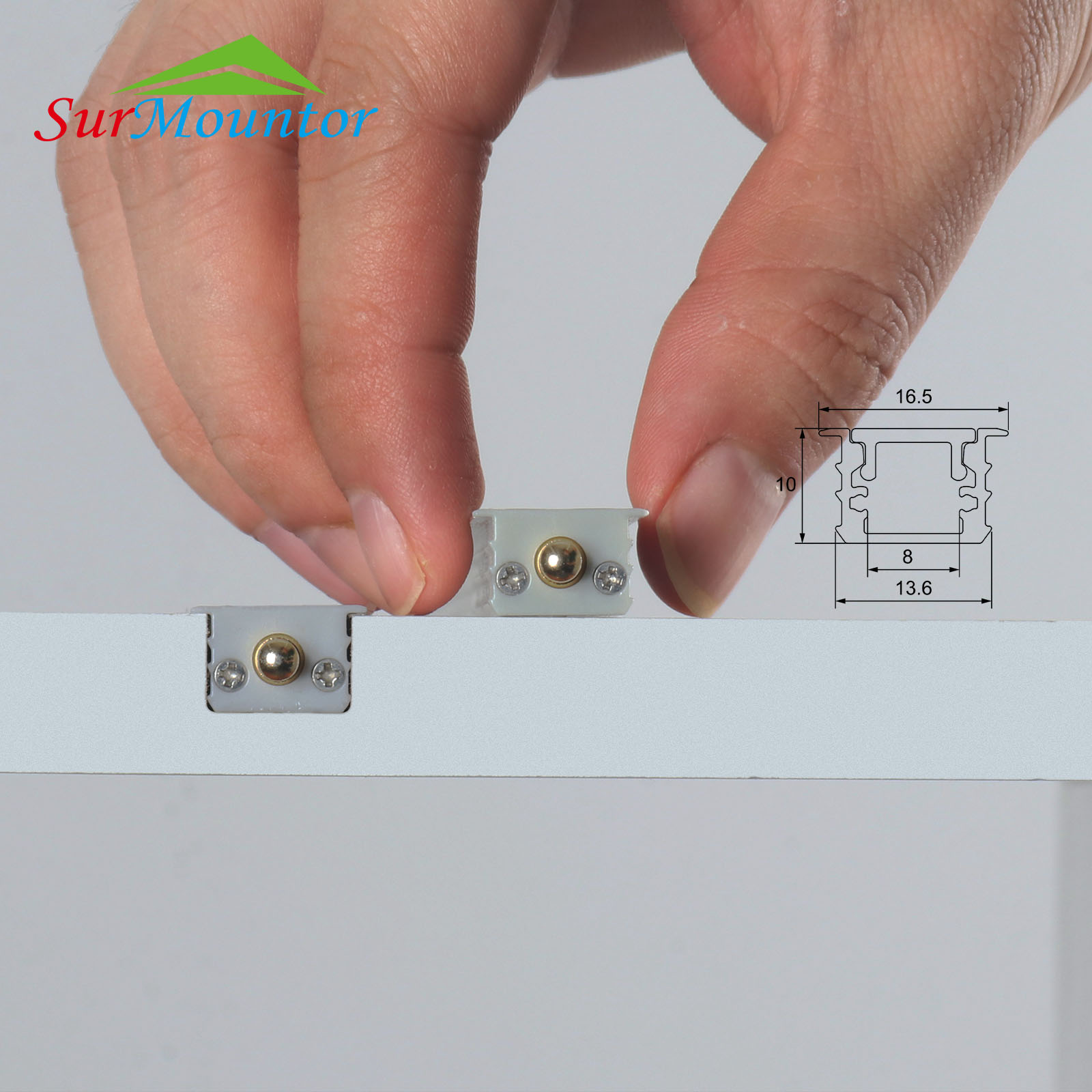

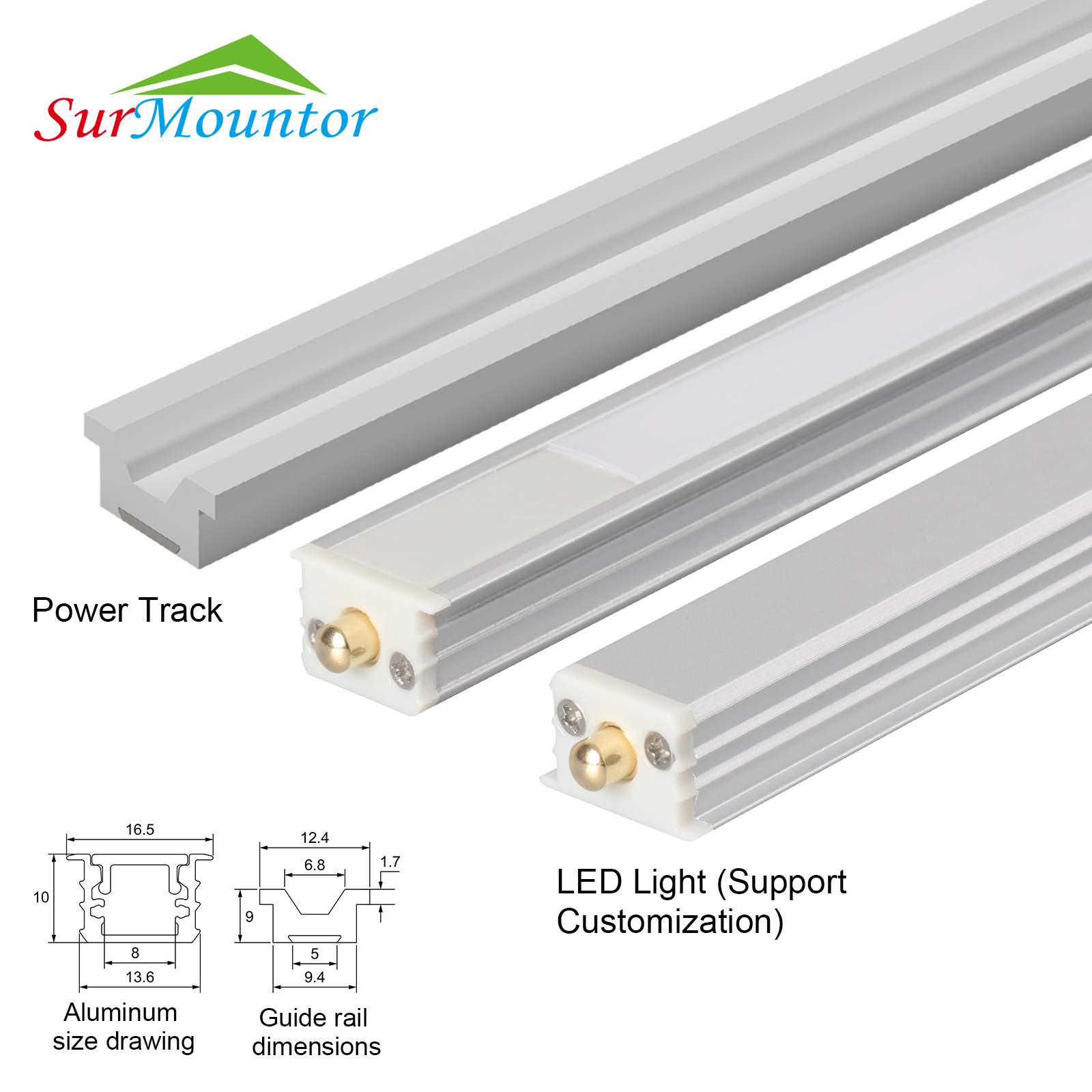

F1710- LED Aluminum Profile
| Match flexible LED strips | Up to 6mm wide. |
| Material | Anodized aluminum extrusion. |
| Cover | Diffuse PC cover. |
| Lengt | 1m (can be customized). |
| Install | Recessed mounting. |
2835 Single Color 160LEDs/ Meter
| Input voltage | 12/24VDC. |
| Power | 9.6W/M. |
| CCT | 3000K/4000K/6000K |
| CRI | >90 |
| Cutting length | 50mm. |
| Lumens | 1300-1400LM/M |
| Waterproof | IP20 |

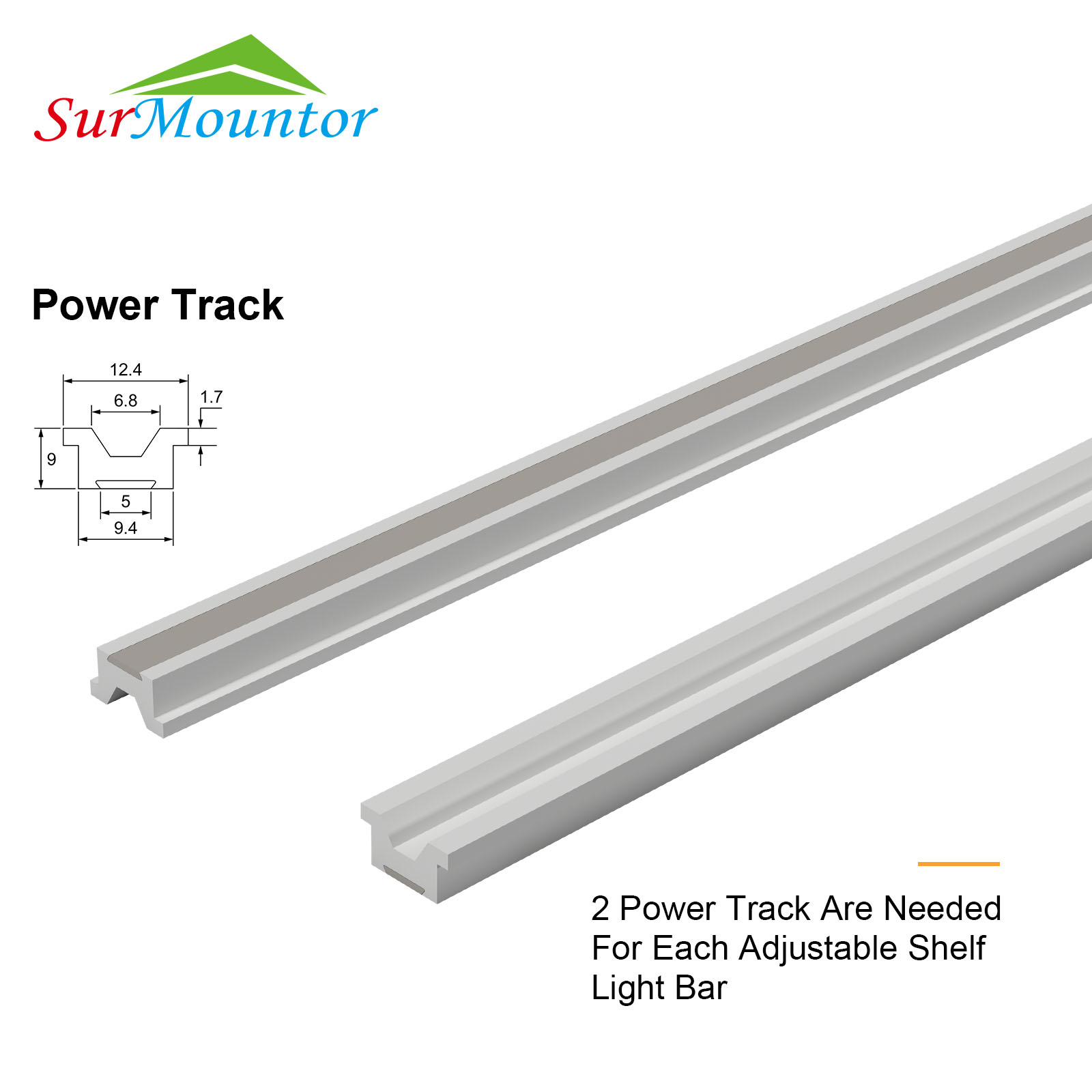

F1710- Power Track
| Material | PC and Copper. |
| Continuous current | 10A. |
| Length | 1 Meter(Length can be customized). |
| Installation | Inserted. |

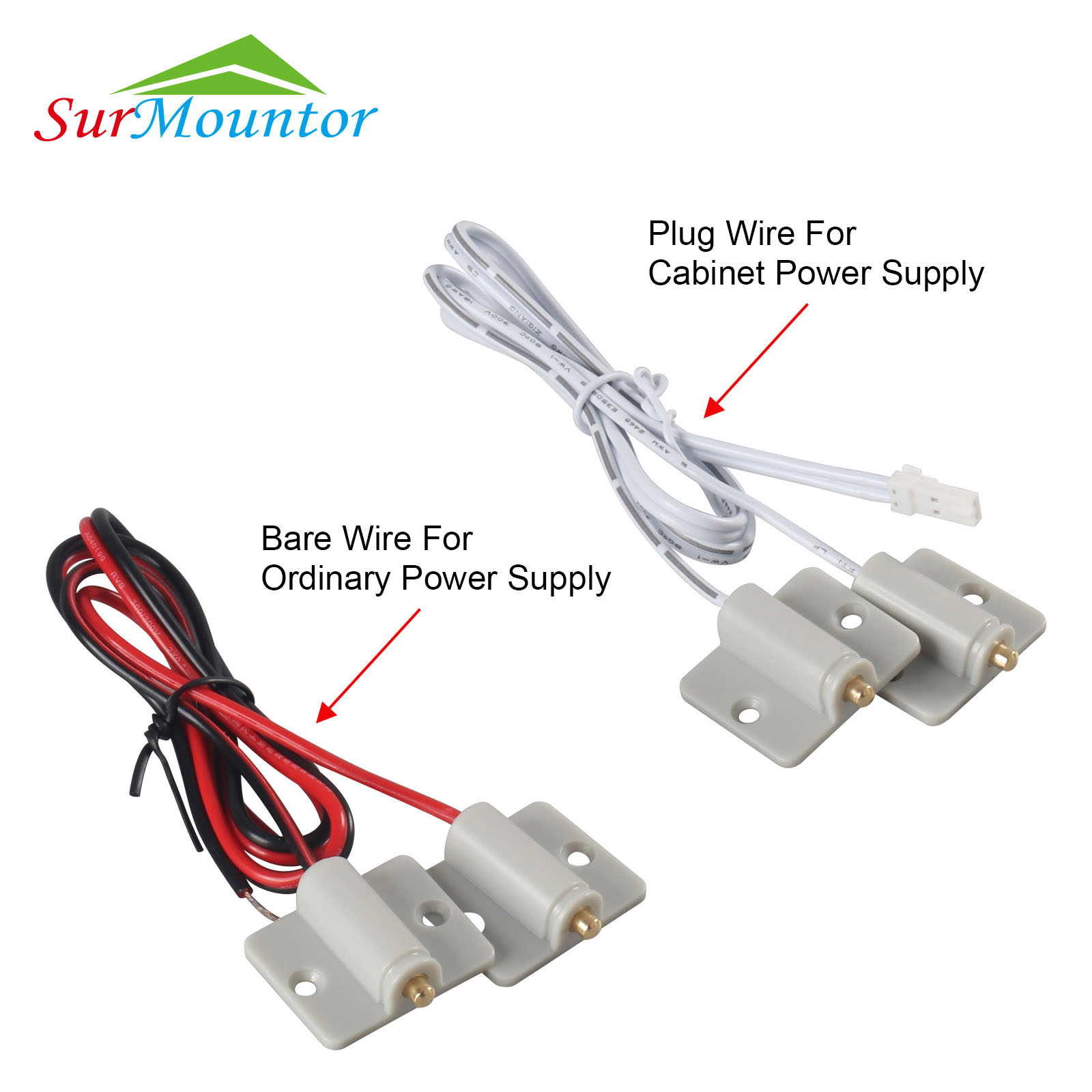

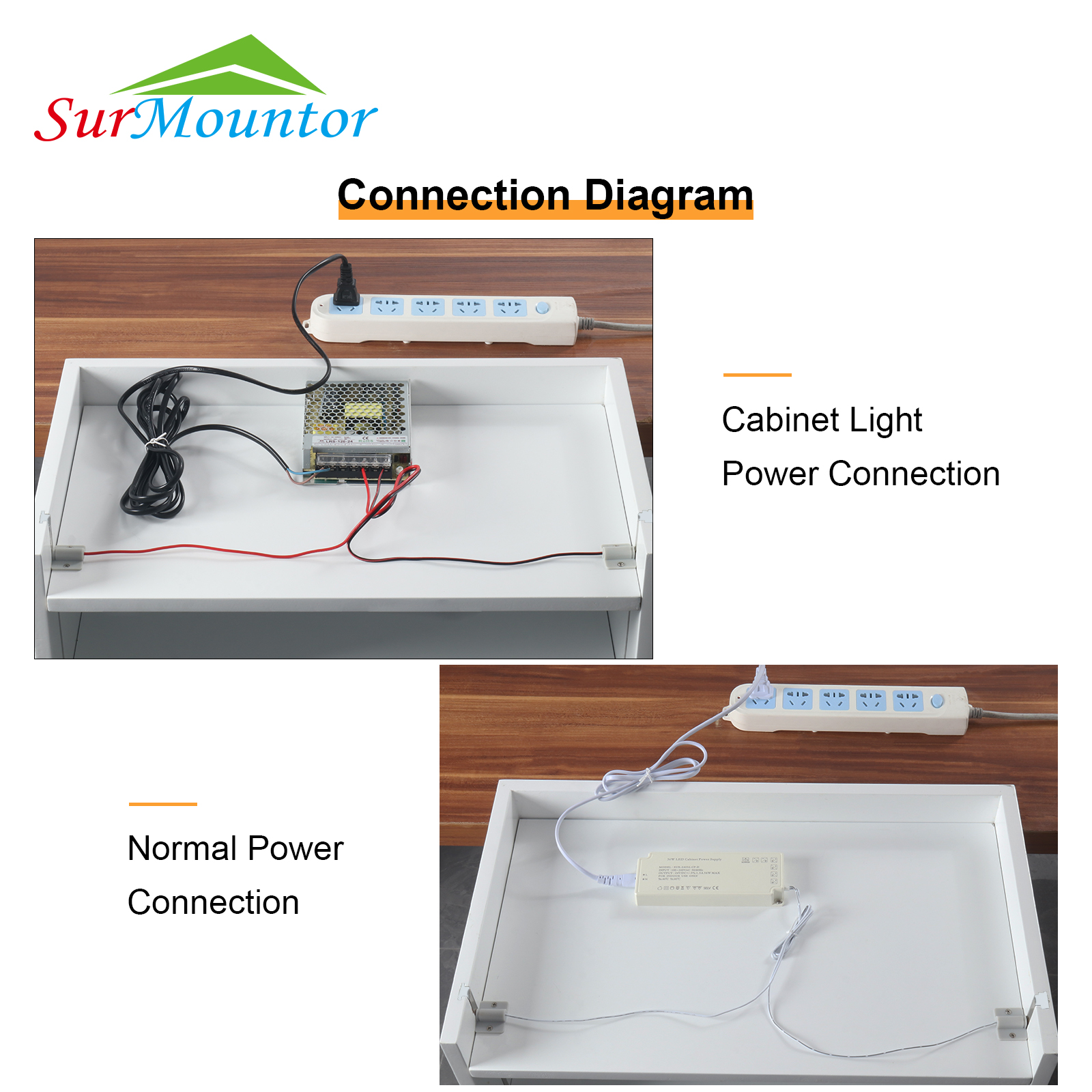

F1710- Power cable
| Standard cable size(selectable) | Red& Black wire #18AWG, Double white wire #22AWG. |
| Length | 0.5M (Length can be customized). |
| Continuous current | 6A, Double white wire: 3A. |
| Double white wire connector | One end L813, One end high current POGOPIN. |
| Red&black wire connector | One end bare wire, One end high current POGOPIN. |
| L813 double wire | End with letter: V+ The other with stripes: V- |
| Red& black wire | Red wire V+ Black wire V- |
