Overview

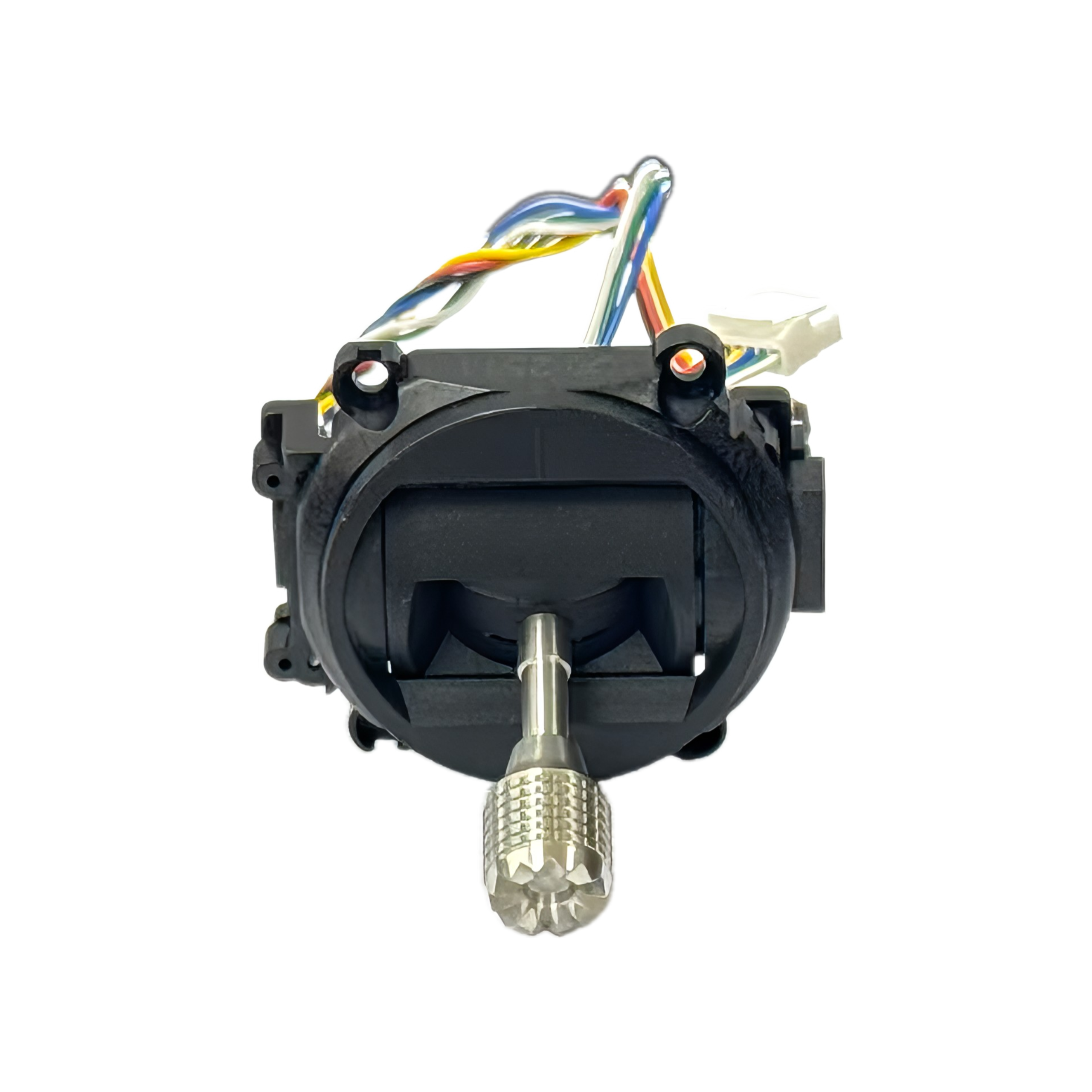

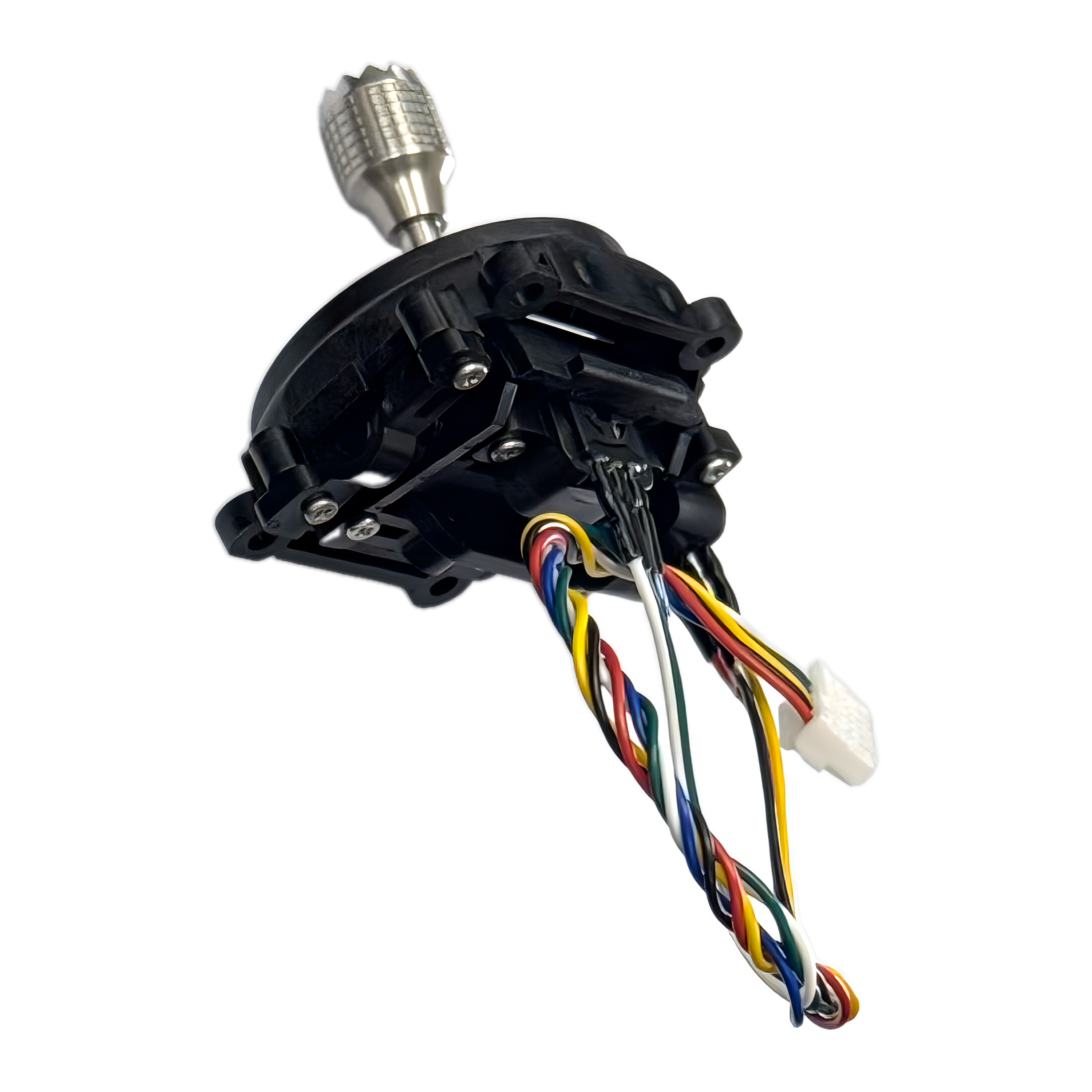

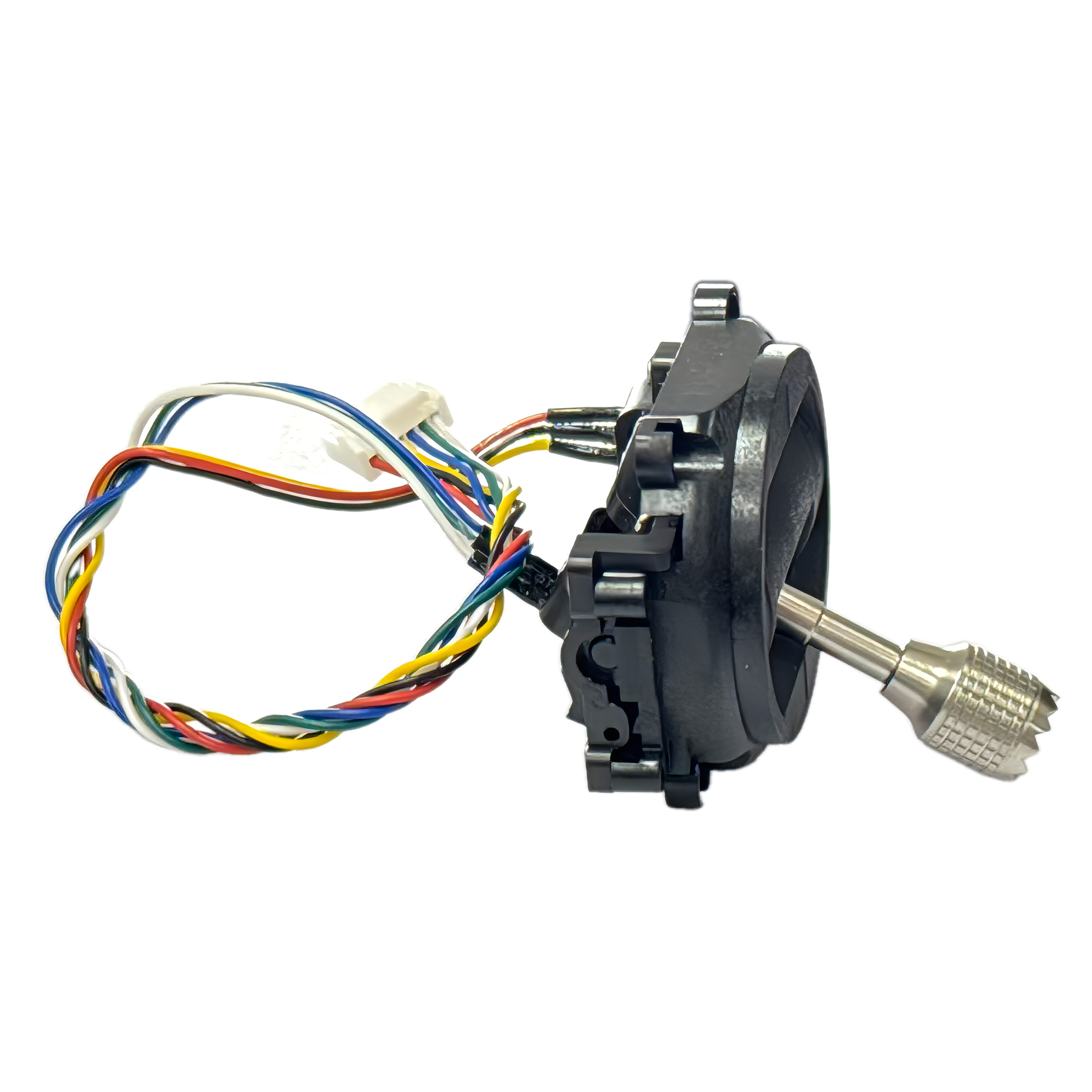

The FJR35-0004A-L015A-TW is a high-precision, industrial-grade dual-axis throttle control joystick potentiometer manufactured by Favor Union / Polyshine Holdings. Featuring a robust quadrate operating lever mechanism and integrated wire harness with a 1.25mm pitch GH connector, this component provides highly reliable, linear voltage divider feedback for precision control applications.

Designed to withstand rigorous environments, it boasts an operating lifespan of over 100,000 cycles and wide operational temperature stability.

Key Features

• Precision Dual-Axis Tracking: Features a smooth $\pm 30^{\circ}$ operating angle across X and Y directions with a no-return axis setup on the X direction, ideal for custom throttle configurations.



• Premium Carbon Element: Engineered with an $80^{\circ}$ carbon film electrical angle providing stable, predictable performance.



• Plug-and-Play Integration: Pre-wired with color-coded leads terminating into a secure 6-pin JCTC GH connector (1.25mm pitch) for quick and error-free installation .



• Industrial Durability: Built to survive demanding hand-held or machine operations with a lever pull/push strength exceeding 3.0 Kgf and a side stopper strength of over 3.1 Kgf.



• Environmental Resilience: Successfully passes strict dry heat ($80^{\circ}\text{C}$), cold ($-30^{\circ}\text{C}$), and damp heat humidity tests to ensure long-term field stability.



Technical Specifications

• Model Name: FJR35-0004A-L015A-TW

• Total Resistance: 10K

• Resistance Taper: Linear Taper B

• Rated Power / Voltage: 0.0125W / DC 5V (Max AC 50V)

• Lever Operation Shape: Quadrate (Square)

• Mechanical Lifespan: >=100,000 cycles (under 200gf load)
