FLAT BED SCREEN PRINTER
US $4800.00 - US $5800.00
Production Lead Time:
15 day(s)
Shipping Method:
by sea
Brand:
PRINTSO
Model No.:
PS-6090
Size:
PRINTING AREA 600 X 900mm
Weight:
500KG
Description
Contact Supplier
Description
Features:
Strong & stable screen arm design
Advanced computerized control system
Touch screen Control programs
User friendly control panel with digital counter
Diecast strong screen arm

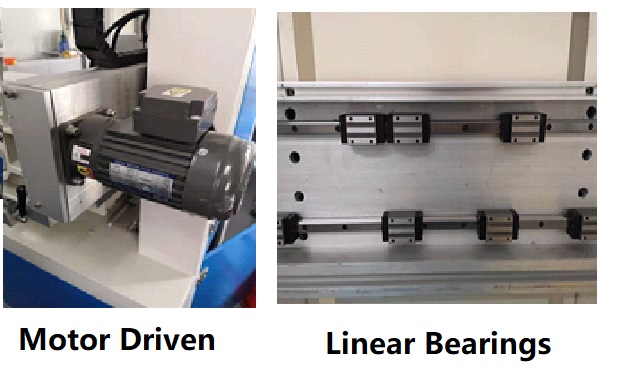

Motorized horizontal stroke provides stable adjustable speed
Linear track provide smooth movement of squeegee
Screen lift up function during printing
Independent vacuum motor ON/OFF control
Angle adjustable squeegee
Safety foot paddle
Anodized aluminum parts
Strong diecast body structure
SPECIFCATIONS | |
Model | PS-6090 |
Worktable Selections | Vacuum Table |
Worktable Size | 800×1200mm |
Max. Printing Size | 600 x 900mm |
Max. Screen Frame Size | 800x1200mm |
Max. Substrate Height | 150mm |
Max. Printing Speed | 600pcs/hr |
Air Pressure | 6bar |
Rated Voltage | 220V 50Hz |
Power | 0.75+0.2kw |
Dimension(L×W×H) | 1100×1400×1900mm |
Weight | 500kg(Approx.) |
