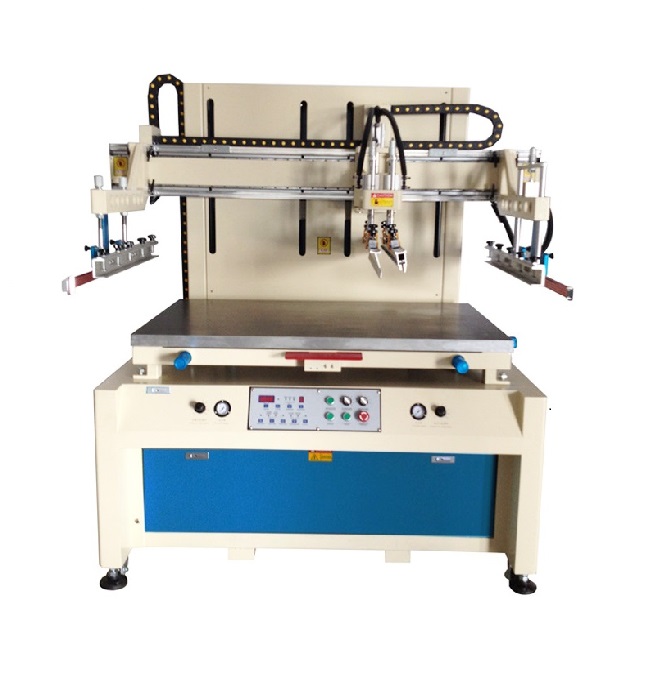

FLAT BED SCREEN PRINTER
US $4000.00 - US $4500.00
Production Lead Time:
15 day(s)
Shipping Method:
BY SEA
Brand:
PRINTSO
Model No.:
PS-4060
Size:
PRINTING SIZE : 580 X 380 mm
Weight:
300KG
Description
Contact Supplier
Description
Features:
Strong & stable screen arm design
Advanced computerized control system
Multi program keys printing programs
User friendly control panel with built-in LED digital counter
Stable and heavy duty ascent / descent screen platform
Diecast strong screen arm
Screen lift up function during printing
Independent vacuum motor ON/OFF control
Angle adjustable squeegee

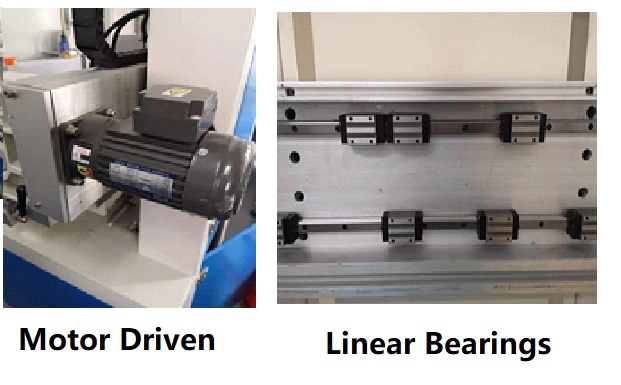

Pneumatic Driven Squeegee & Screen Platform
Safety foot paddle
Anodized aluminum parts
Strong diecast body structure
SPECIFCATIONS | ||||
Model no | : | PS-4060 | ||
No. of color | : | 1 color | ||
Max. printing stroke | : | 600mm | ||
Max. printing area | : | 580 X 380 mm | ||
Motor Vacuum table size | : | 650 x 450mm | ||
Max. screen size | : | 700 x 500mm | ||
Max. speed | : | 12 cycles per min. | ||
Power voltage | : | 100-240V, 50/60Hz | ||
Power consumption | : | 200W | ||
Air pressure | : | 0.5-0.65 Mpa/cm² | ||
Air consumption | : | 14 L/min. | ||
Machine dimension | : | 1080 x 950 x 1660(H)mm | ||
Net weight | : | 300KG | ||
