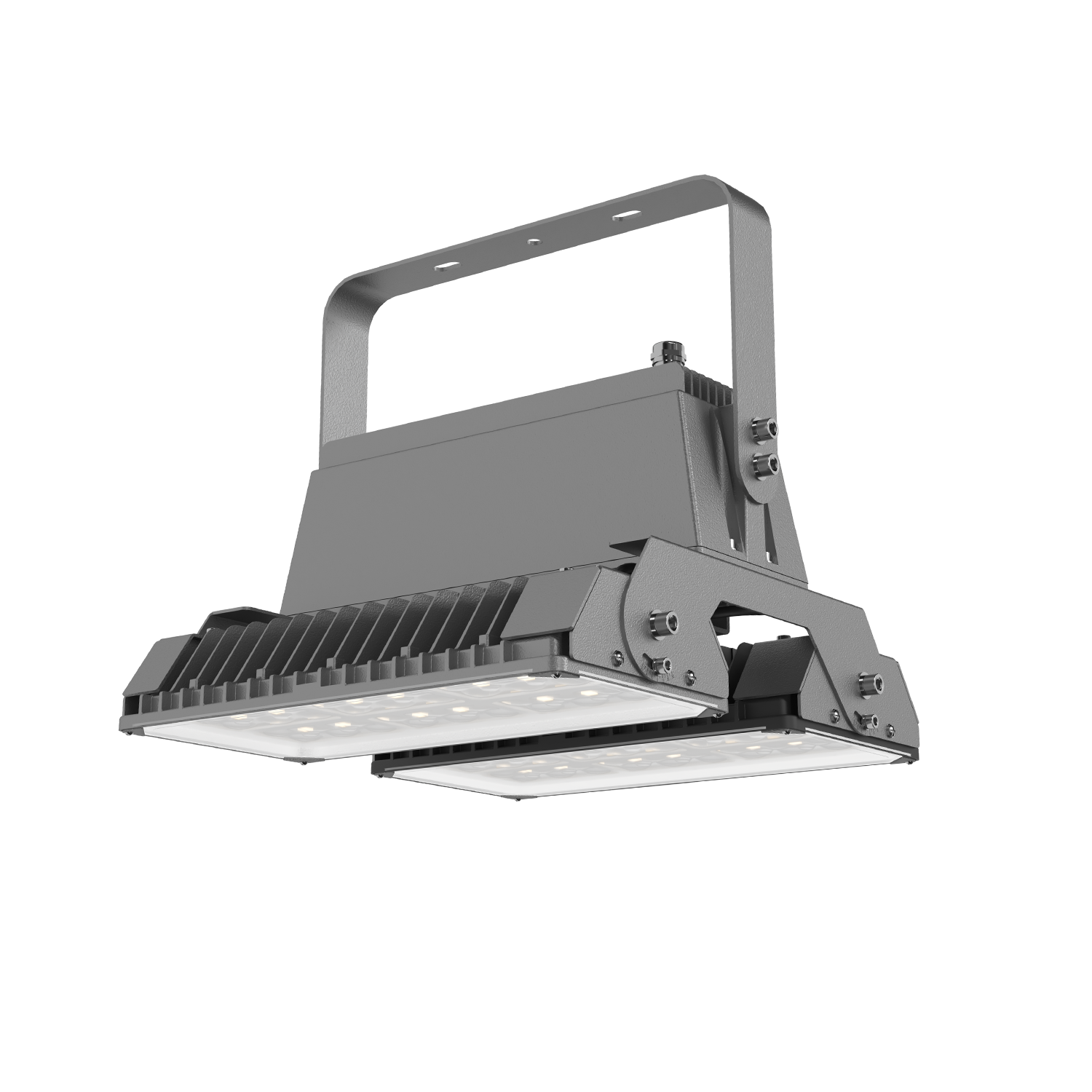

FLDH Series High Temperature LED High Bay Light

Energy-Efficient Industrial Lighting with Modular Design, Adjustable Modules and Smart Dimming Options

Key Features

• High-Temperature Operation: Designed for demanding industrial environments, with operating temperatures from -40°C to +70°C.

• Three Power Options: Available in 100W, 150W and 200W models to meet different industrial lighting requirements.

• High Luminous Efficacy: Delivers up to 175 lm/W at CRI 80 and 4000K, helping improve energy efficiency.

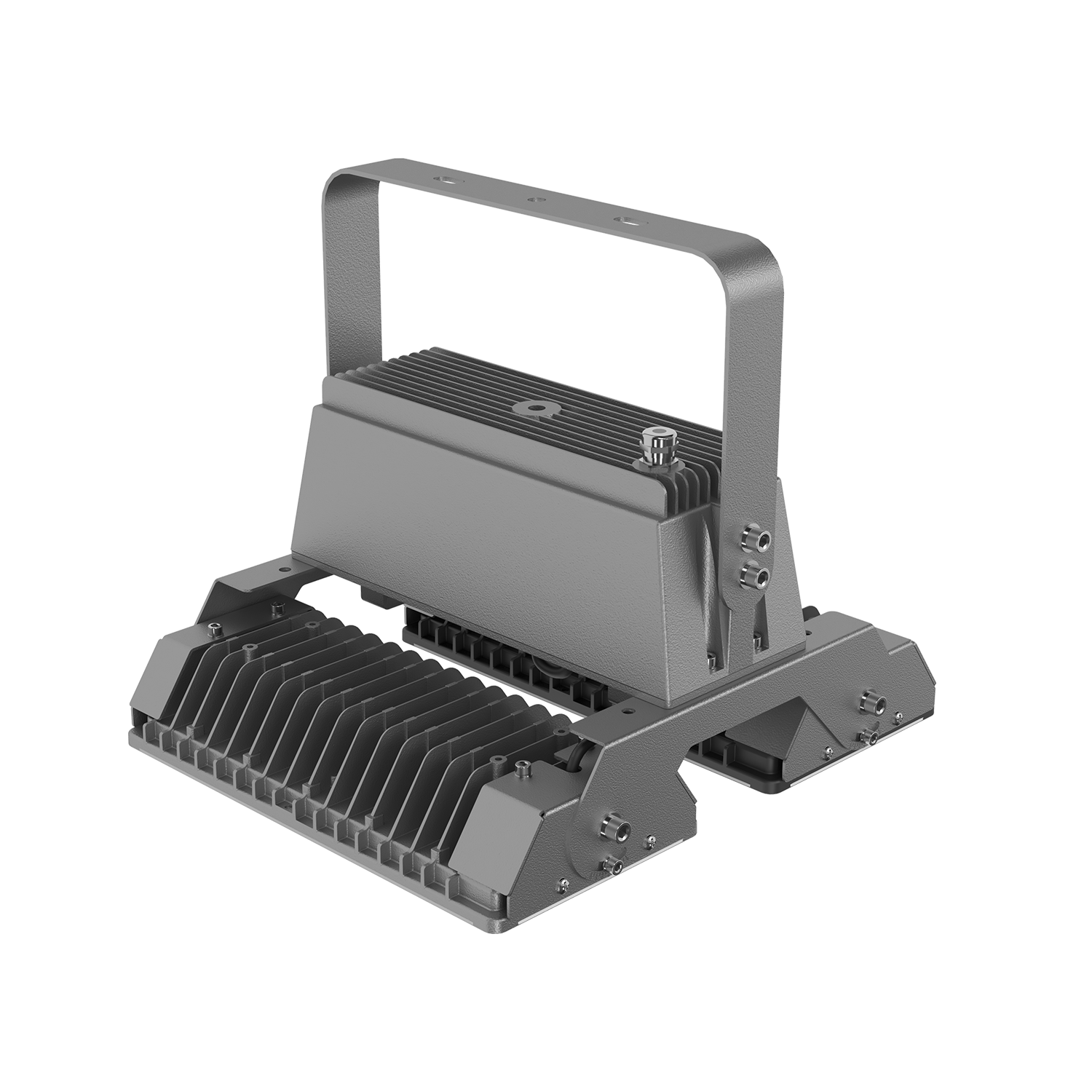

• Modular, Service-Friendly Design: Interchangeable thermal modules support flexible power configurations and simplified maintenance.

• Adjustable Lighting Direction: Rotatable modules provide ±30° adjustment, while the gear-driven mechanism enables precise 5° angle control.

• Uniform Light Distribution: Full-surface glass lens coverage helps reduce glare and uncomfortable hotspots.

• Flexible Dimming Controls: Supports 1–5V, 1–10V, 10V PWM and three types of time control, with optional DALI-2.

• Durable Industrial Construction: Heavy-duty die-cast aluminum housing, IP66/IK08 protection and 3G vibration resistance.

• Zero Uplight: ULOR = 0% at 0° luminaire inclination.

• Long Service Life: Rated L70 lifetime of 100,000 hours at Tq 25°C.

• Flexible Installation: Yoke mounting for practical installation in industrial environments.

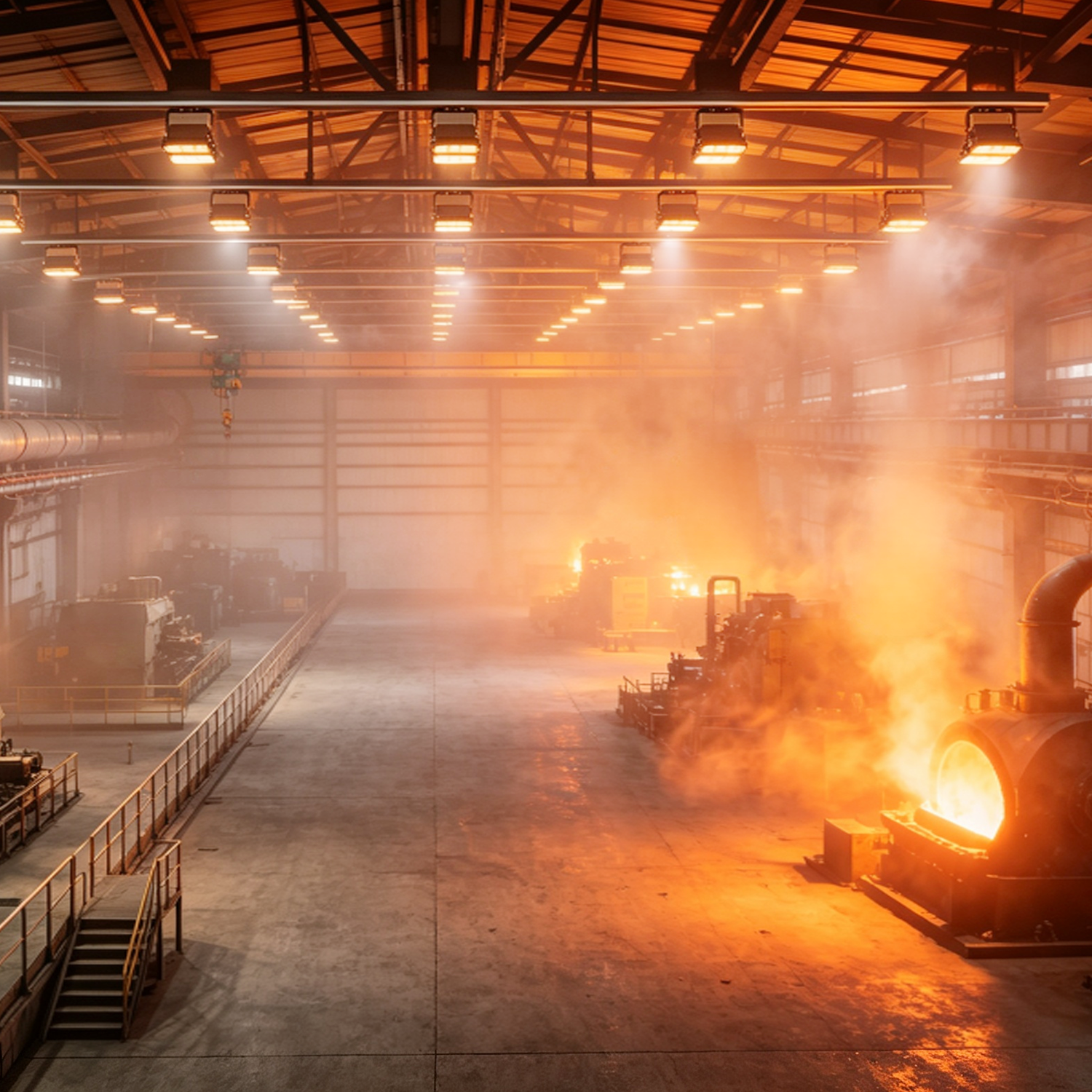

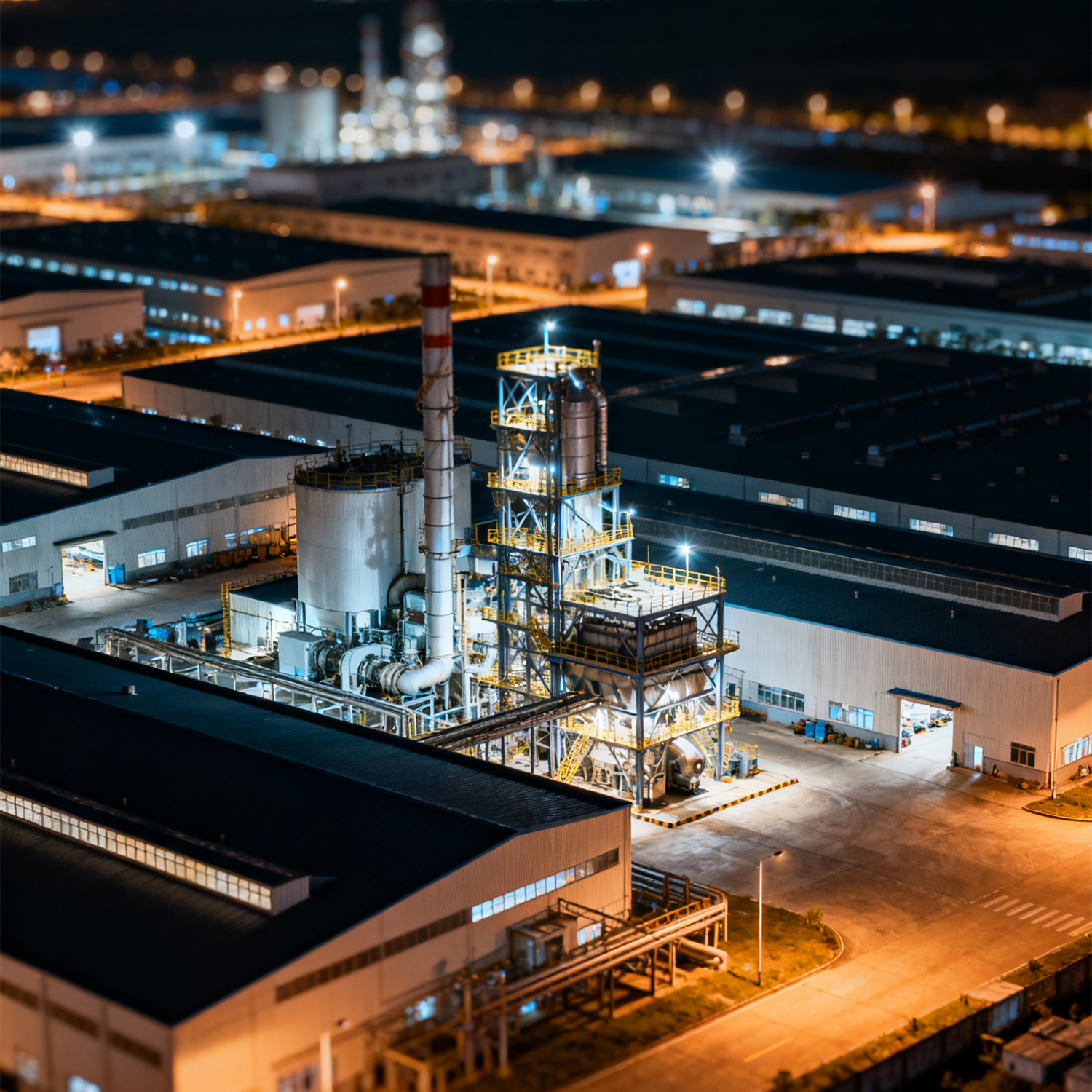

Applications

• Steel plants

• Foundries

• High-temperature production areas

• Heavy manufacturing facilities

• Industrial workshops and production buildings

Warranty

5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
