FR4 PCBA
Production Lead Time:
15 day(s)
Model No.:
Free sample PCBA --ONLITEX
Brand:
Free sample PCBA ---ONLITEX
Colour:
Green
Size:
Customized
Port:
Shenzhen
Type of Payment:
T/T, PayPal
Minimum Order Quantity:
100 piece(s)
Package:
Yes
Customised:
Yes
Board Thickness:
1.6mm
Min. Line Spacing:
0.15mm
Min. Line Width:
0.15mm
Base Material:
FR4
Copper Thickness:
1.0oz
Min. Hole Size:
0.15mm
Surface Finishing:
HASL ,OSP
Description
Contact Supplier
Description
Features:
Specifications:
PCB assembly capabilities:
Trade terms:
- High speed placement.
- BGA and micro BGA capabilities.
- Fine pitch.
- Double-sided SMT.
- Wire harness and cable assembly.
- Competitive price and low cost.
- Component range (0201, 0402, 0603, 0805, 1206).
- Flexible and fast delivery.
- ISO9001, ROHS certified.
- Strict ESD control.
- Rectangular shape.

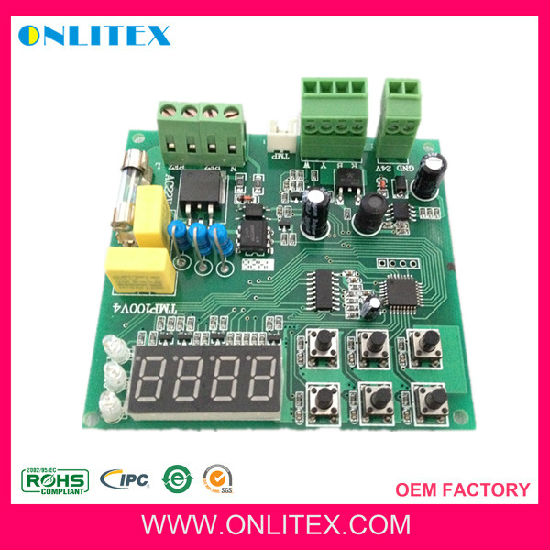

- With a digital display screen and electronic parts on the surface.
- Outstanding craftsmanship.
- High durability.
- Promising a reliable performance.
- OEM/ODM/EMS service available.
- Offer all types of PCBA assembly technologies.

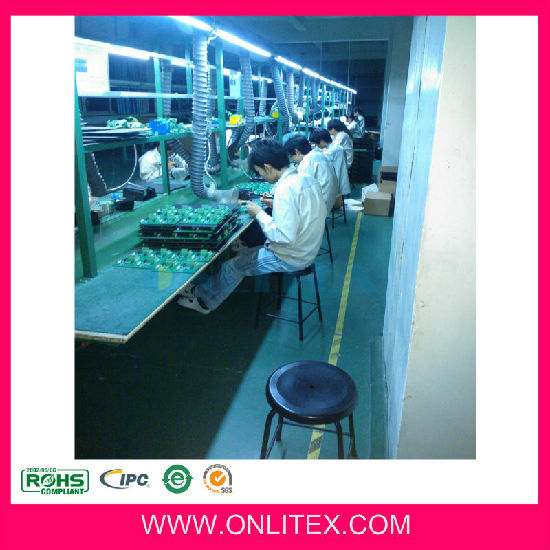

- Also offer manual PCBA assembly and hand soldering.
Specifications:
- Material: FR-4 glass epoxy, FR-4 high TG, ROHS compliant, aluminum, rogers.
- Number of layers: 1, 2, 4 or 6, up to 18 layers.
- Board thickness: 0.2-4.0mm, flex 0.01-0.25mm.
- Copper thickness: 1.0oz to 2.0oz.
- Solder mask: double-sided green LPI, also support red, white, yellow, blue, black.
- Silk screen: double-sided or single-sided in white, yellow, black, or negative.
- Board type: rigid, flexible, rigid-flexible.
- Surface finish: HASL, immersion gold, immersion tin, aluminum.
- Board shape: rectangular, round, slots, cutouts, complex, irregular.
- Max board dimension: 20 inch x 20inch or 500mm x 500mm.
- Board thickness tolerance: ±10%.
PCB assembly capabilities:
- PCB material: FR4.
- PCB layer: 1-12L.
- PCB thickness: 0.2mm-2.4mm.
- Rigid and flexible PCB.

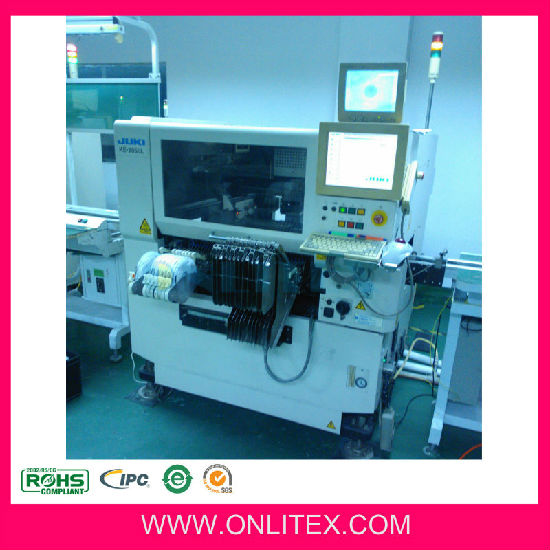

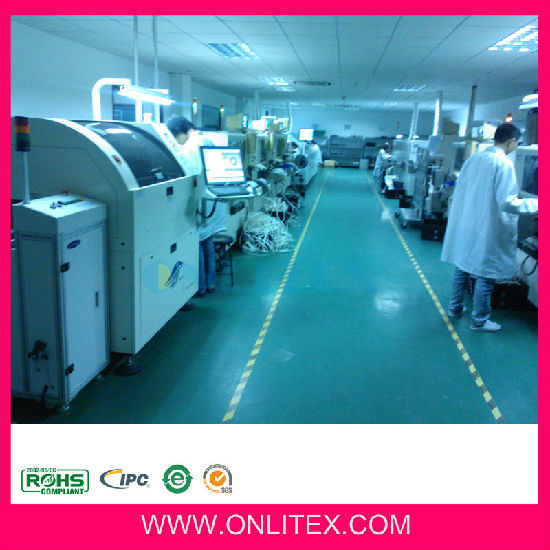

- Three high speed JUKI lines.
- 0201 SMT placement with Micro BGA.
- Double-side PCB assembly.
- Automatic SMT.
- Strict ESD control.
- High speed with high yield offer.
- IPC-A-610 standard.
- 100% function test.
- More than ten years of experience.
Trade terms:
- Payment: T/T, LC, DA, DP, Paypal.
- Lead time: 10 working days for normal products (components less than 100 pieces on PCB board).
- Sample can be available within 8~10working days.
- Shipping freight is quoted under your requests.
- Shipping port: Shenzhen or Hong Kong.
- Discount is offered at large order quantities.
