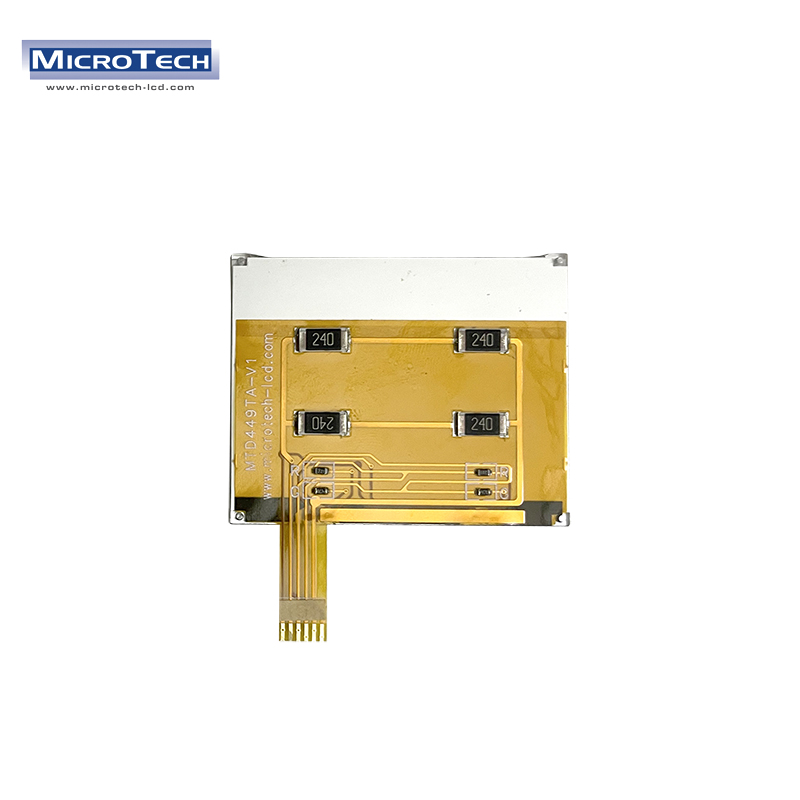

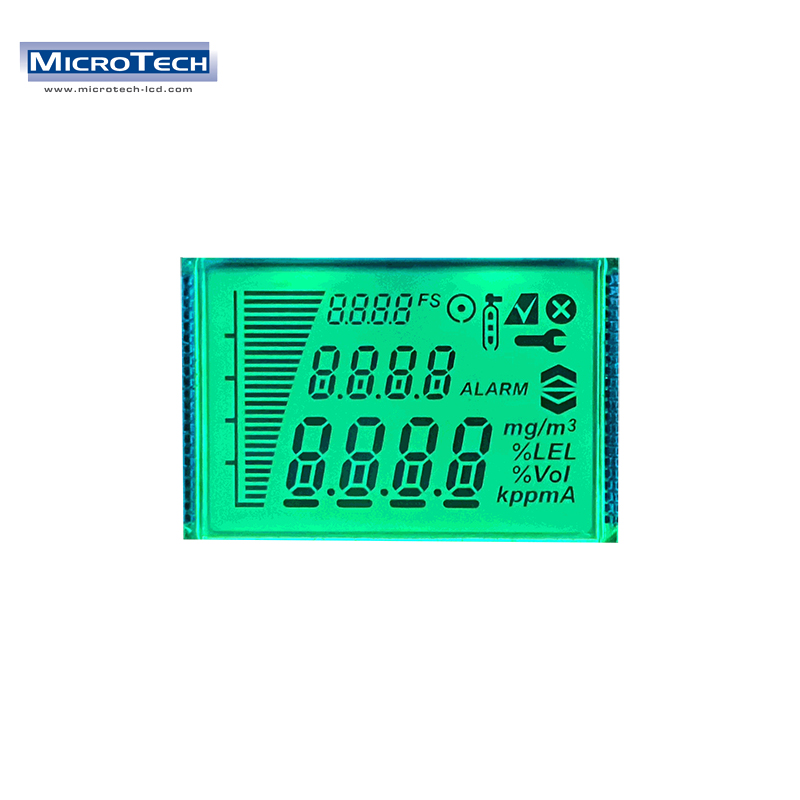

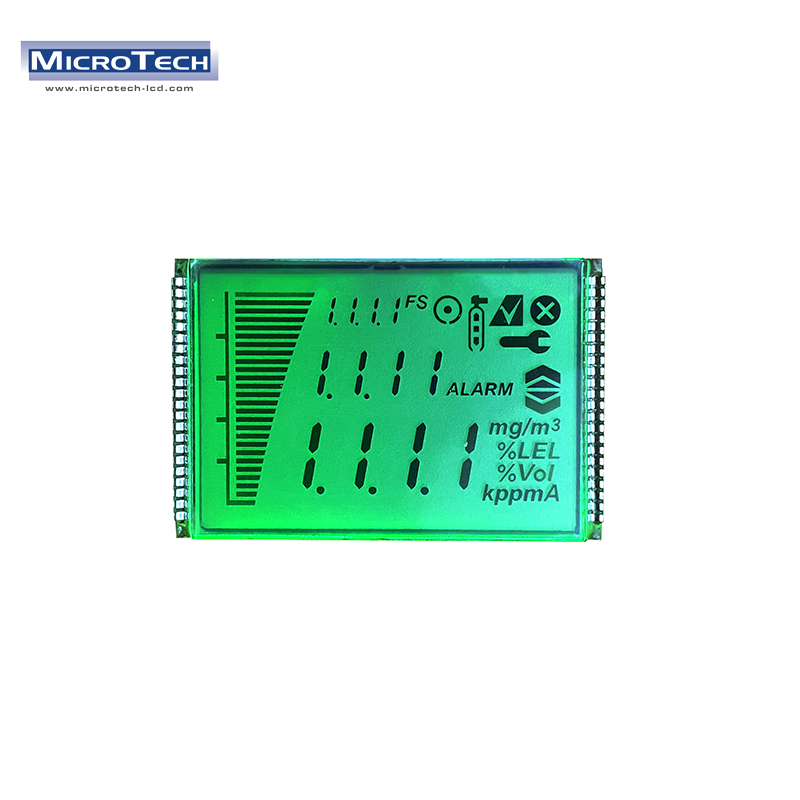

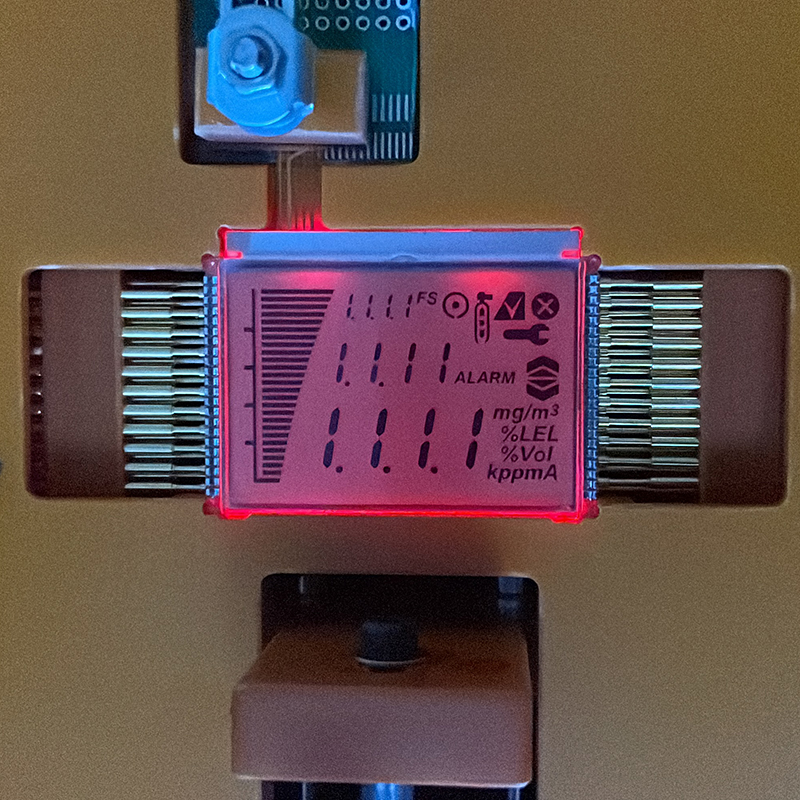

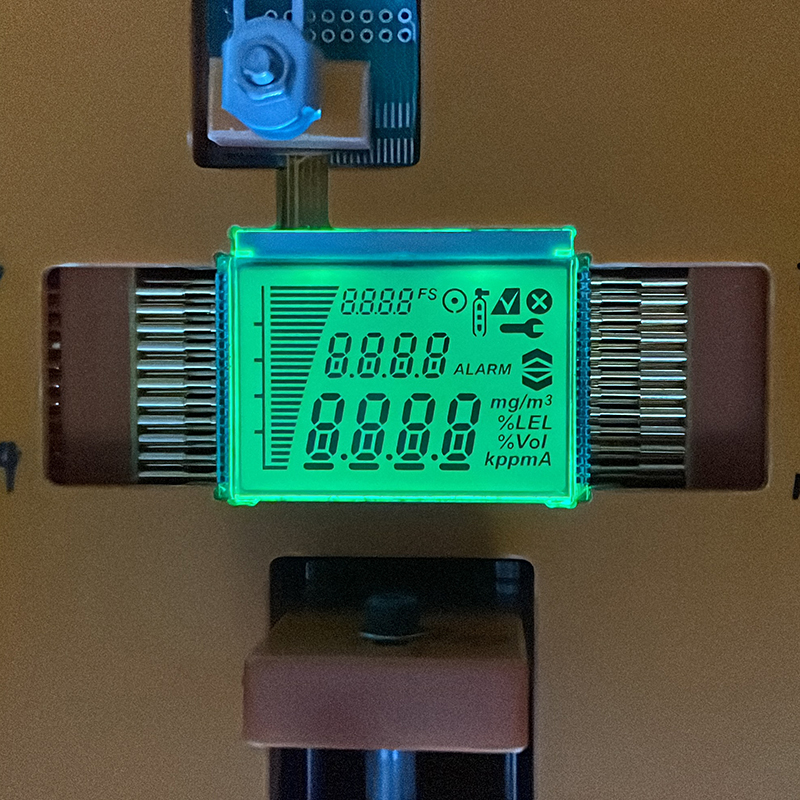

FSTN blue/green/red backlight low temperature gas measuring instrument display

US $8.00 - US $9.00

Production Lead Time:

25 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTD449TA-V1

Customised:

Yes

Description

Contact Supplier

FSTN blue/green/red backlight low temperature gas measuring instrument display

FRONT POLARIZER	TRANSMISSIVE,ADHESIVE
BACK POLARIZER	TRANSFLECTIVE,ADHESIVE
DISPLAY MODE	FSTN POSITIVE MODE
DRIVE CONDITION	1/4 DUTY,1/3 BIAS,DRIVING VOLTAGE 3.0V
OPERATING TEMP	-20℃ TO+80℃ (custom)
STORAGE TEMP	-30℃ TO+90℃ (custom)
VIEWING DIRECTION	6 O'CLOCK
FRAME FREQUENCY	64HZ
CONNECTOR	PIN
