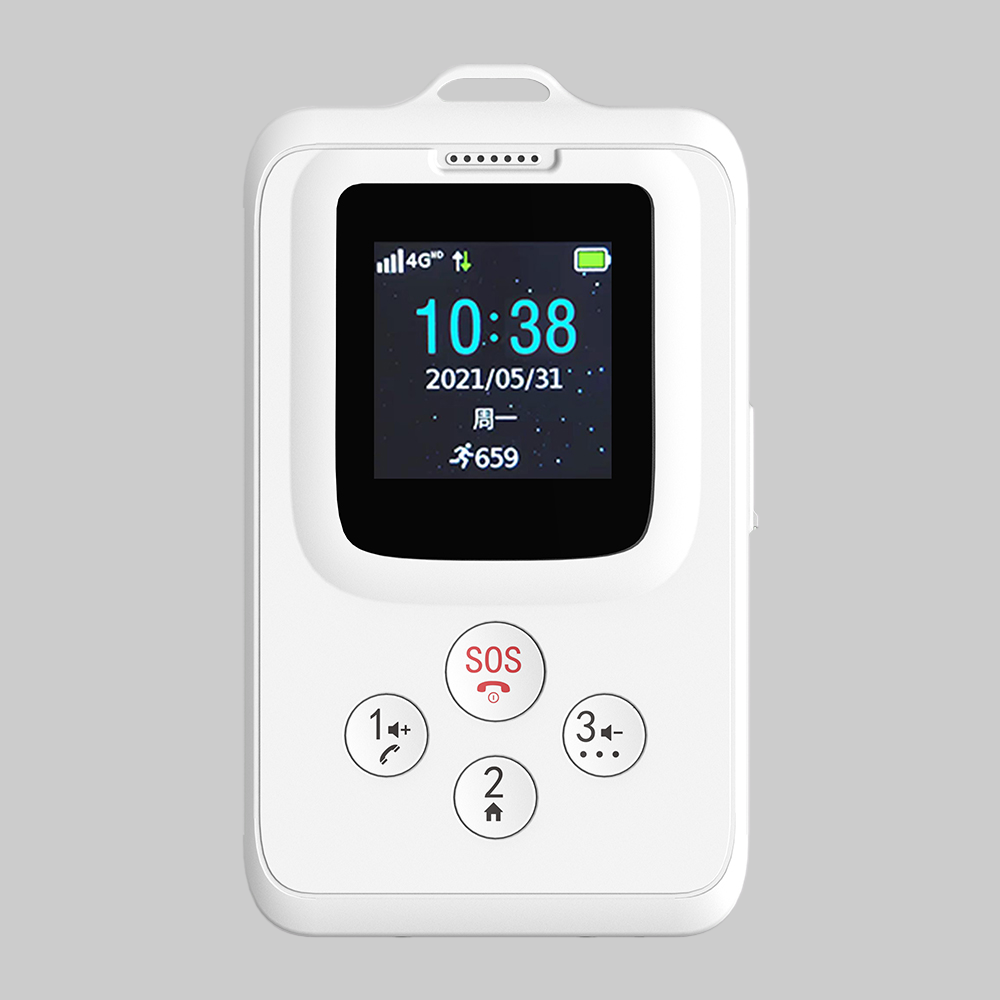

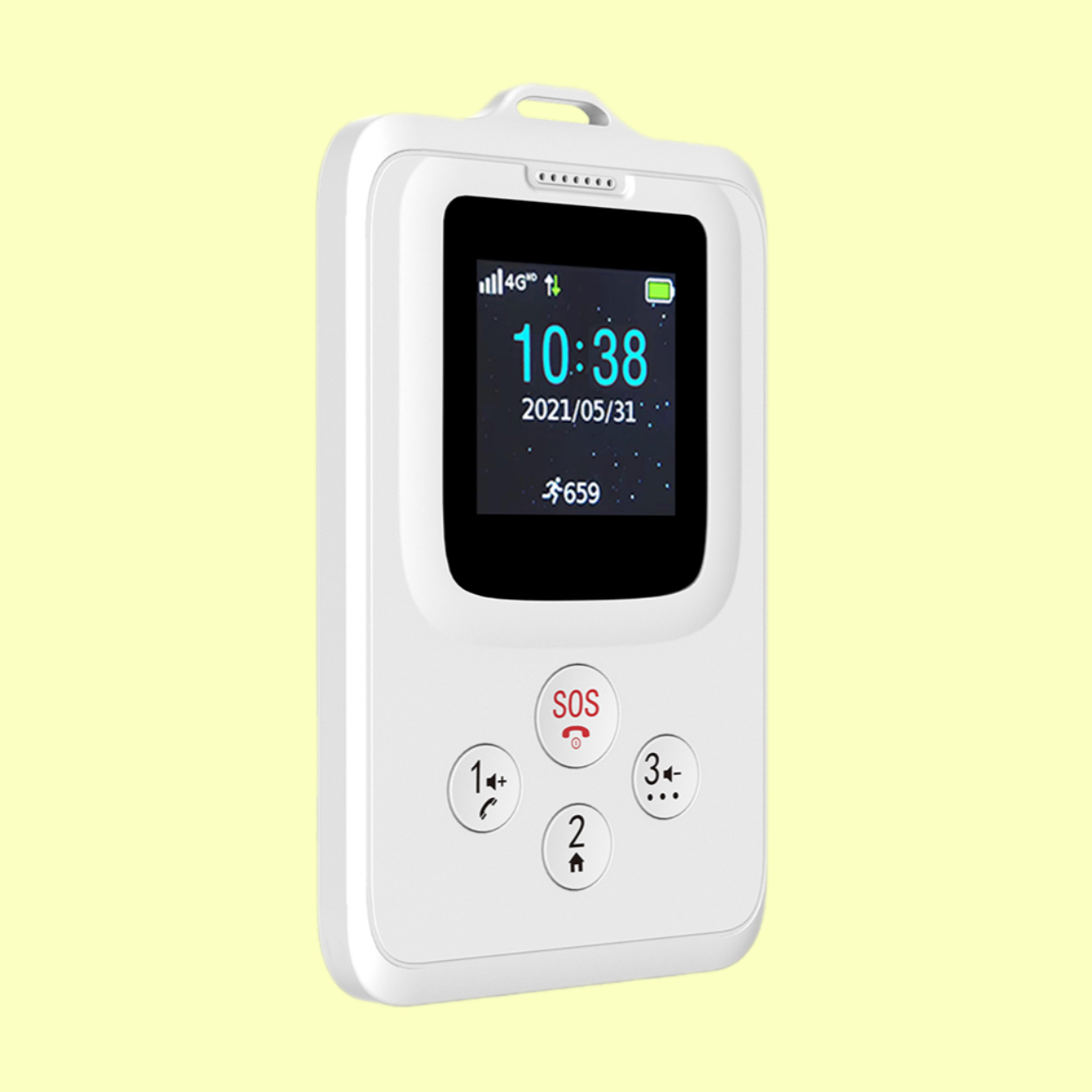

Factory 4G LTE Mini GPS Tracker Campus
Production Lead Time:
30 day(s)
Shipping Method:
Air shipment, Sea shipment, Express shipment
Brand:
ODM/OEM
Model No.:
KT27S
Size:
101.8*53.4*12mm
Weight:
About 58g
Power Source:
Rechargeable Battery
Frequency Band:
4G FULL NETWORK
USB port :
Type-C
IP rating:
IP65
Description
Contact Supplier
Description
Parameter | Index | |
Whole machine | Material | ABS matte surface |
Color | White | |
Product Size | 101.8*53.4*12mm | |
Weight (bare weight) | About 58g | |
Appearance design | Straight type | |
Standard/frequency band | LTE | Wireless 4G |
Module | Working frequency | TD-LTE：B39/B40/B41 LTE FDD：B1/B3/B5/B8 |
Transmit power | 23dBm±2.7dB | |
Receive sensitivity | ≦-96dB | |
System parameters | CPU | Main frequency 832MHz |
RAM | 128Mb | |
ROM | 128Mb | |
Ability | CAT1 | |
Processor | ASR3603 | |
Interface | USB | Type-C |
Position | Positioning mode | Beidou+GPS+AGPS+Wi-Fi Scan+base station |
Satellite positioning accuracy | <10 meters | |
Button | Qty | 4 |
Service life | >2 million times | |
NFC RFID antenna/13.56MHz RFID card | Card type | NFC chipset ISO/IEC 14443-2/3/4 TYPE A, ISO/IEC 7816-4 |
Card distance | 0～30mm | |
Battery | Type | Lithium polymer battery |
Capacity | 1500mAh | |
Work and standby | Standby time: >85days Talk time: >3 hours Charging time: about 3 hours | |
Accessory | Accessory | Charging cable, manual, card removal pin, lanyard |
Other | Working humidity | 10%～95%(no condensation) |
Atmospheric pressure | 86～106Kpa | |
Operating temperature | -20℃～+50℃ | |
Company Profile
- Founded in 1996
- 100+ R&D engineers, hundreds of patents
- Self-owned SMT & Assembly lines
- Leading designer and manufacturer of FWPs, Android desk phones, CPEs, Outdoor payphones, Electronic student ID cards, Landline phones
- Long-term partnership with China Mobile, China Unicom and China Telecom
- Products being shipped to more than 50 overseas channel buyers and operators
Certificates
Packages&Delivery
FAQ
1. Are you a MANUFACTURER? Yes, we are founded in 1996, located in Weihai , Shandong , please watch our company introduction video at home page.
2. Do you support SMALL ORDERS?
Yes, no matter how small the order is, we can accept it. After all, big orders start from small ones. We are very glad to grow with you.
3. Do you have CERTIFICATES?
Yes, we have CE, FCC, RoHs, EPR and WEEE certificates. If you need other certificates, we can also assist you to complete them together.
4. What is your DELIVERY TIME?
In general, it need 30 business days, of course, the quantity and requirements of the order will also affect the delivery time, but we will treat each order with heart and do our best to deliver the goods for you as soon as possible. 5. What is your PAYMENT TERMS?
We support L/C, T/T, Western Union and Paypal.
6. Do you support CUSTOMIZATION?
Yes, we can customize packaging, logo, hardware and software. Please email us for more details.
