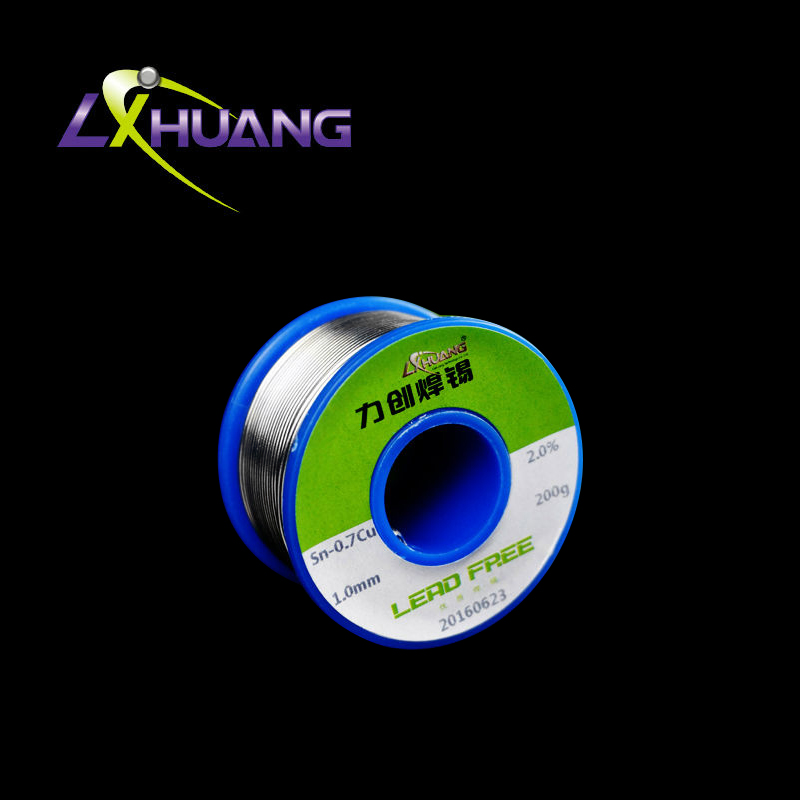

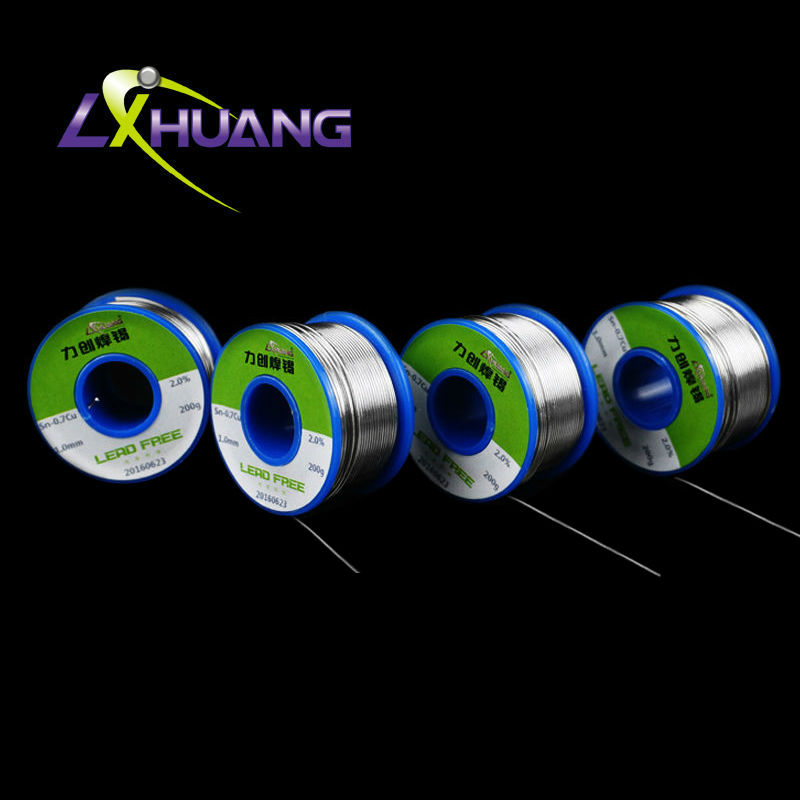

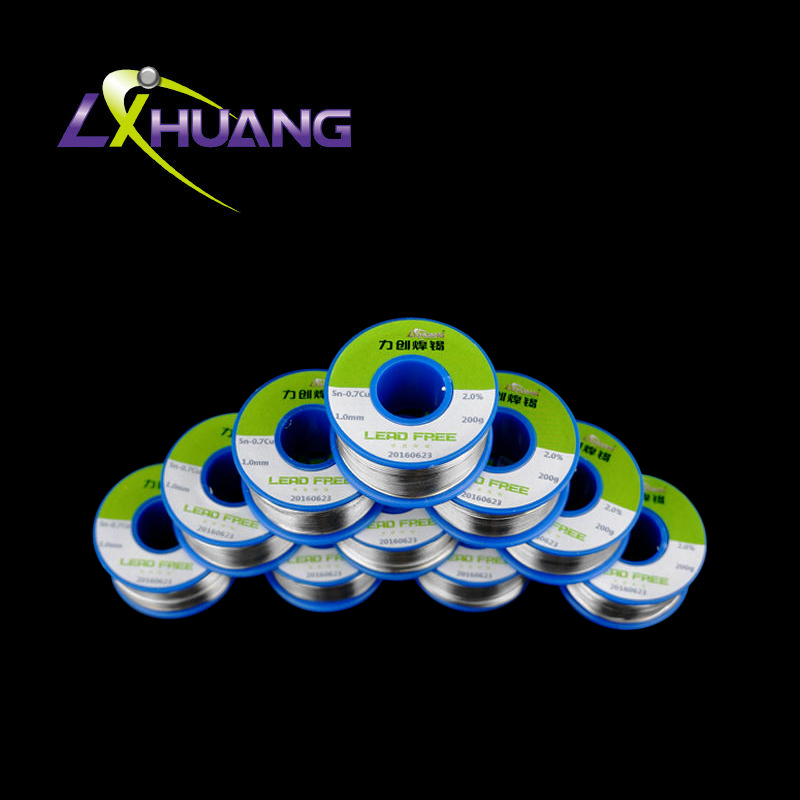

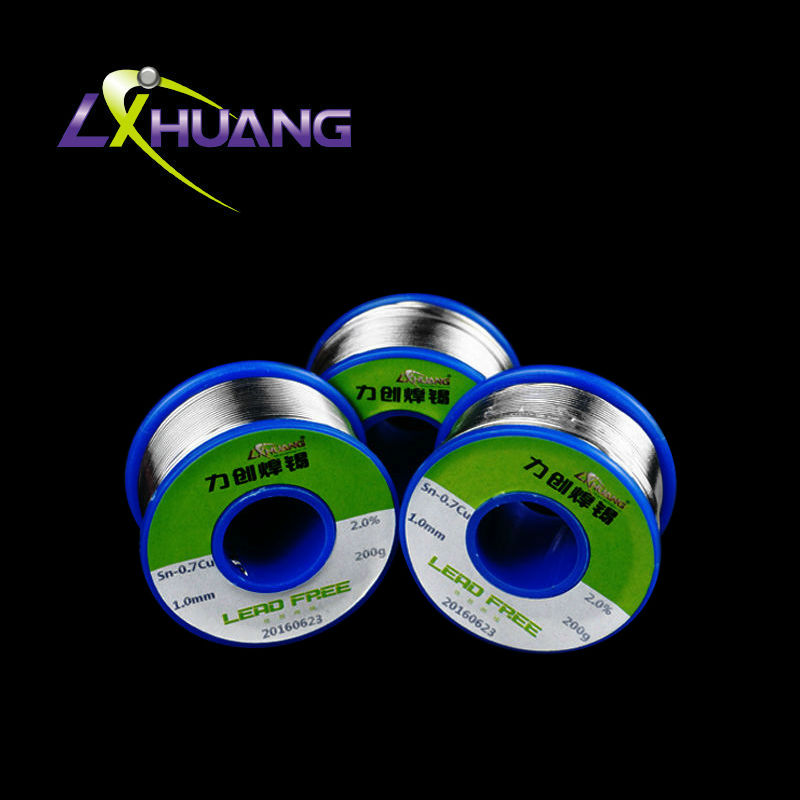

Factory Offer No Lead Solder Wire
Production Lead Time:
3 day(s)
Brand:
lichuang
Colour:
Silver
Size:
500 gram(s)/rol(s)
Port:
Huangpu, Guangzhou
Type of Payment:
T/T, L/C
Minimum Order Quantity:
200
Type:
Alloy, Tin
Customised:
Yes
Shape:
Roll, Wire
Description
Contact Supplier
Description
- Melting Point: 217-227oC
- Flux content: 2.0%-2.2%
- Standard range: 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm
- Offering range: 0.5-3.0mm
- Certificate: SGS
- 1. High-performance soldering flux , fast melting speed, good fluidity and quick speed to coat with tin.
- 2. Lower soldering flux spatter rate during soldering.
- 3. Soldering flux is evenly distribution with good continuity.
- 4. Very little smoke and smell gas.
- 5. Inhibit the cracking of solder joints, copper corrosion and the growth of interface alloy layer.
- 6. Little residue, no corrosion, high insulation resistance and no-clean solder wire.
- 7. Surface bright ,no dirt.
Lead free solder wire classify:
- Lead free alloy solder
- Fusion temperature°C
- Tensile
- Strength(Mpa)
- Elongation%
- Rate of
- Expansion %
- Applicable
- Sn-0.7Cu
- 227
- 32.2
- 50
- 25
- Manual soldering
- wave soldering
- Sn-1.5Cu
- 227
- 30
- 48
- 25
- Manual soldering
- Sn-3.0Cu
- 227-300
- 30
- 42
- 25
- Manual soldering
- Sn-3.8Ag-0.7Cu
- 216-220
- 47.7
- 38
- 28-32
- Wave soldering
- manual soldering SMT
- Sn-3.0Ag-0.5Cu
- 216-227
- 37
- 32
- 25
- Wave soldering
- Manual soldering SMT
- Sn-0.3Ag-0.7Cu
- 216-227
- 27
- 40
- 25
- Wave soldering ,
- Manual soldering SMT
- Sn-5Sb
- 240-243
- 39.2
- 50
- 25
- High temperature soldering
- Sn-58Bi
- 212-216
- 76.5
- 27
- 34-36
- Wave soldering ,
- Manual soldering SMT
- Sn99.99
- 232
- 28
- 55
- 25
- Electric plating
- Soldering in TV set, radio or normal home appliances
- Repair of normal home appliances and audio facilities
- Soldering in radio transponder, instrument and calculator and so on
