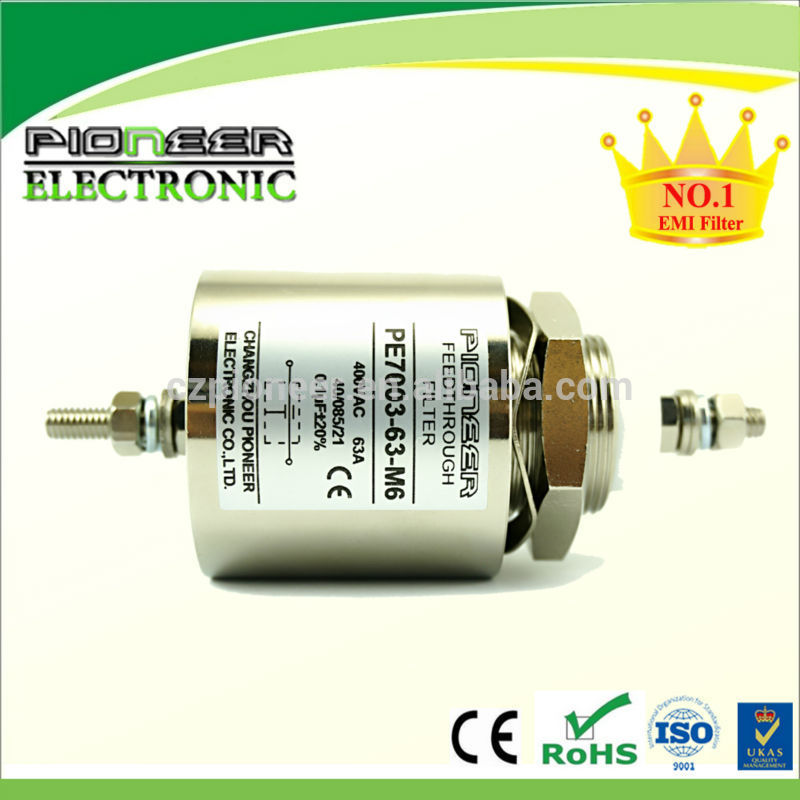

Feedthrough EMI Line Filter for Shielding
Share this page
Model No.:
PE7003-63-M6
Brand:
changzhou pioneer
Colour:
Silver, White
Package:
Yes
Customised:
Yes
Type:
EMC Filter - Electromagnetic Compatible Filter
Nominal Center Frequency:
50/60Hz
Insertion Loss:
100db
Installation Type:
Through Hole
Transfer Function:
Low Pass
Description
Contact Supplier
Description
  • PE7003-63-M6 1~250A feedthrough EMI line filter for shielding
  • Features:
  • Feedthrough capacitors offer a high insertion loss a broad of frequencies from a few  tens of kHz up to the GHz region
  • Very low internal series inductance
  • Very high self-resonant frequency
  • Self-healing dielectric
  • High quality and reliability
  • Through-bulkhead mounting
  • Anti-twist protection
  • Typical Application:
  • Switching and cellular equipment
  • Computer servers
  • UPS power supplies
  • Increasing system and information security
  • AC Power line filter for 250VAC power lines
  • DC Power line filter for 480VDC battery power
  • Power supplies
  • Medical equipment
  • Shielded rooms
  • Specification:
  • Rated Voltage:80/250VDC
  • Rated Current:1A~250A
  • Operating Frequency: DC
  • Temperature range: HPF 40/085/56
  • Test Voltage(1 min):
  • 250VAC@50/60Hz
  • 80VDC~600VDC
