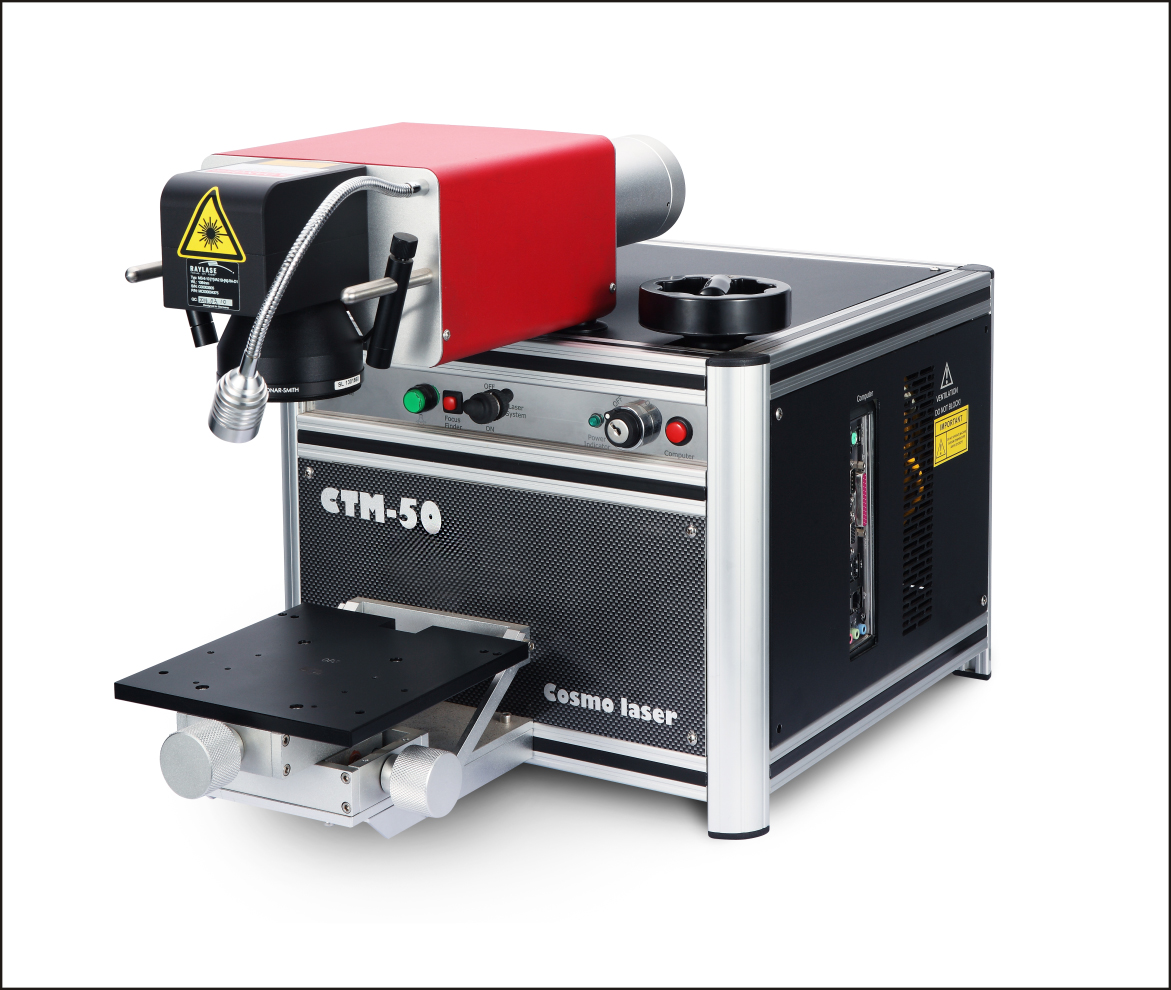

Fiber Laser Marking Machine
US $4000.00 - US $15000.00
Production Lead Time:
14 day(s)
产品型号:
CTM-50
Brand:
COSMO LASER
Description
Contact Supplier
Description
1. Uses high quality imported laser source and scanner.
2. Fully enclosed air-cooled laser system.
3. Average laser life span of 100,000 hours.
4. Built-in cpmputer system. Table top design. Takes up minimum space.
5. WINDOWS based marking software. Able to mark all WINDOWS compatible fonts and languages.
6. Marking software is compatible with most picture formats like AI, PLT, DXF, BMP, JPEG etc.
7. Support auto-coding, serial number, batch number, date, bar codes.
8. Able to mark metal materials and non-metal materials.
9. Able to mark continuous 360° rings, bracelets and other cylindrical objects with the rotating device.
Applicable Industry:
Jewellery accessories, eyeglasses, clocks and watches, hardware, tools, accessories, sanitary ware, ceramic plastic, PVC, phone keypad, electronic components, integrated circuits IC, precision equipment, medical equipment, etc.
Product Specifications:
| Laser source : | Ytterbium Fiber Laser |
| Laser power : | 50W |
| Wavelength : | 1070nm |
| Beam quality M2 : | 1.2 |
| Laser Lifespan : | 100,000 hours (average) |
| Laser frequency : | 20-200KHz |
| Minimum line width : | 0.02mm |
| Minimum character size : | 0.2mm |
| Repeatability : | 0.001mm |
| Marking area : | 100×100(mm) (standard), 50×50 or 150×150(mm) (optional) |
| Cooling system : | Built-in air cool |
| Marking table : | X , Y and Z axis table |
| Marking Depth : | Up to 1mm |
| Marking speed : | ≤7000mm / s |
| Max.power consumption : | 800W |
| Power supply : | 220V / 60Hz / 1P / 4A or 110V / 50Hz / 1P / 8A |
| Machine dimensions(L×W×H) : | 380×410×300 (mm) |
| Weight, Nett / Gross : | 35 / 50Kg |
*Our products undergo continuous improvements. This information is based on current
knowledge. We reserve the right to make changes without prior notice. Errors excepted.
