Fiber Optic Cable
US $8.85 - US $9.80
Production Lead Time:
15 day(s)
Shipping Method:
Express
Brand:
Minar
Model No.:
MSOF-6*7-1.0/SK
Fiber Strands:
42pcs of SK-40
Active Diameter:
8.0mm
Outer Diameter:
12mm
Reel:
100m/rl
Material:
PVC and PMMA
Warranty:
2 Years
Description
Contact Supplier
Description

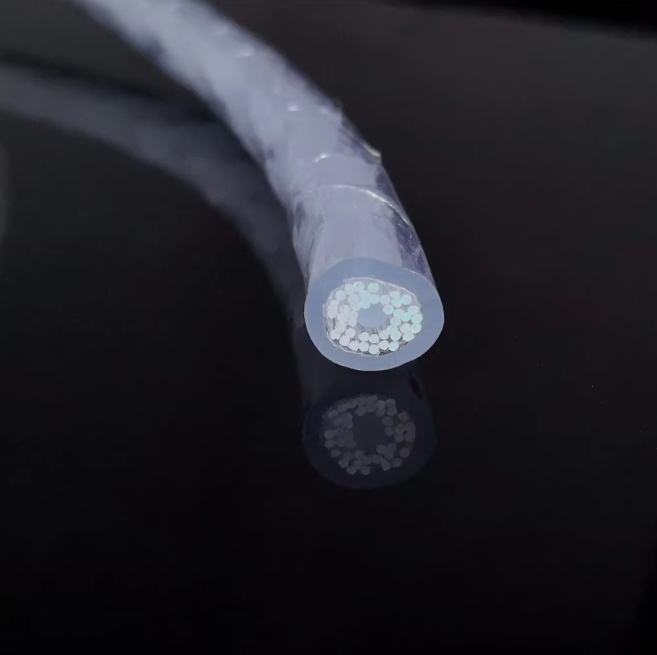

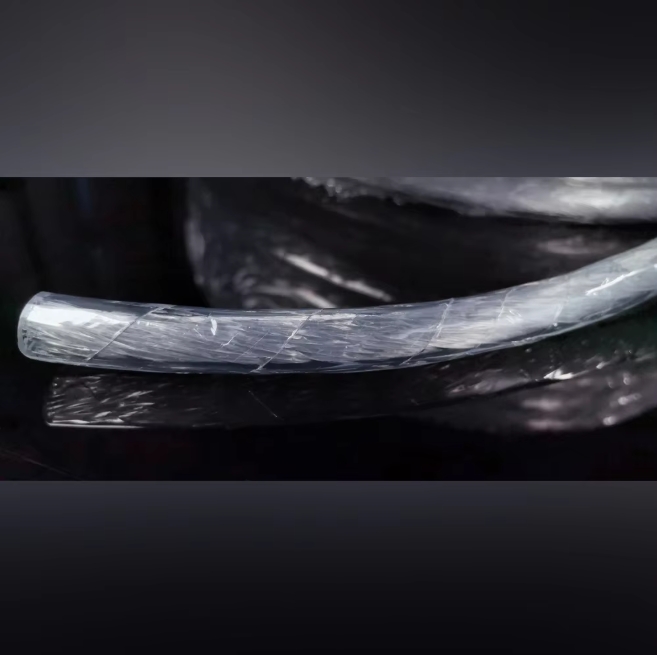

Inside the treated PVC sheath are multi-strands of Mitsubishi ESKA SK-40 (dia.: 1.0mm) or CK-30 (dia.: 0.75MM) in a sub-bundle of 6pcs or 7pcs twisted around a highly reflective PVC internal core within a clear PVC sheath to achieve maximum side-emitting light output. The combination of the stranded structure and the best Mitusbisih fiber strands give the fiber cable superior side lighting performance.

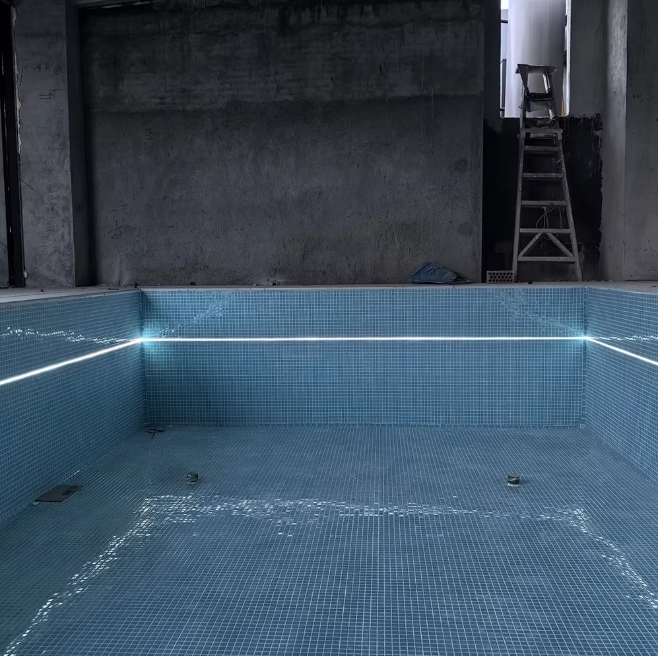

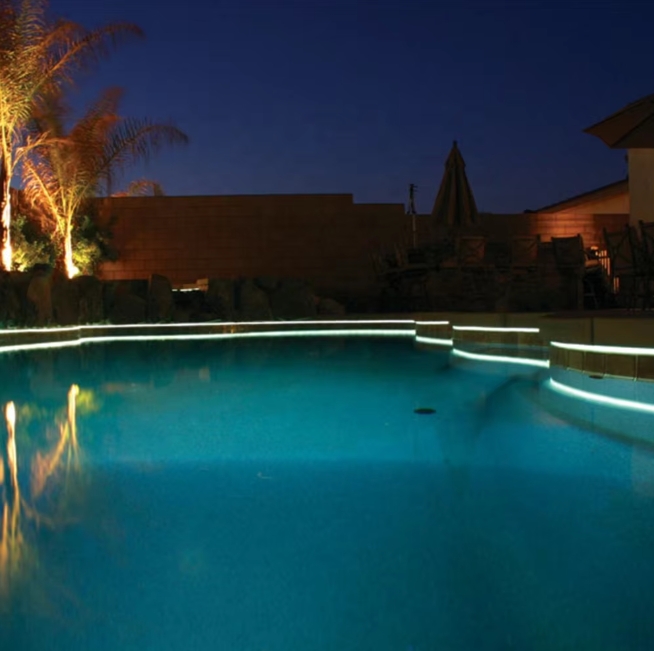

The fiber cable is the ideal choice to highlight the perimeter of the swimming pools, decks, and wet areas.
Specification:
| Item Number | MSOF-6*7-1.0/SK |
| Core | 42pcs of 1.0mm fiber strands |
| Outer Jacket | Treated clear PVC tube |
| Active Diameter | 8.0mm |
| Outside Diameter (O.D.) | 12mm |

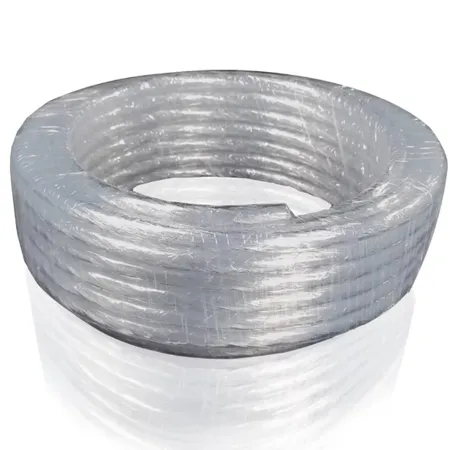

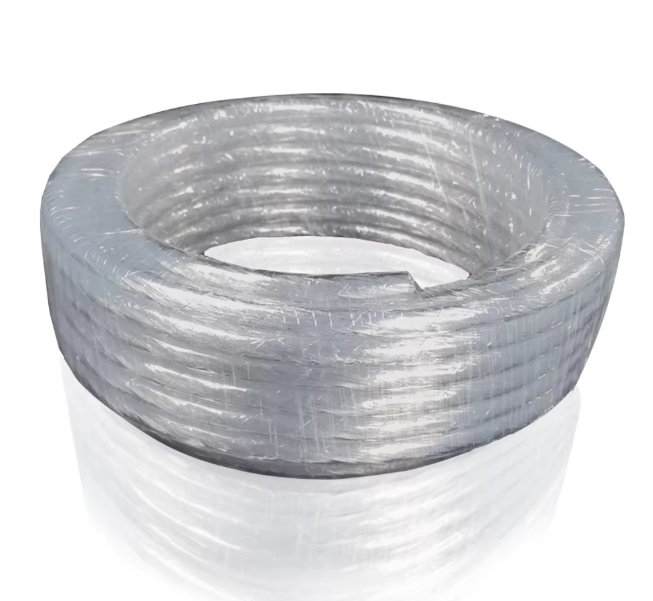

| Spool Length | 100 meters |
| Minimum Bending Radius | 72mm |
| Acceptance Angle: 50° | 50° |
| Numeric Aperture | 0.60 |
| Attenuation | ≤0.15dB/M (SK) |
| Operating Temperature Range | Minimum: -20°C |
| Maximum: 70°C |
